To fit

  1. Fit the sensor to the bracket by screwing in the screws.

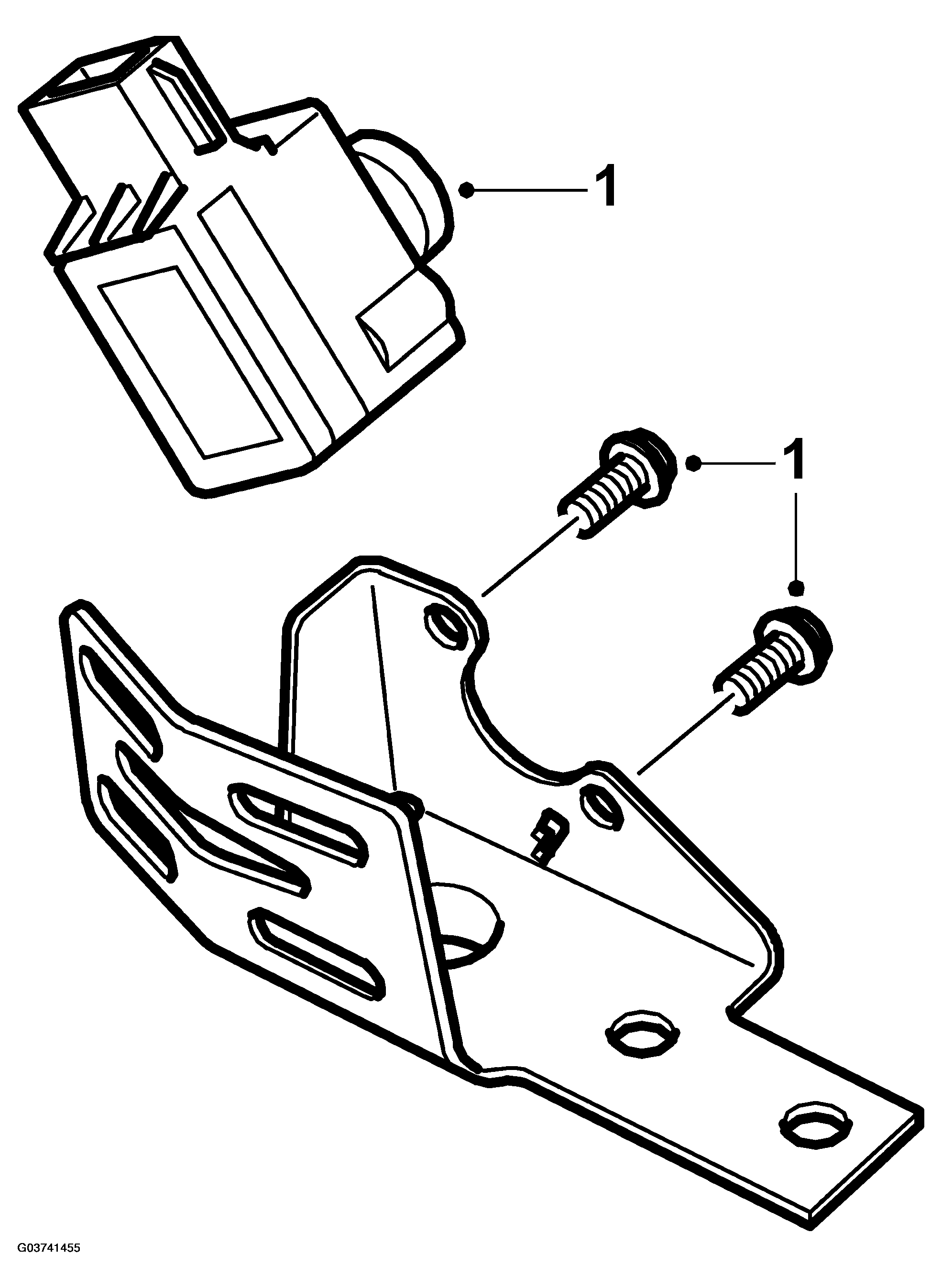

    Fig 1: Fitting Load Angle Sensor (Front)
    G03741455Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the screws and bracket with level sensor.

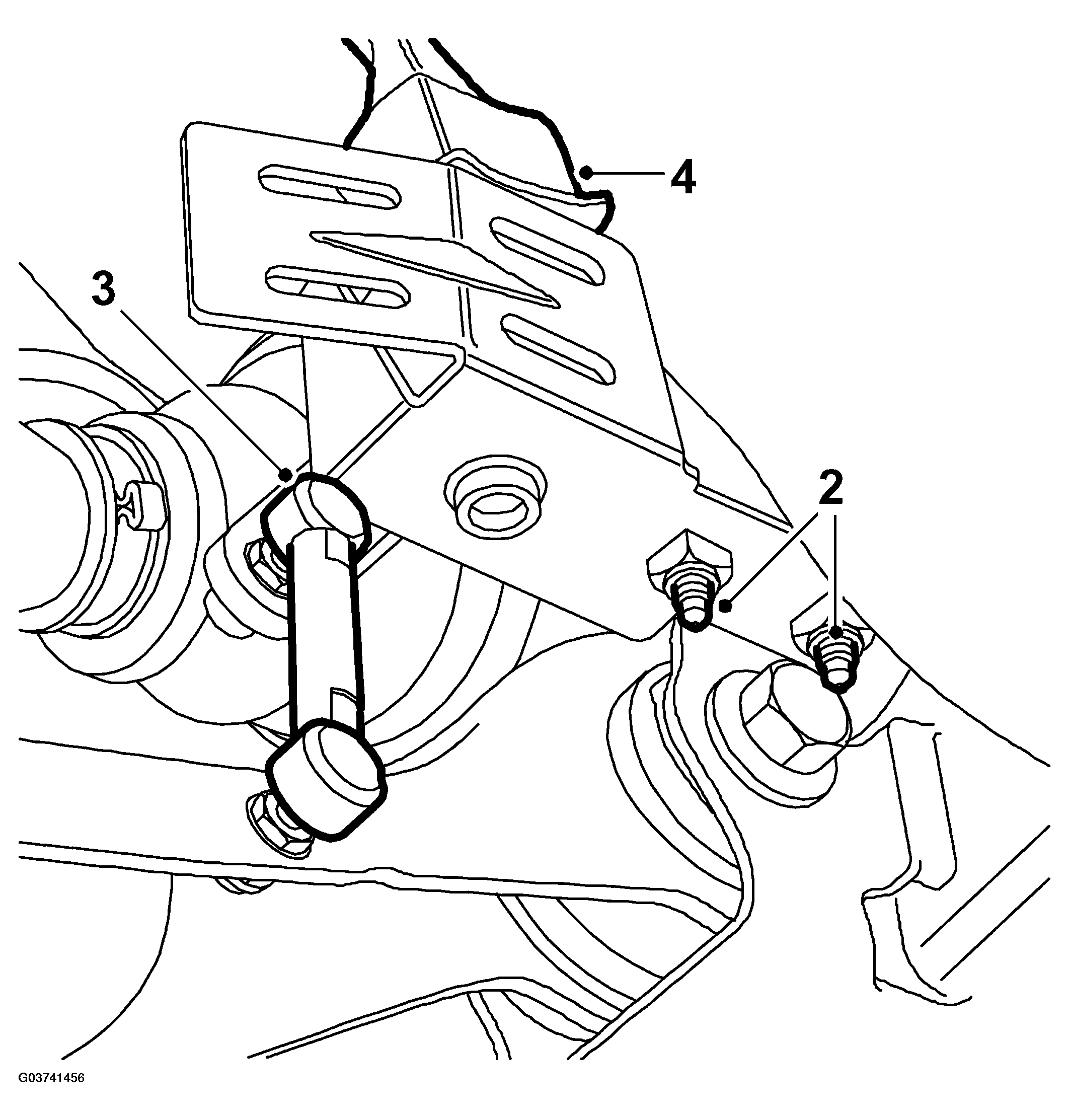

    Fig 2: Illustration For Steps 2 To 4
    G03741456Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the link arm ball joint.
  4. Plug in the connector.
  5. Fit the belt cover.
  6. Calibrate both AHL control modules, see XENON LIGHTING SYSTEM, CALIBRATION  .
