Control module, PMM (611)

LHD

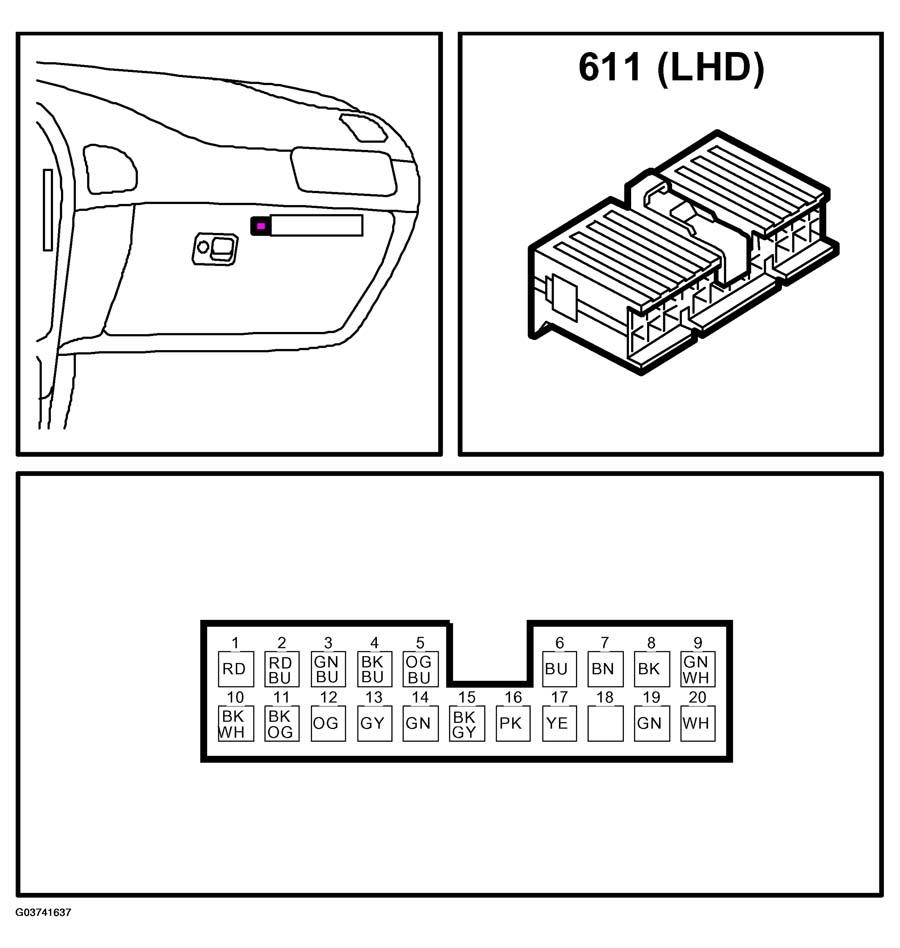

Fig 1: Identifying Connector Location - Control Module, PMM (611) LHD
G03741637Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

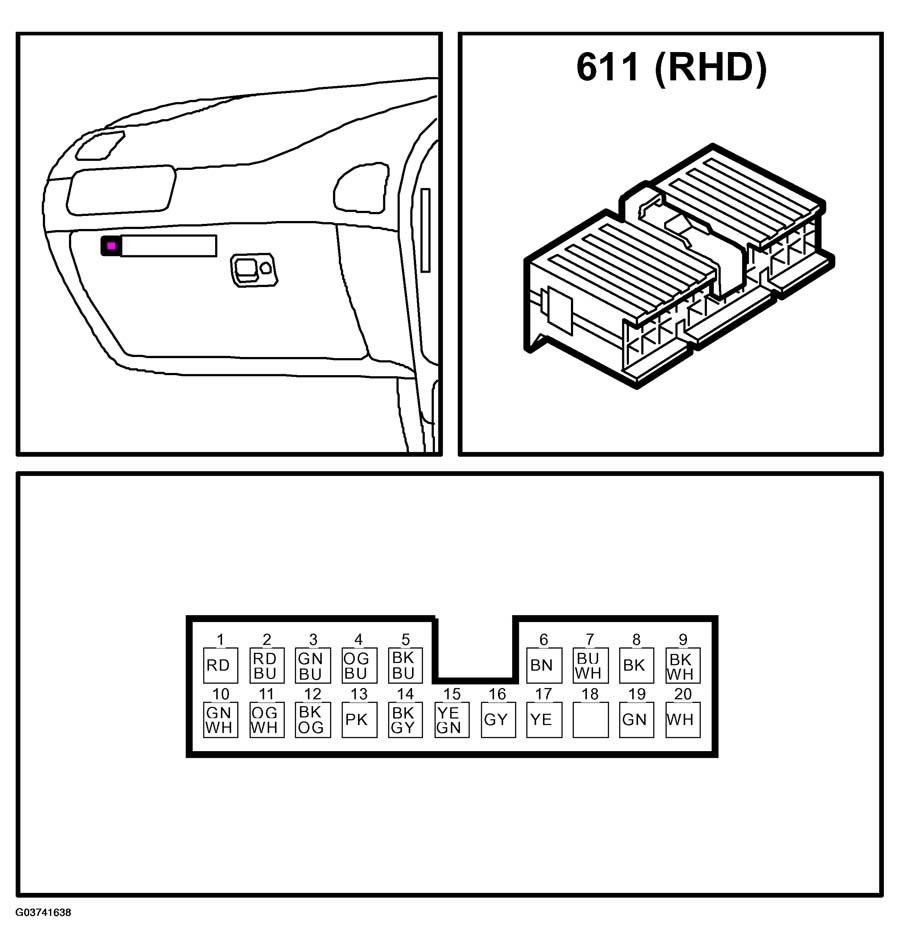

Fig 2: Identifying Connector Location - Control Module, PMM (611) RHD
G03741638Courtesy of SAAB-SCANIA OF AMERICA, INC.
