Grounding point G5: Notes

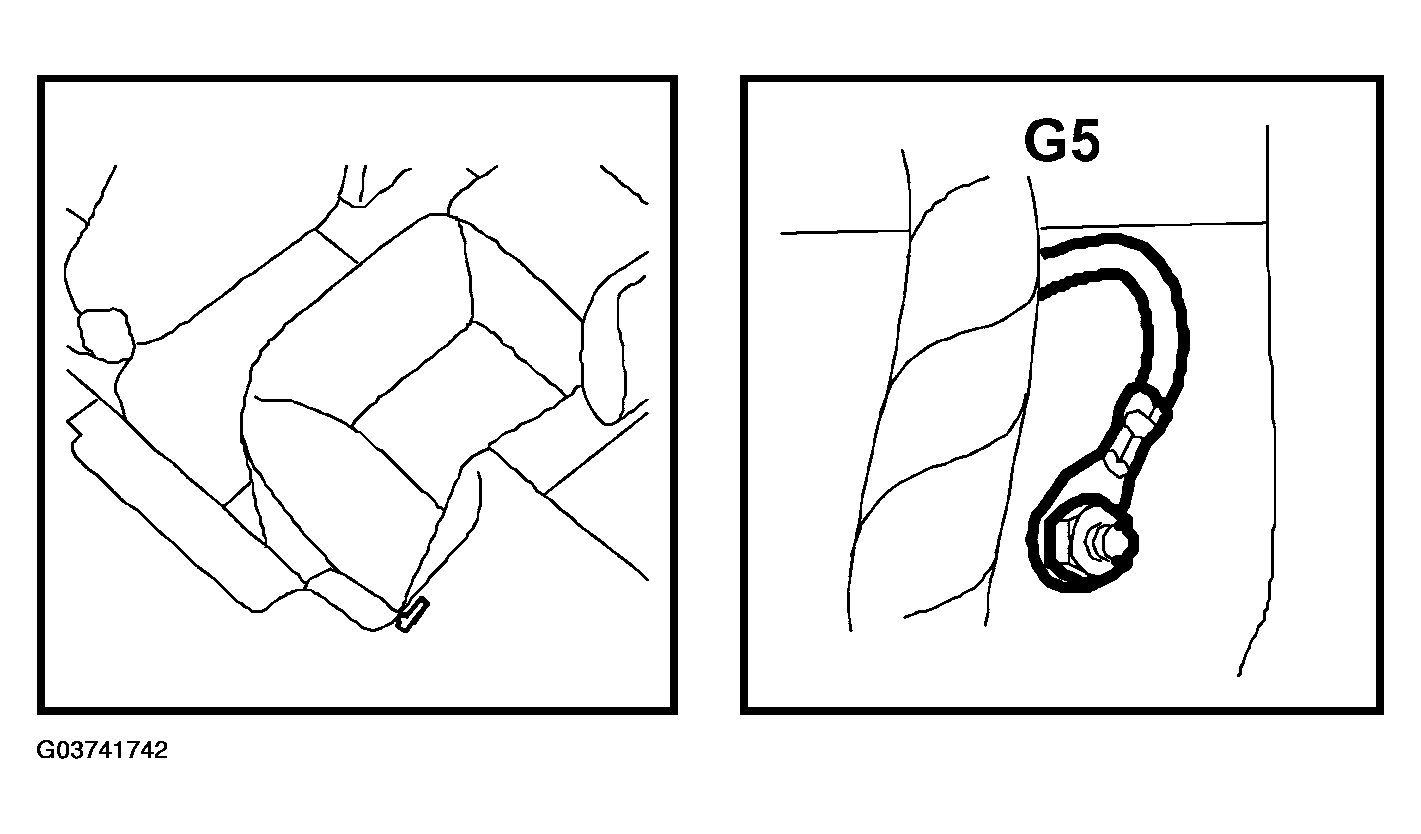

Fig 1: Identifying Grounding Point G5
G03741742Courtesy of SAAB-SCANIA OF AMERICA, INC.

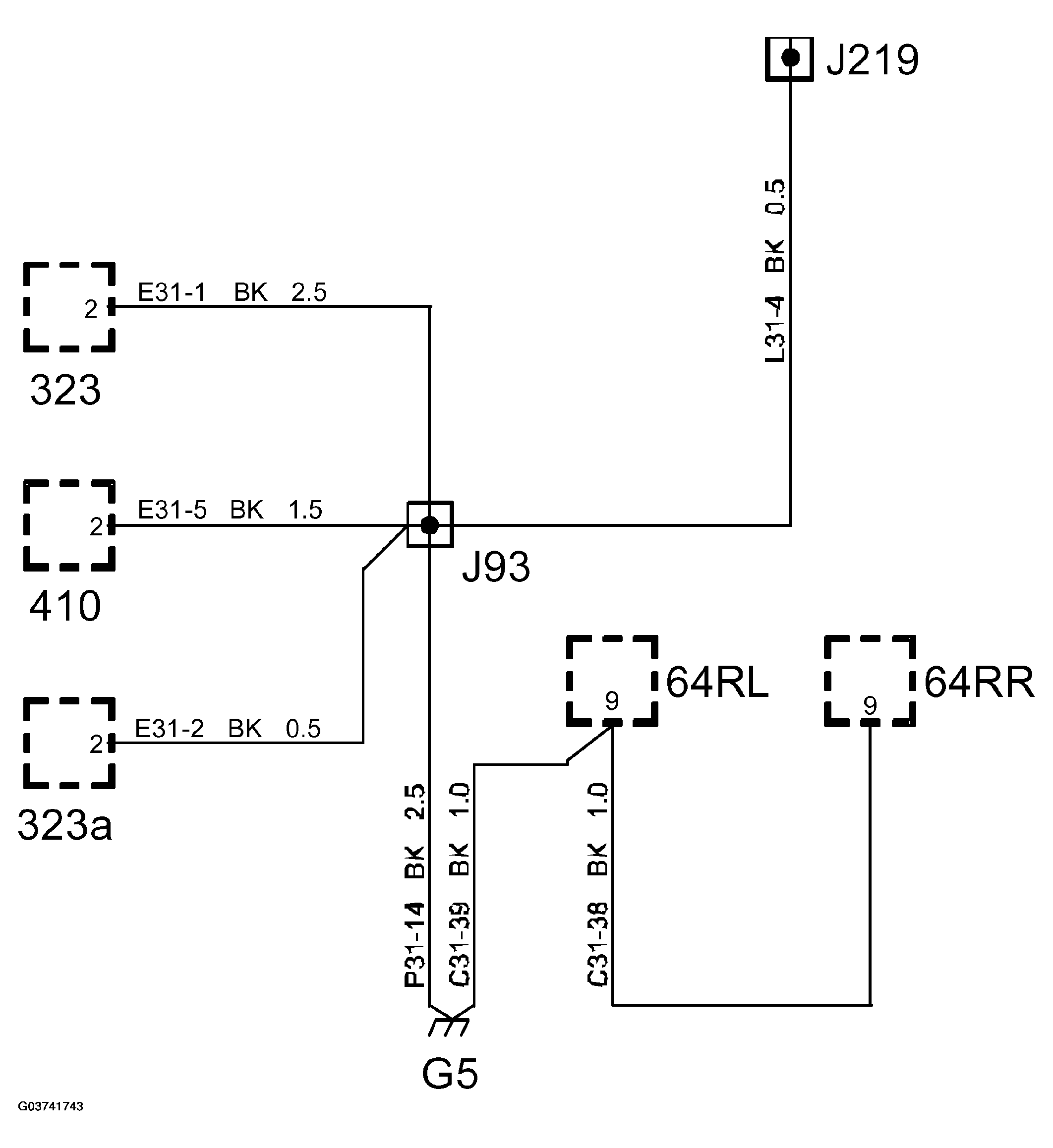

Fig 2: Wiring Diagram - Grounding Point G5
G03741743Courtesy of SAAB-SCANIA OF AMERICA, INC.
