Technical Data: Horn

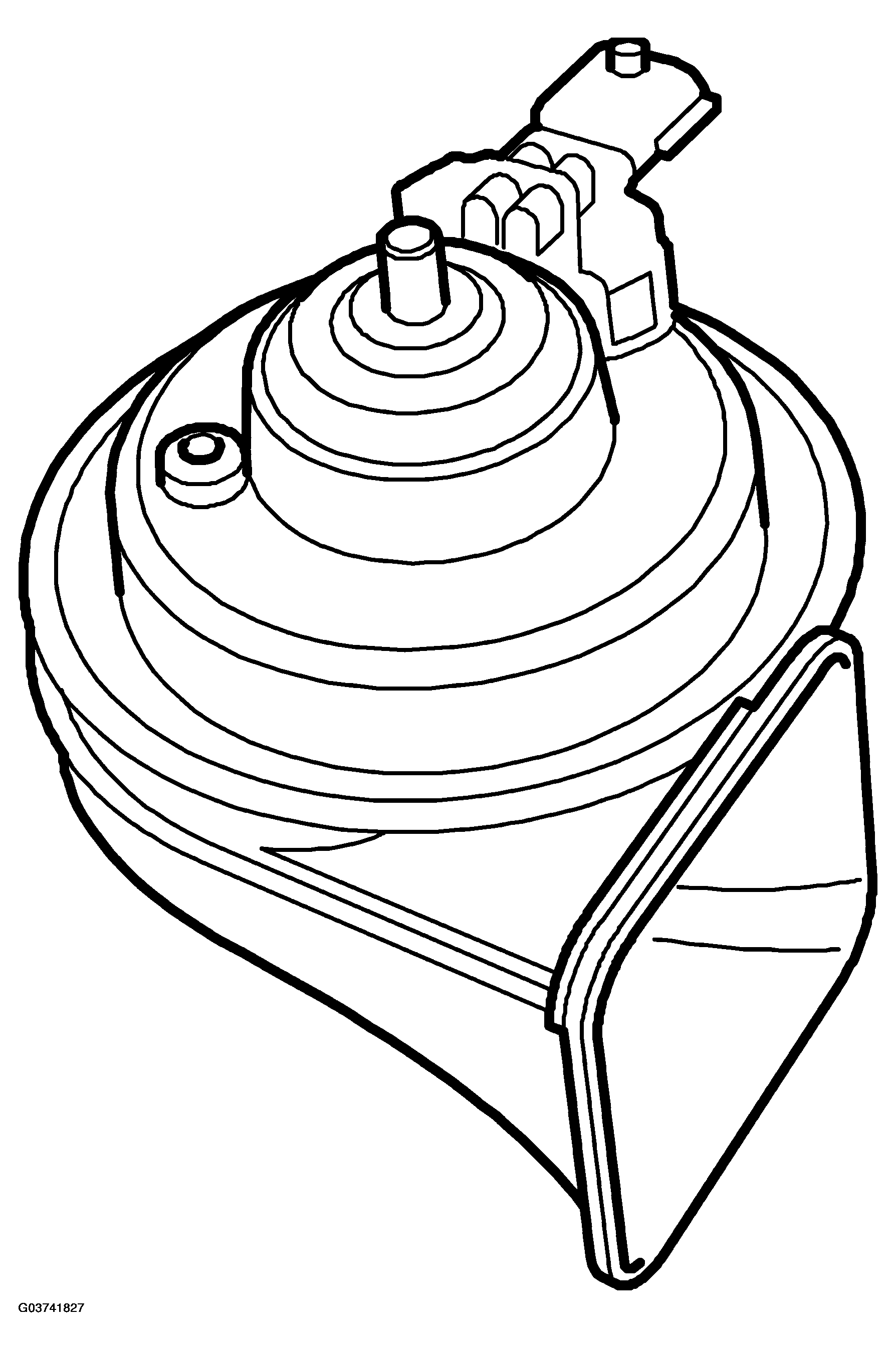

Fig 1: View Of Horn
G03741827Courtesy of SAAB-SCANIA OF AMERICA, INC.
HORN SPECIFICATIONS

Manufacturer FIAMM
Frequency:
  • low tone
  • high tone
 400 Hz
500 Hz
Current consumption, continuous 6 A
