Technical Description: Horn: Notes

Two trumpet-type horns are mounted behind the grille under the radiator crossmember. The horn switch is located in the middle of the steering wheel.

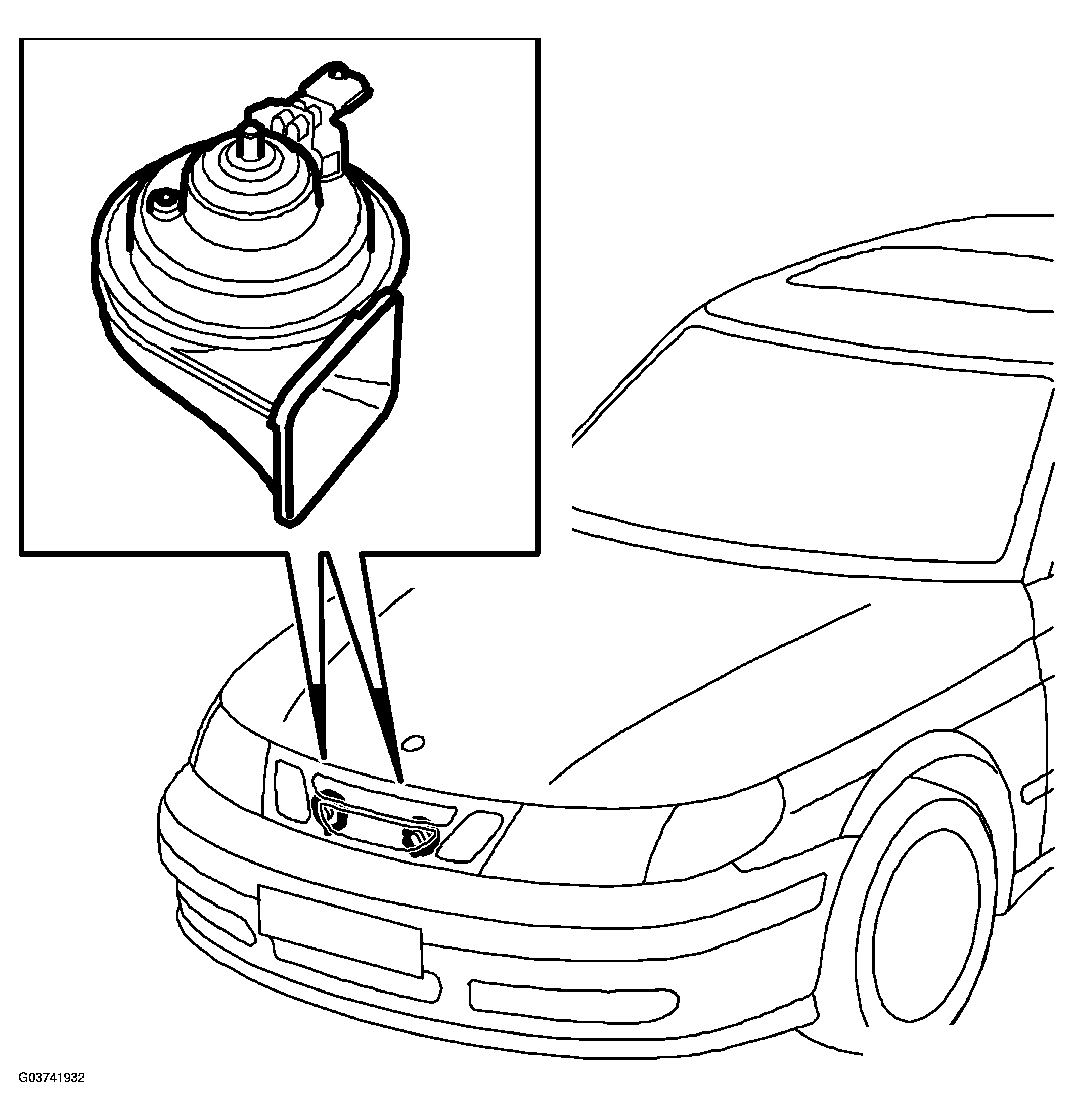

Fig 1: Identifying Horn
G03741932Courtesy of SAAB-SCANIA OF AMERICA, INC.

The horns are tuned to different frequencies. They are respectively marked with H and L to denote high and low frequency.
