Torque and power graphs: B205E
150hp

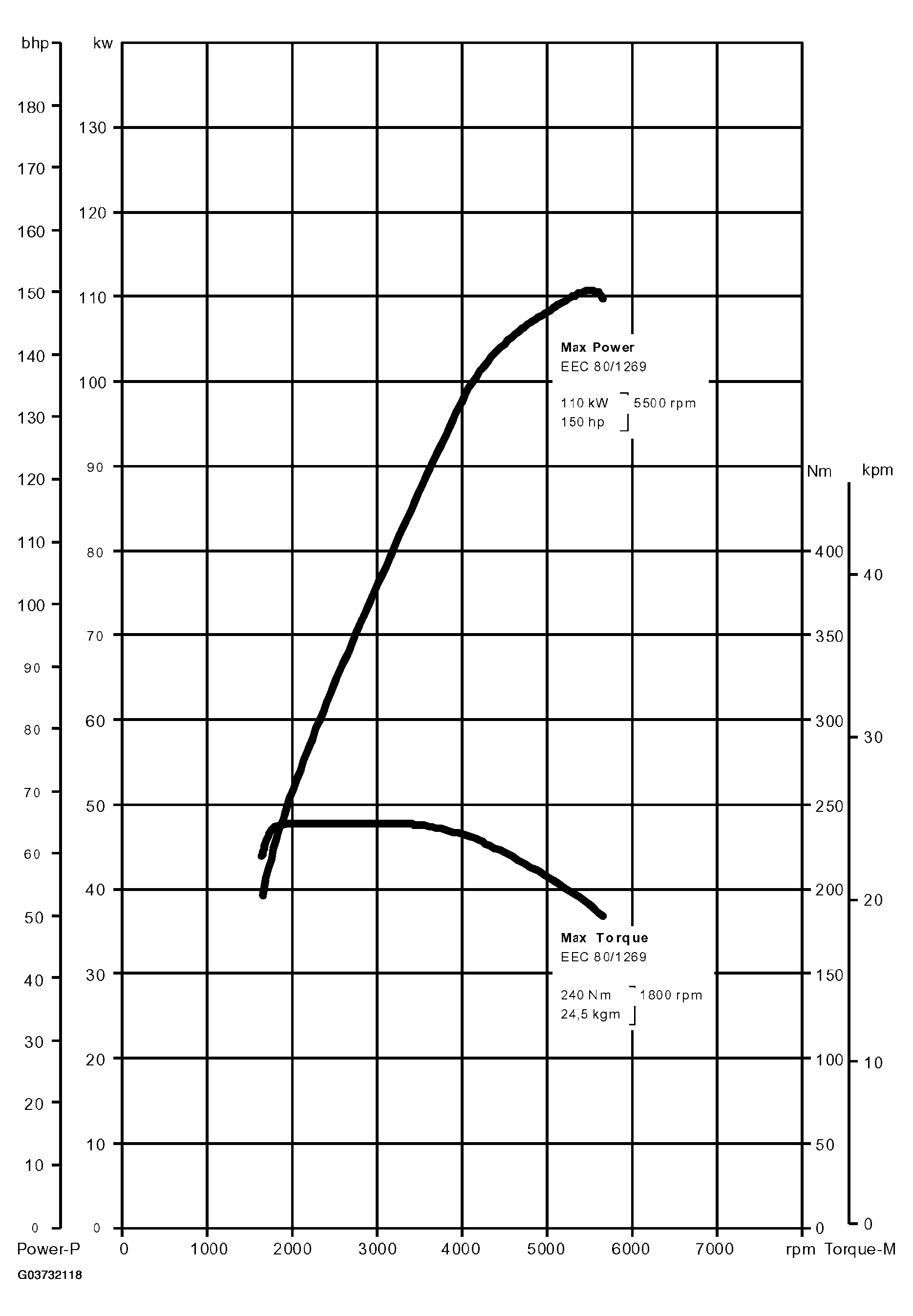

Fig 1: Torque And Power Graph (2 Of 4)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
