Technical description: Subframe

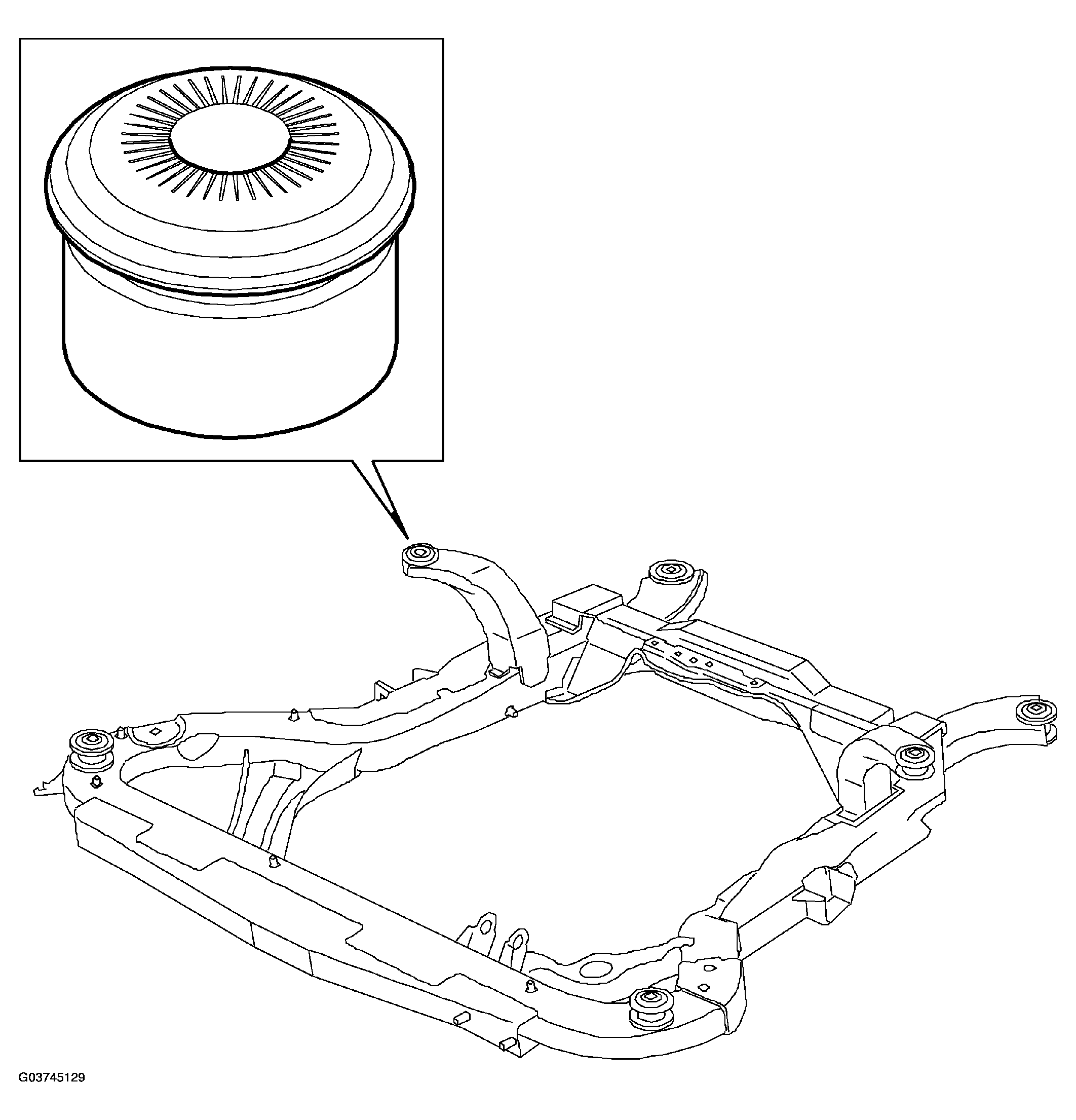

Fig 1: Identifying Subframe Bushings
G03745129Courtesy of SAAB-SCANIA OF AMERICA, INC.

The subframe is fastened to the body with bolts and bushes. The middle bushes and bolts are of the type can come loose in case of a collision. This is to provide good energy absorption.
