ABS Control Module and Hydraulic Control Unit (ABSCM&H-U): Removal

Disconnect the ground cable from battery.

Remove the air intake duct and air cleaner case from the engine compartment to facilitate removal of ABSCM&H/U.

Use compressed air to get rid of water around the ABSCM&H/U.

NOTE: Contact will be insufficient if the terminal gets wet.

Disconnect the ABSCM&H/U connector pulling up the lock lever.

IMPORTANT: Do not pull the harness when disconnecting connector.

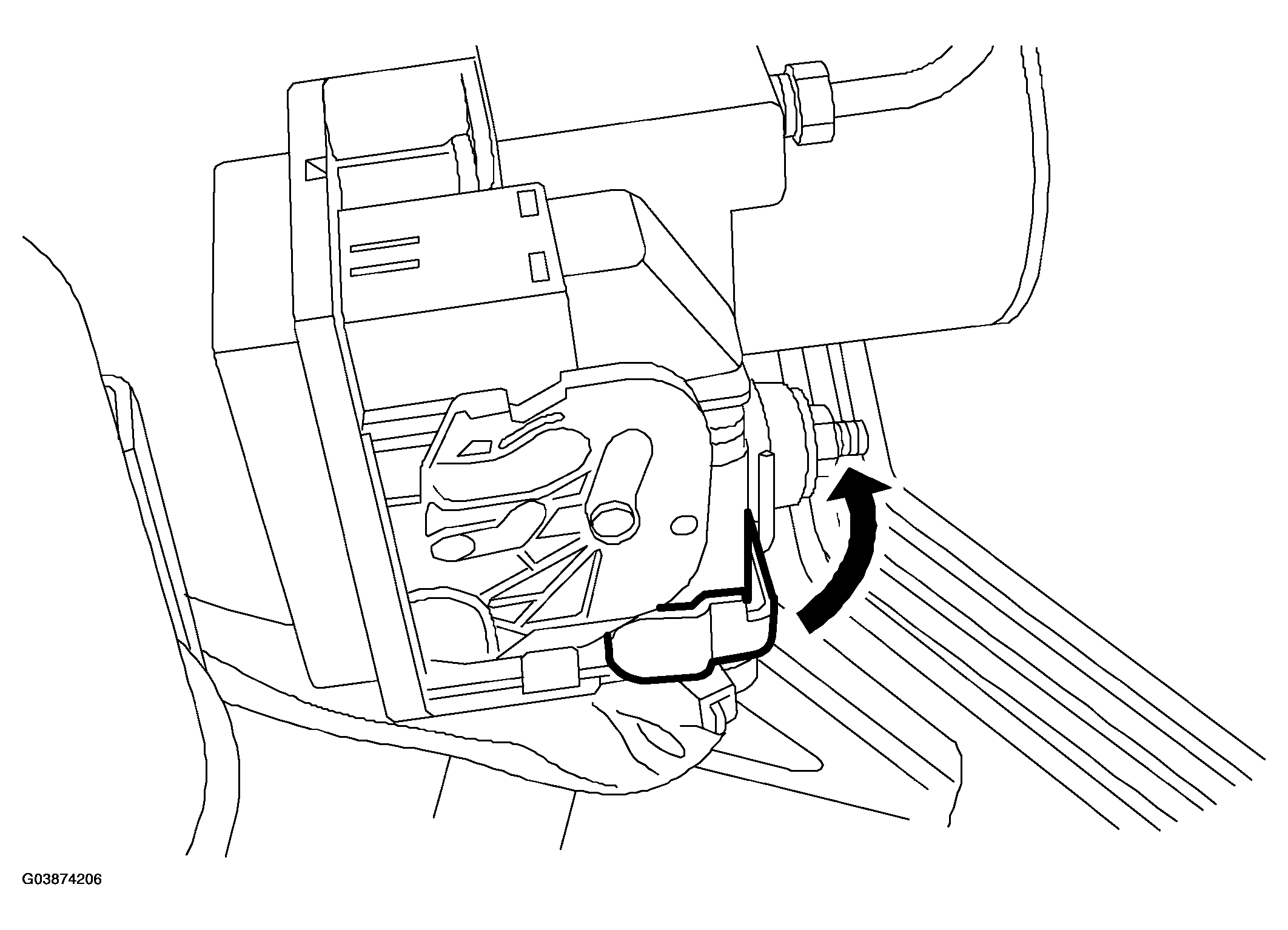

Fig 1: Removing Harness Clip

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the harness clip.

Disconnect the brake pipes from ABSCM&H/U.

Wrap the brake pipe using a vinyl bag not to spill the brake fluid on the vehicle body.

IMPORTANT: When brake fluid is attached to the vehicle body, wash it off with water and wipe the water.

Remove the nuts and remove the ABSCM&H/U.

IMPORTANT:

Do not drop or bump the ABSCM&H/U.
Do not turn ABSCM&H/U upside down or place it sideways for storage.
Be careful that no foreign objects are mixed in ABSCM&H/U.
Be careful that no water enters inside the connectors.

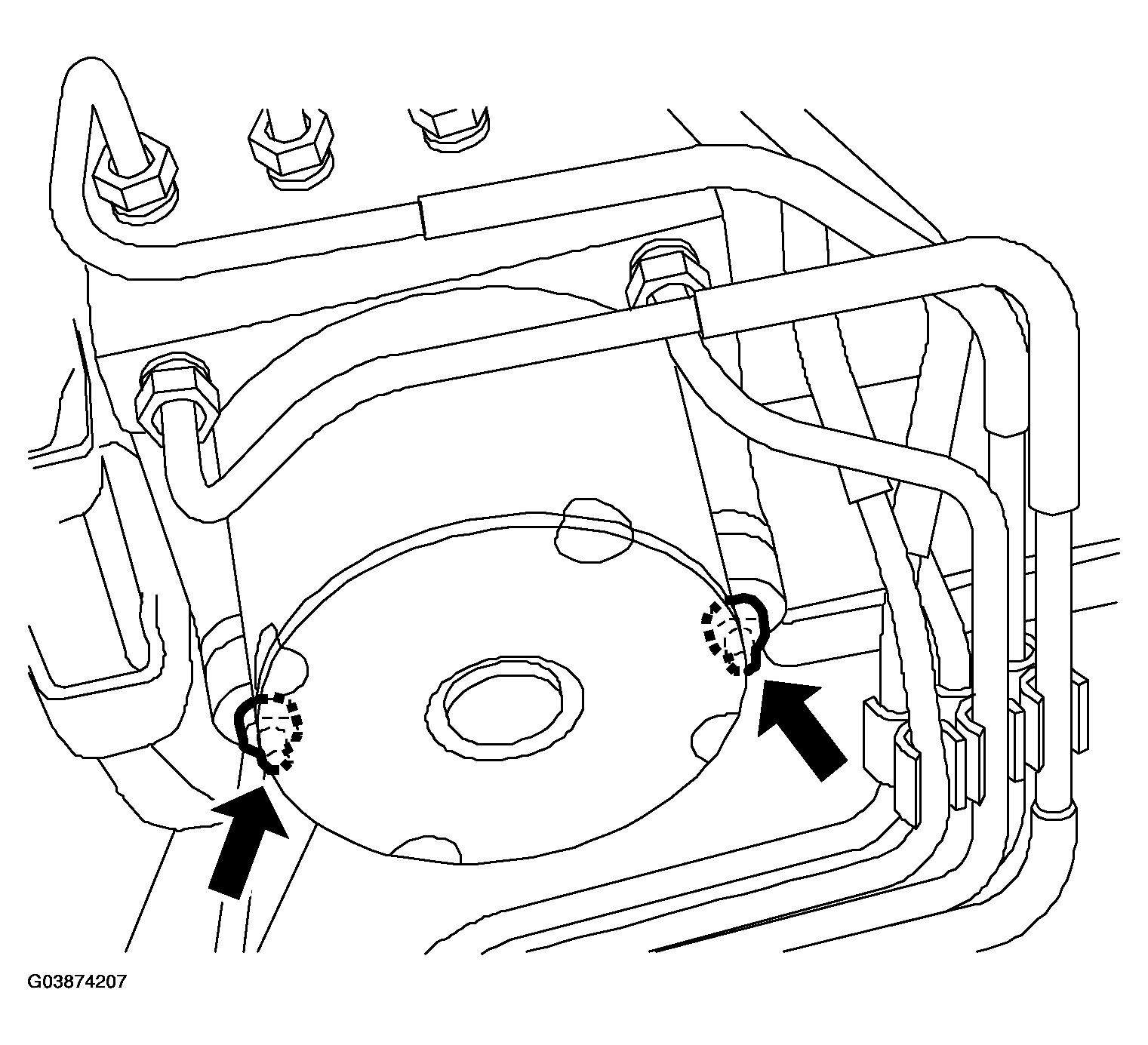

Fig 2: Removing Nuts
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the ABSCM&H/U bracket.
