Speed Control System Components

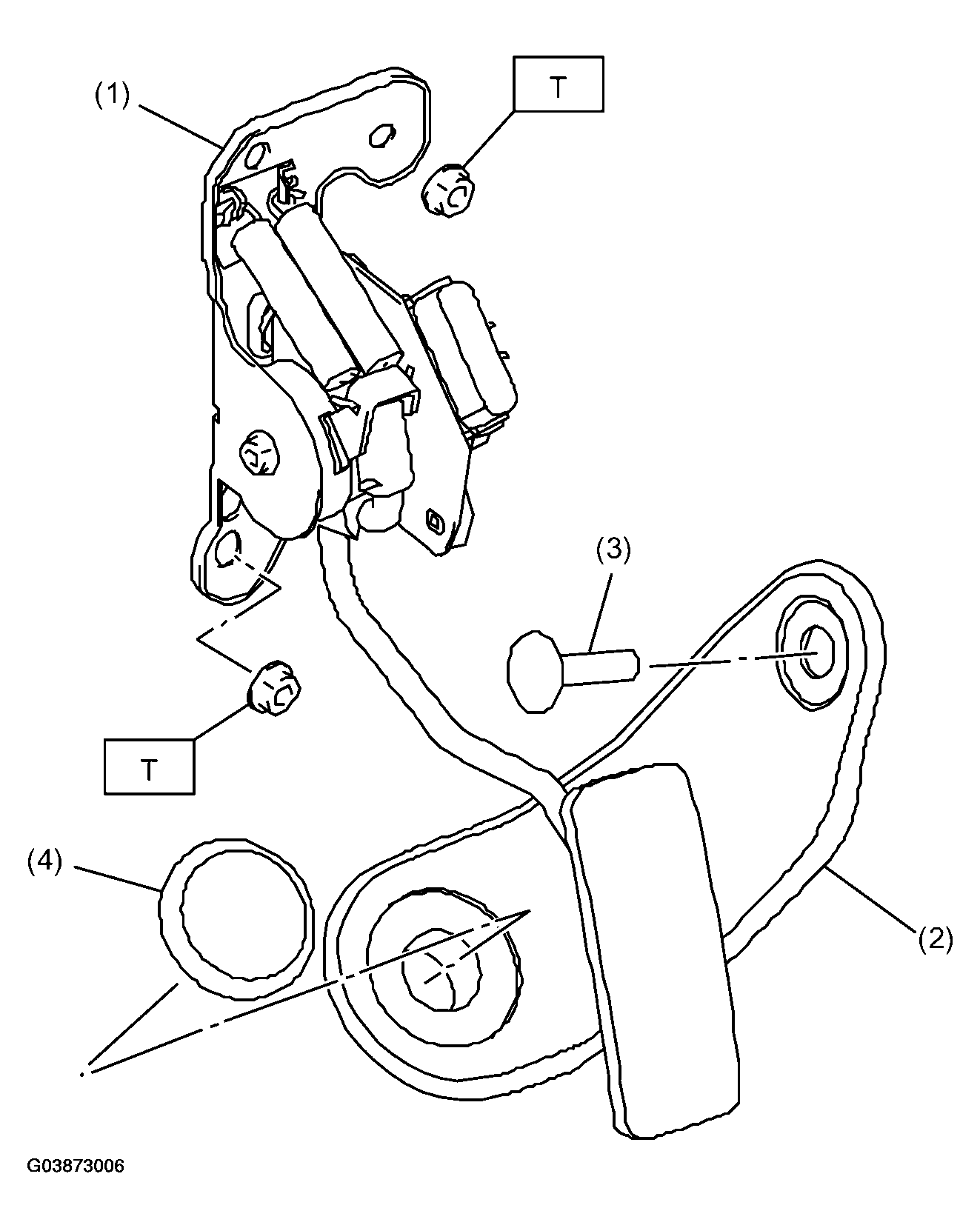

Fig 1: Identifying Speed Control System Components
G03873006Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Accelerator pedal ASSY
  2. Accelerator plate
  3. Clip
  4. Stopper

    Tightening torque: Nm (kgf-m, ft-lb)

    T: 18 (1.8, 13.0)
