Power Assisted System

Saab 9-2X 2.5i Linear

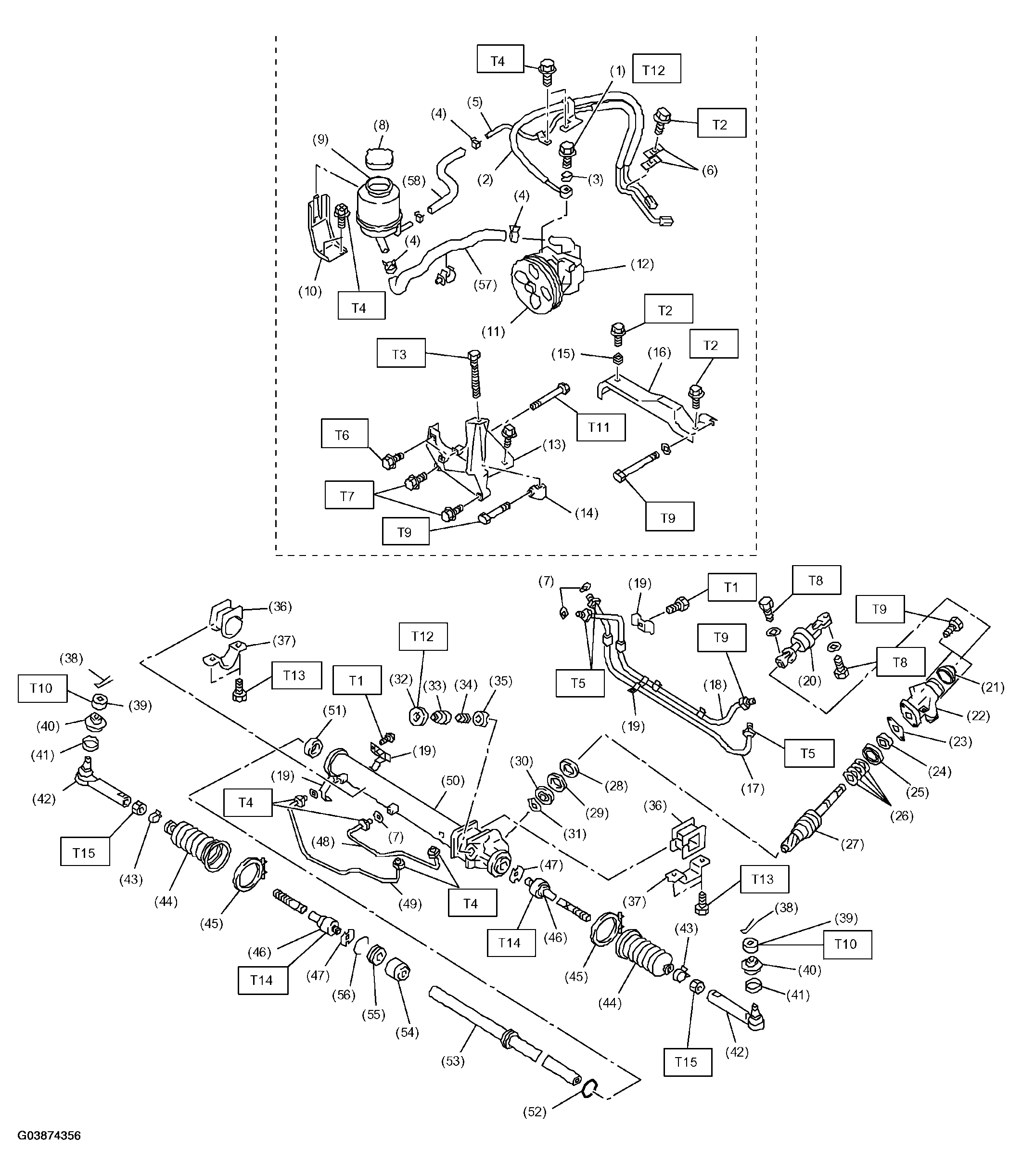

Fig 1: Exploded View Of Power Assisted System (Saab 9-2X 2.5i Linear)
G03874356Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Eye bolt
  2. Pipe C
  3. Gasket
  4. Clip
  5. Pipe D
  6. Clamp E
  7. O-ring
  8. Cap
  9. Reservoir tank
  10. Reservoir tank bracket
  11. Pulley
  12. Oil pump
  13. Bracket
  14. Belt tension nut
  15. Bush
  16. Belt cover
  17. Pipe E
  18. Pipe F
  19. Clamp plate
  20. Universal joint
  21. Dust seal
  22. Valve housing
  23. Gasket
  24. Oil seal
  25. Ball bearing
  26. Seal ring
  27. Pinion and valve ASSY
  28. Oil seal
  29. Back-up washer
  30. Ball bearing
  31. Snap ring
  32. Lock nut
  33. Adjusting screw
  34. Spring
  35. Sleeve
  36. Adapter
  37. Clamp
  38. Cotter pin
  39. Castle nut
  40. Dust cover
  41. Clip
  42. Tie-rod end
  43. Clip
  44. Boot
  45. Band
  46. Tie-rod
  47. Lock washer
  48. Pipe B
  49. Pipe A
  50. Steering body
  51. Oil seal
  52. Piston ring
  53. Rack
  54. Rack bushing
  55. Rack stopper
  56. Circlip
  57. Suction hose
  58. Hose

Tightening torque: Nm (kgfm, ft-lb)

T1: 6 (0.6, 4.3)

T2: 7.4 (0.75, 5.4)

T3: 8 (0.8, 5.8)

T4: 13 (1.3, 9.4)

T5: 15 (1.5, 10.8)

T6: 15.7 (1.6, 11.6)

T7: 22 (2.2, 15.9)

T8: 24 (2.4, 17.4)

T9: 25 (2.5, 18.1)

T10: 27 (2.75, 19.9)

T11: 37.3 (3.8, 27.5)

T12: 39 (4.0, 28.9)

T13: 59 (6.0, 43.4)

T14: 78 (8.0, 57.9)

T15: 83 (8.5, 61.5)

Saab 9-2X 2.0T Aero

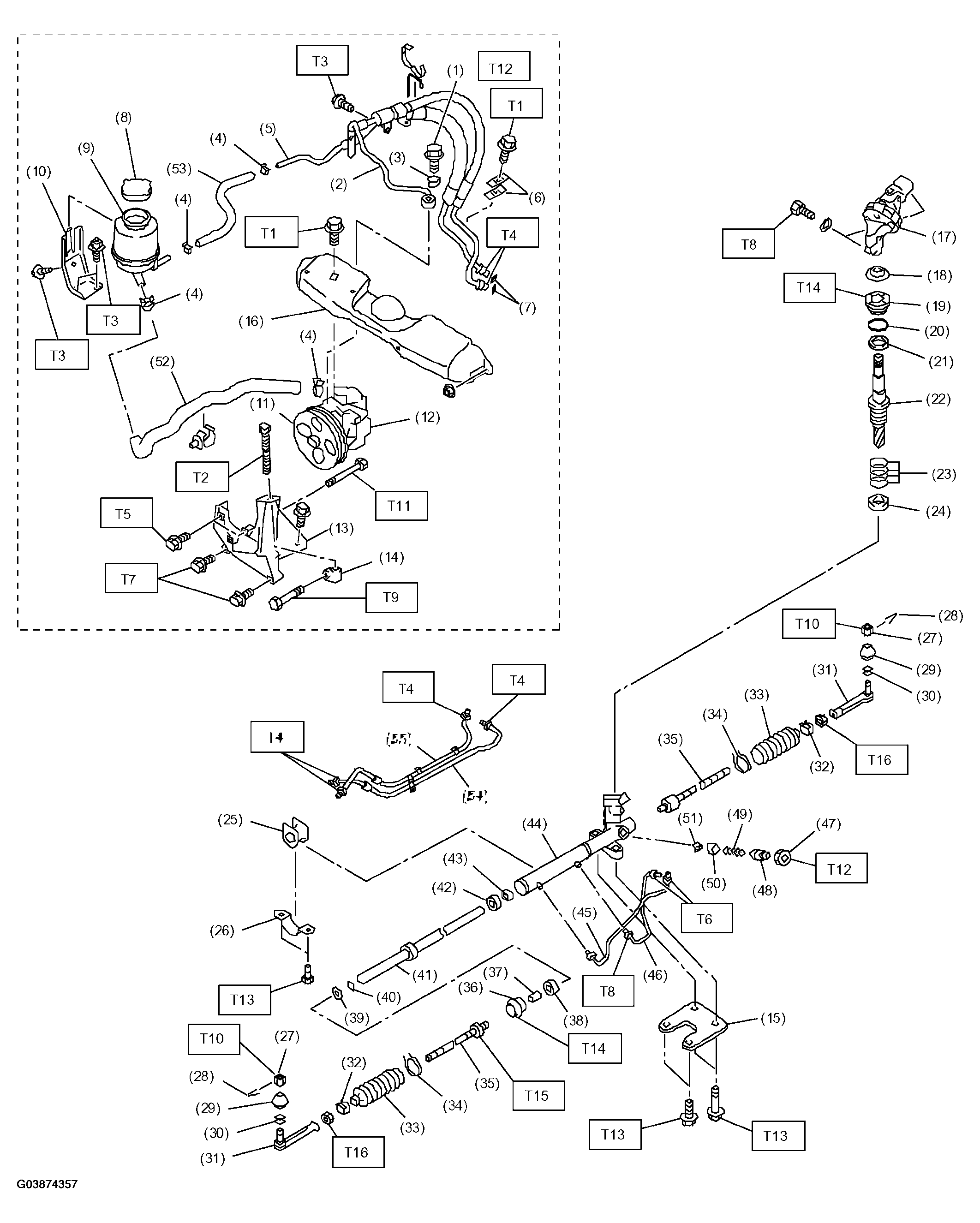

Fig 2: Exploded View Of Power Assisted System (Saab 9-2X 2.0T Aero)
G03874357Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Eye bolt
  2. Pipe C
  3. Gasket
  4. Clip
  5. Pipe D
  6. Clamp E
  7. O-ring
  8. Cap
  9. Reservoir tank
  10. Reservoir tank bracket
  11. Pulley
  12. Oil pump
  13. Bracket
  14. Belt tension nut
  15. Stiffener
  16. Belt cover
  17. Universal joint
  18. Dust cover
  19. Plug
  20. O-ring
  21. Oil seal
  22. Pinion
  23. Seal ring
  24. Oil seal
  25. Adapter
  26. Clamp
  27. Castle nut
  28. Cotter pin
  29. Dust seal
  30. Clip
  31. Tie-rod end
  32. Clip
  33. Boot
  34. Wire
  35. Tie-rod
  36. Holder
  37. Bush
  38. Oil seal
  39. Oil seal
  40. O-ring
  41. Rack
  42. Oil seal
  43. Back-up washer
  44. Steering body
  45. Pipe A
  46. Pipe B
  47. Lock nut
  48. Adjusting screw
  49. Spring
  50. Sleeve
  51. Seat pad
  52. Suction hose
  53. Return hose
  54. Pipe G
  55. Pipe H

Tightening torque: Nm (kgfm, ft-lb)

T1: 7.4 (0.75, 5.4)

T2: 8 (0.8, 5.8)

T3: 13 (1.3, 9.4)

T4: 15 (1.5, 10.8)

T5: 15.7 (1.6, 11.6)

T6: :20 (2.0, 14.5)

T7: :22 (2.2, 15.9)

T8: :24 (2.4, 17.4)

T9: :25 (2.5, 18.1)

T10: :27 (2.75, 19.9)

T11: :37.3 (3.8, 27.5)

T12: :39 (4.0, 28.9)

T13: :60 (6.1, 44.1)

T14: :64 (6.5, 47.0)

T15: :90 (9.0, 65.1)

T16: :85 (8.6, 62.2)
