Keyless Entry Control Unit: Removal

Disconnect the ground cable from battery.

Remove the instrument panel lower cover.

Remove the nut, and then remove the keyless entry control unit while disconnecting connector.

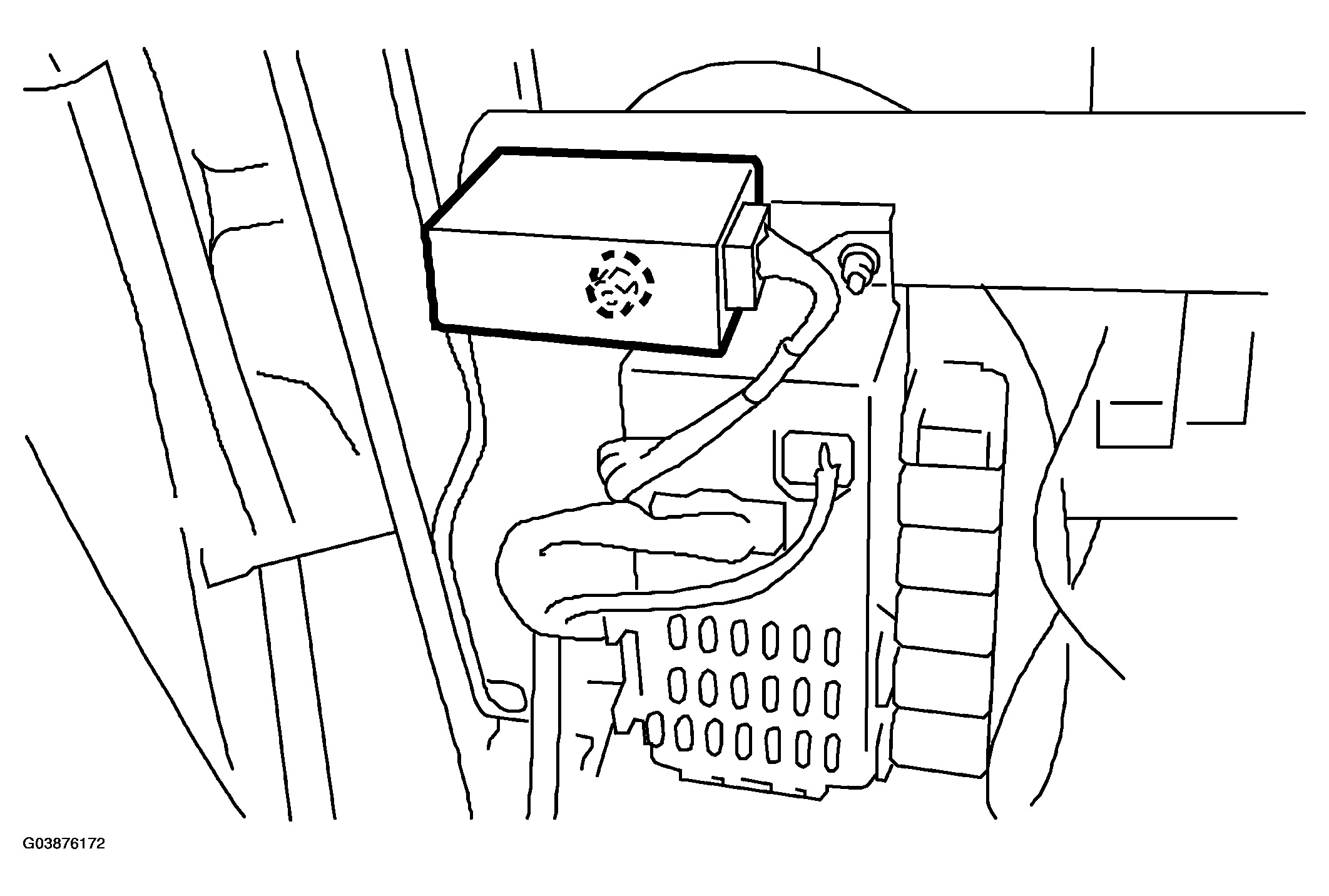

Fig 1: Removing Instrument Panel Lower Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the keyless entry control unit and other electrical control module.
