To remove

  1. Carry out procedure WHEN THE CONTROL MODULE IS TO BE REPLACED . Remove STEERING WHEEL  .
  2. Remove the gaiter from the control module and press it against the instrument panel.

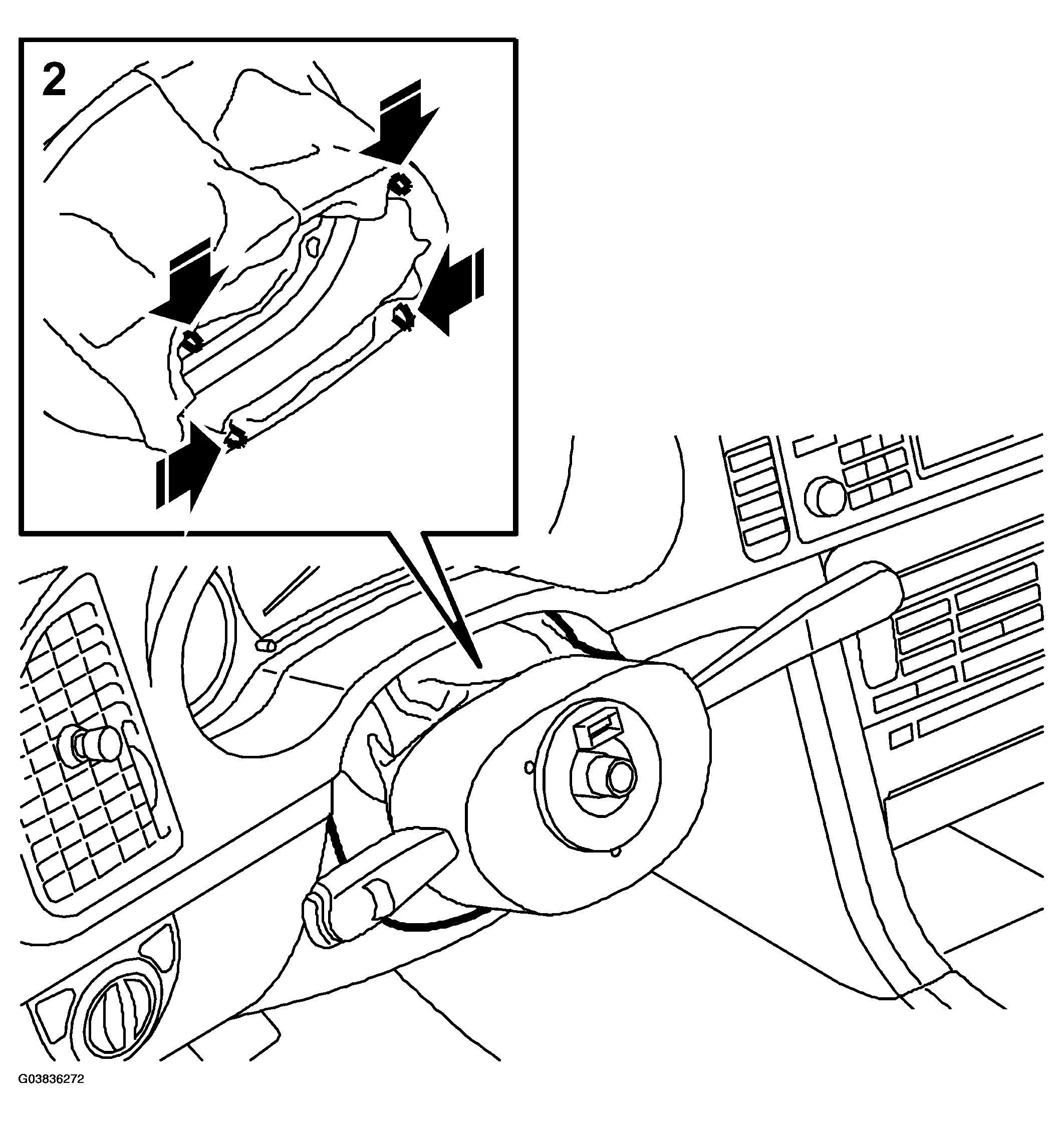

    Fig 1: Illustration For Step 2
    G03836272Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the control module from the steering shaft. Press in the steering column while pulling the control module outwards.

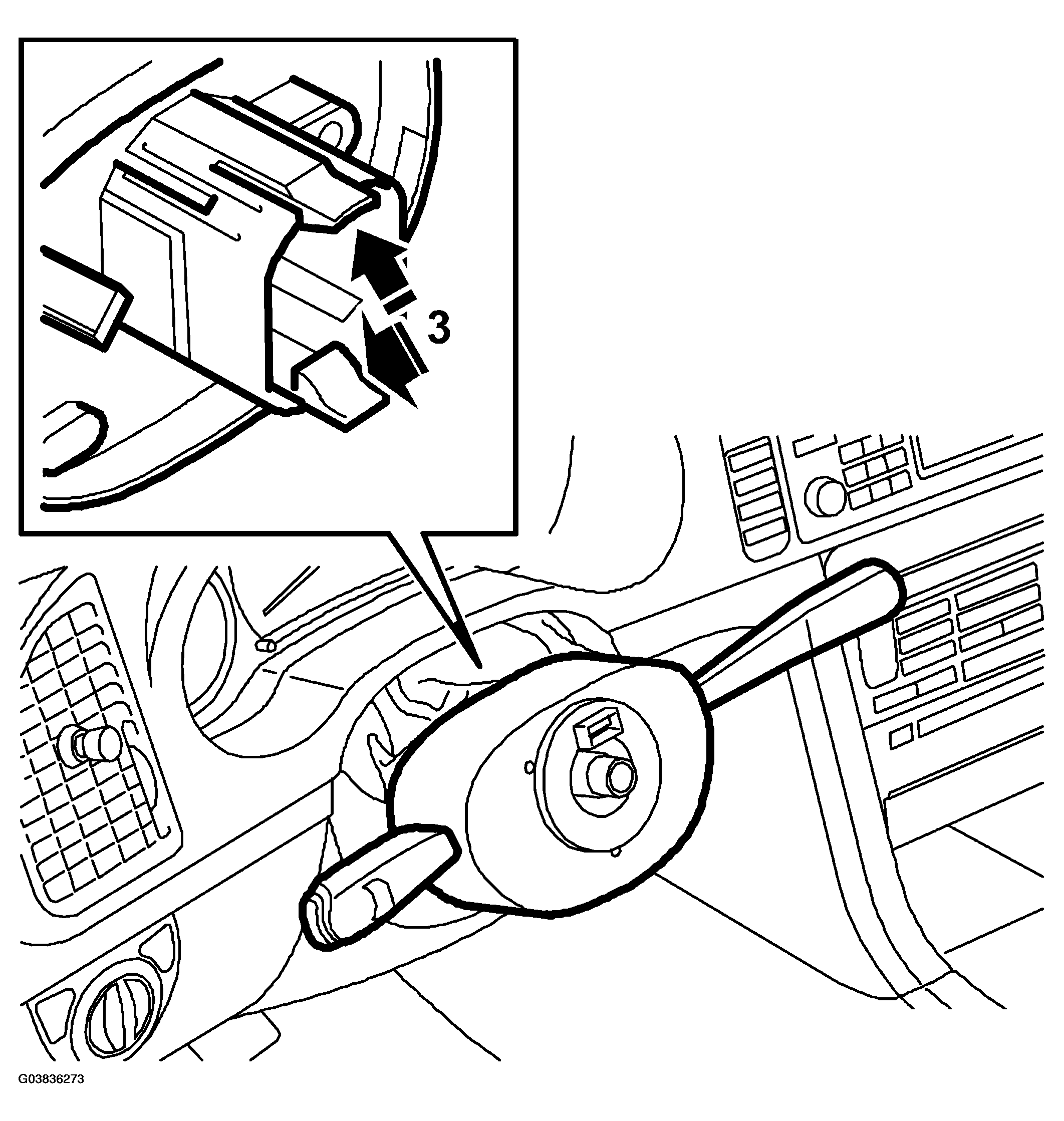

    Fig 2: Illustration For Step 3
    G03836273Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.
  4. Unplug the connector and remove the clip.

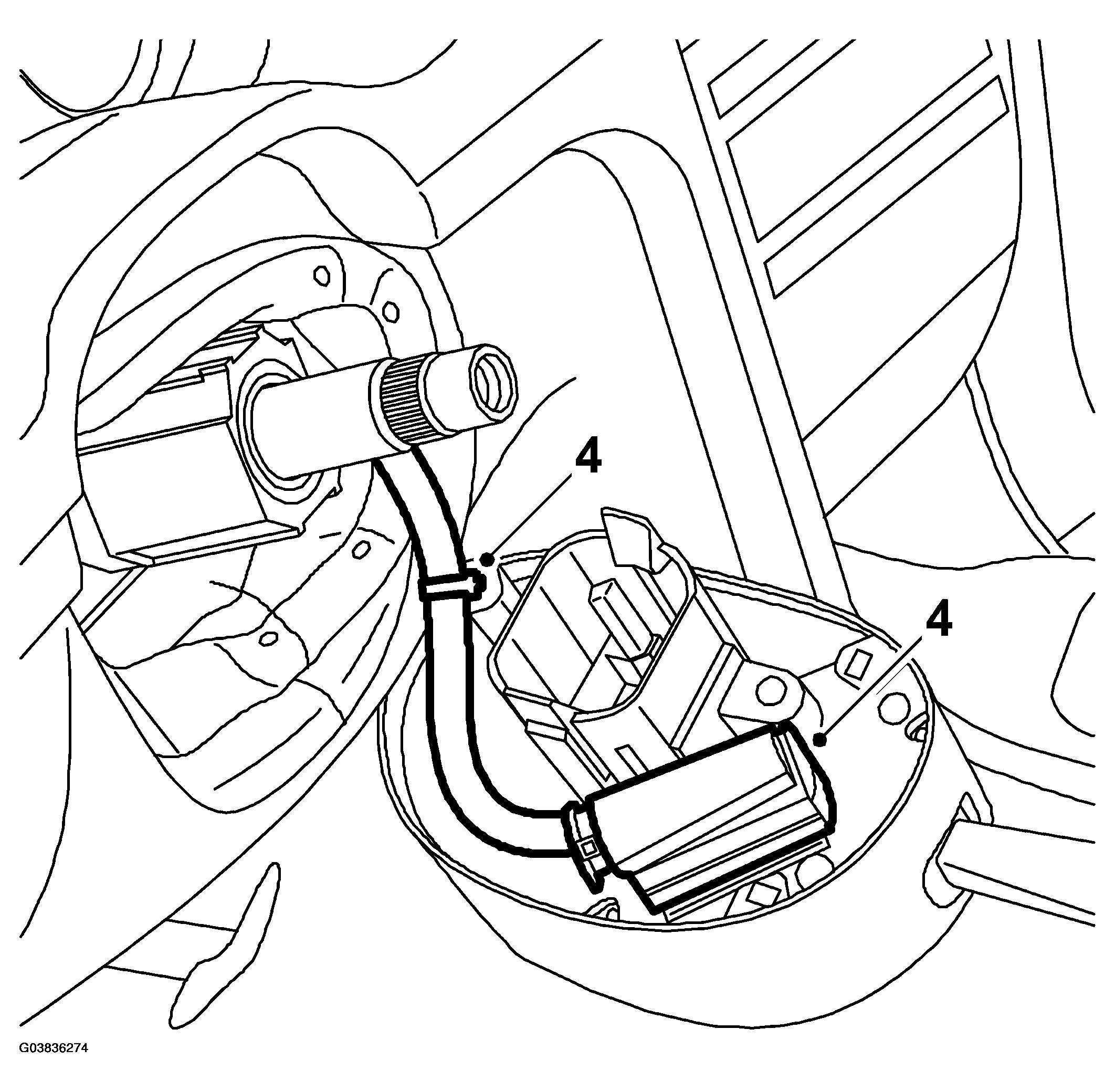

    Fig 3: Illustration For Step 4
    G03836274Courtesy of SAAB-SCANIA OF AMERICA, INC.
