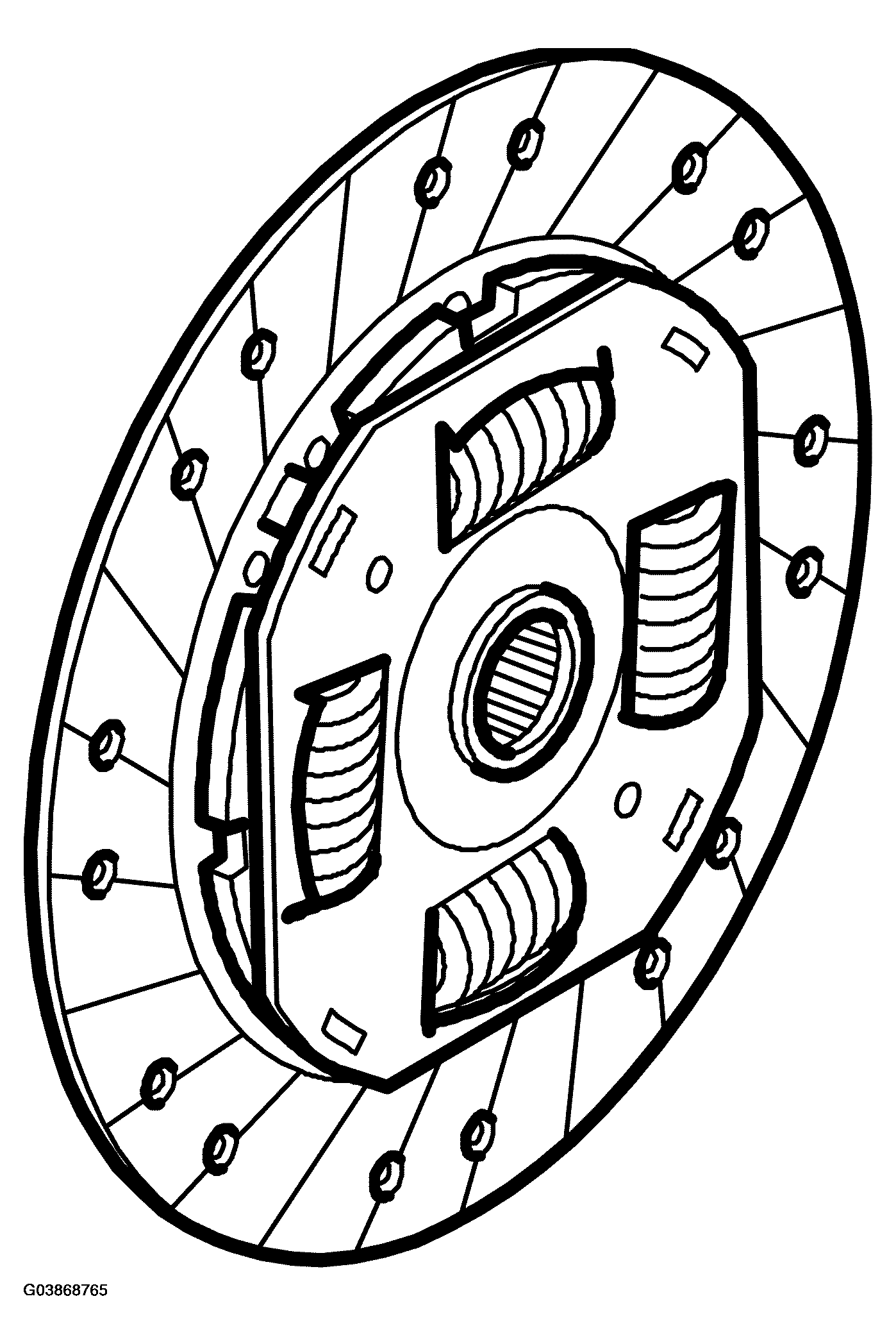

Driven Plate
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC. DRIVEN PLATE DESCRIPTION
| Manufacturer |
|
Fichtel & Sachs |
| Type |
|
Single dry-plate clutch with diaphragm spring |
| Diameter |
mm |
228 |
| Diameter, 4-cyl. diesel |
mm |
240 |
| Lining thickness, new driven plate |
mm |
7,3 0,3 |
| Lining thickness, Min. |
mm |
5.5 |
