Grounding point, G41P: Notes

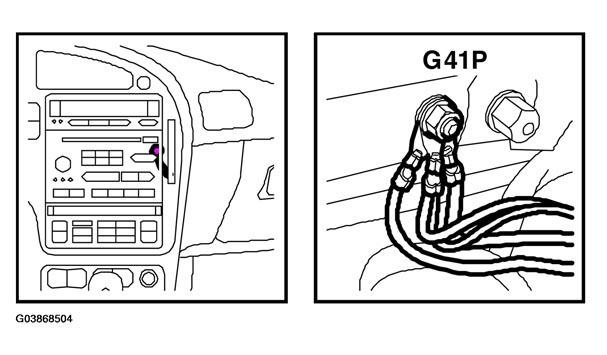

Fig 1: Identifying Grounding Point (G41P)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

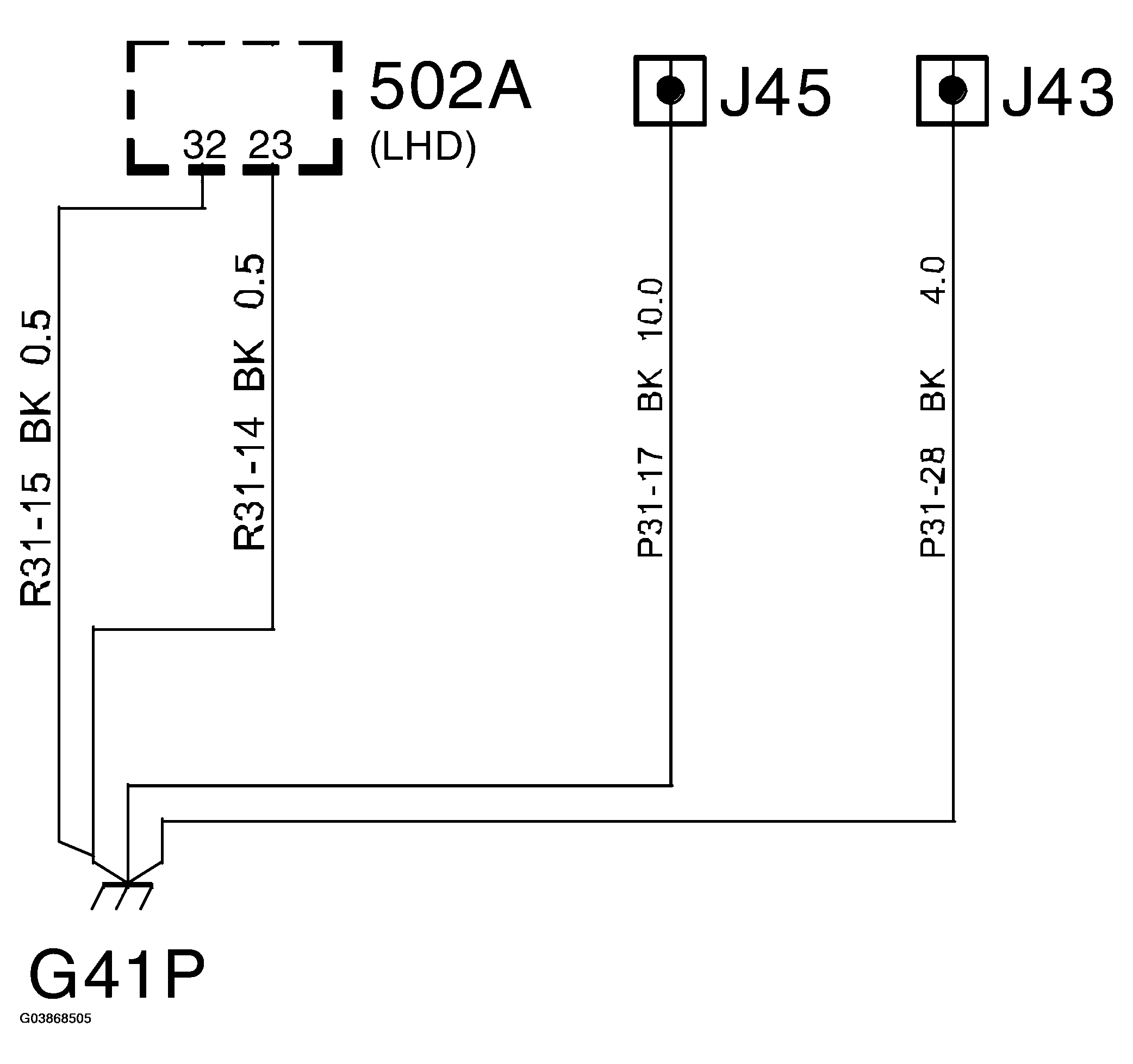

Fig 2: Wiring Diagram - Grounding Point (G41P)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left grounding screw on middle of knee member (in cabin)
