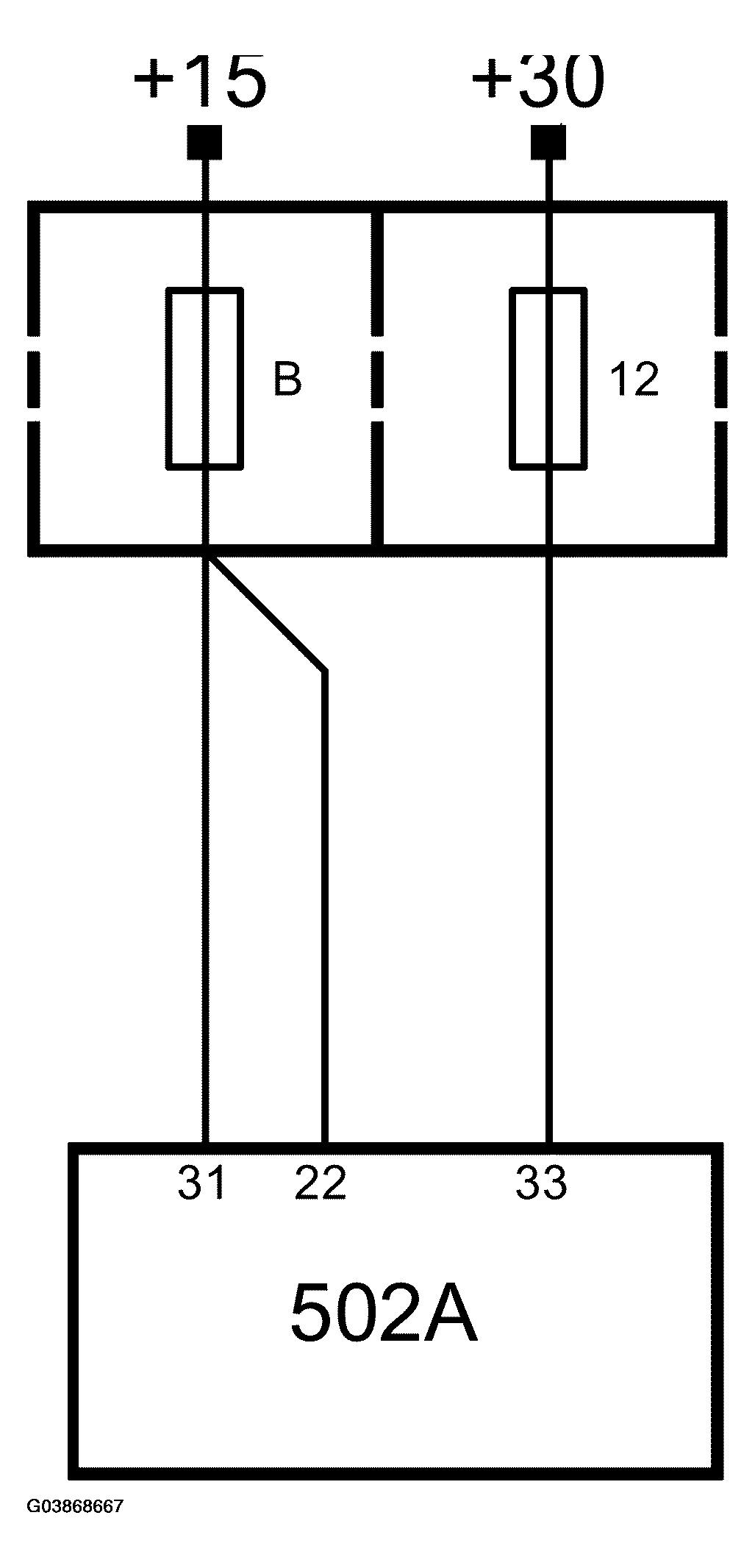

Control module power supply: Diagnostics
Should the power supply drop below 9 V or exceed 16 V for at least 0.5 seconds, diagnostic trouble code P0560 will be generated and the TCM will go into Limp-Home mode.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
