Speed-dependent volume: Notes

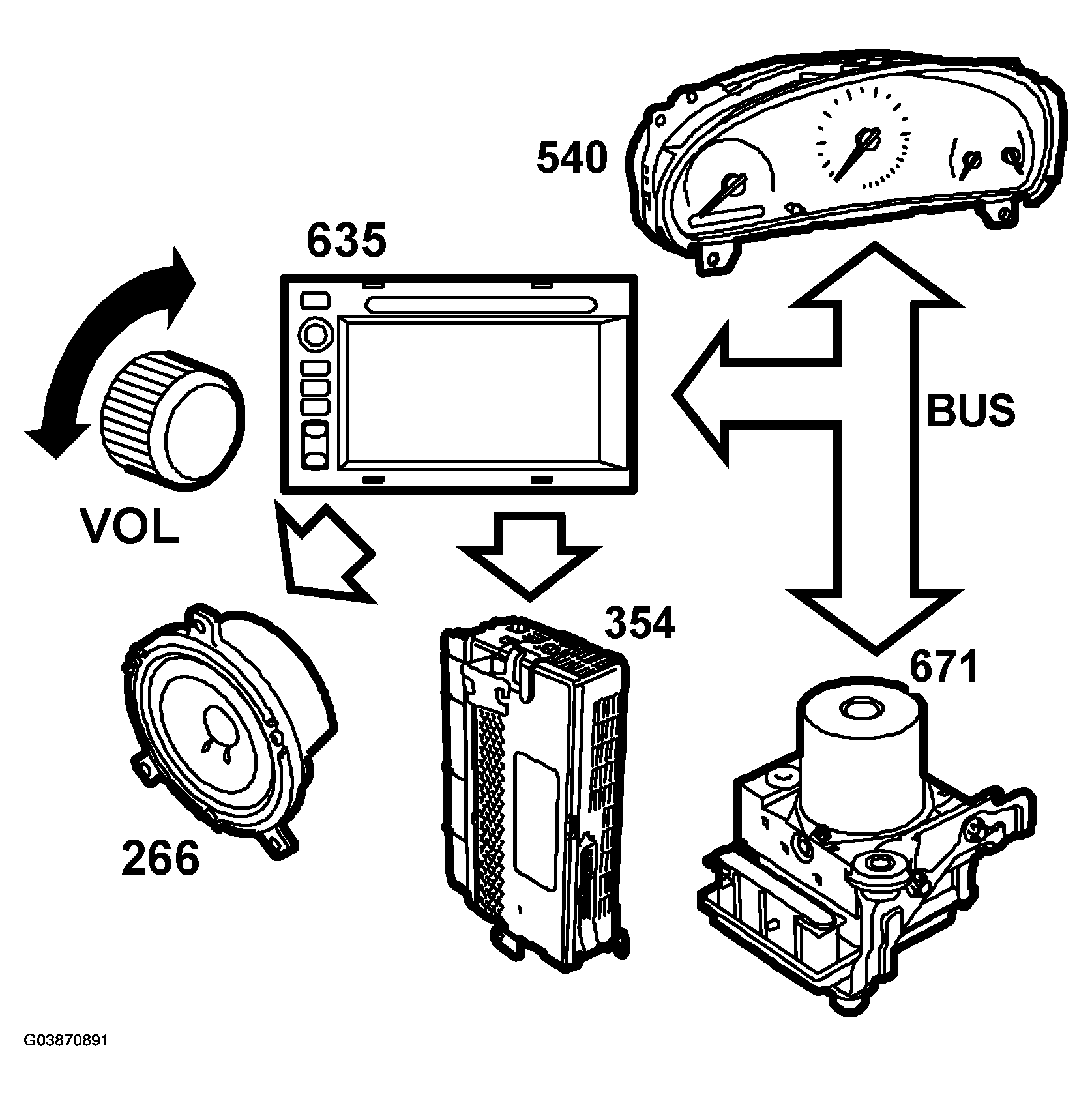

Fig 1: Speed-Dependent Volume Communication Diagram
G03870891Courtesy of SAAB-SCANIA OF AMERICA, INC.

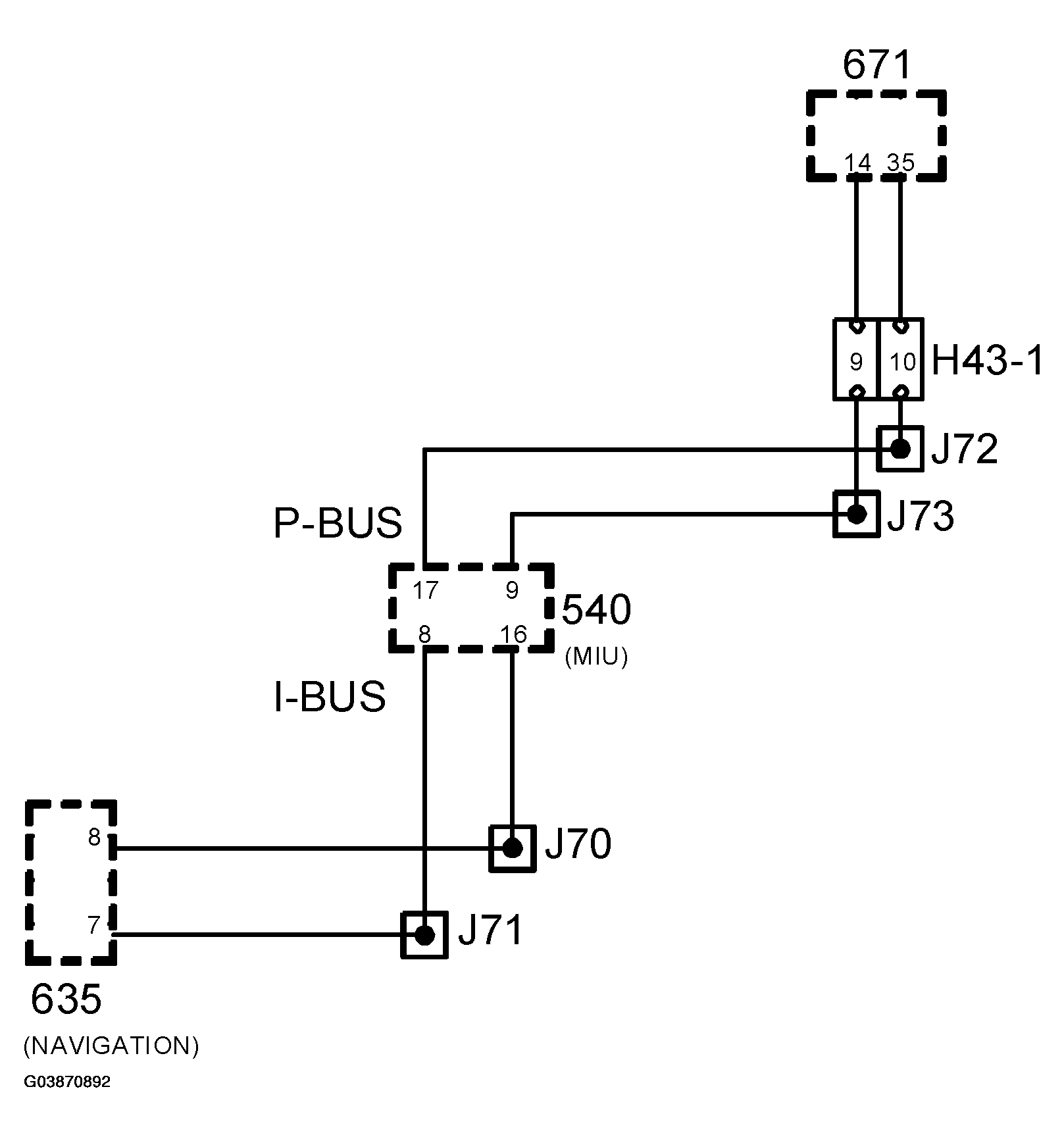

Fig 2: Speed-Dependent Volume Circuit Diagram
G03870892Courtesy of SAAB-SCANIA OF AMERICA, INC.
