Control Units
CONTROL UNITS

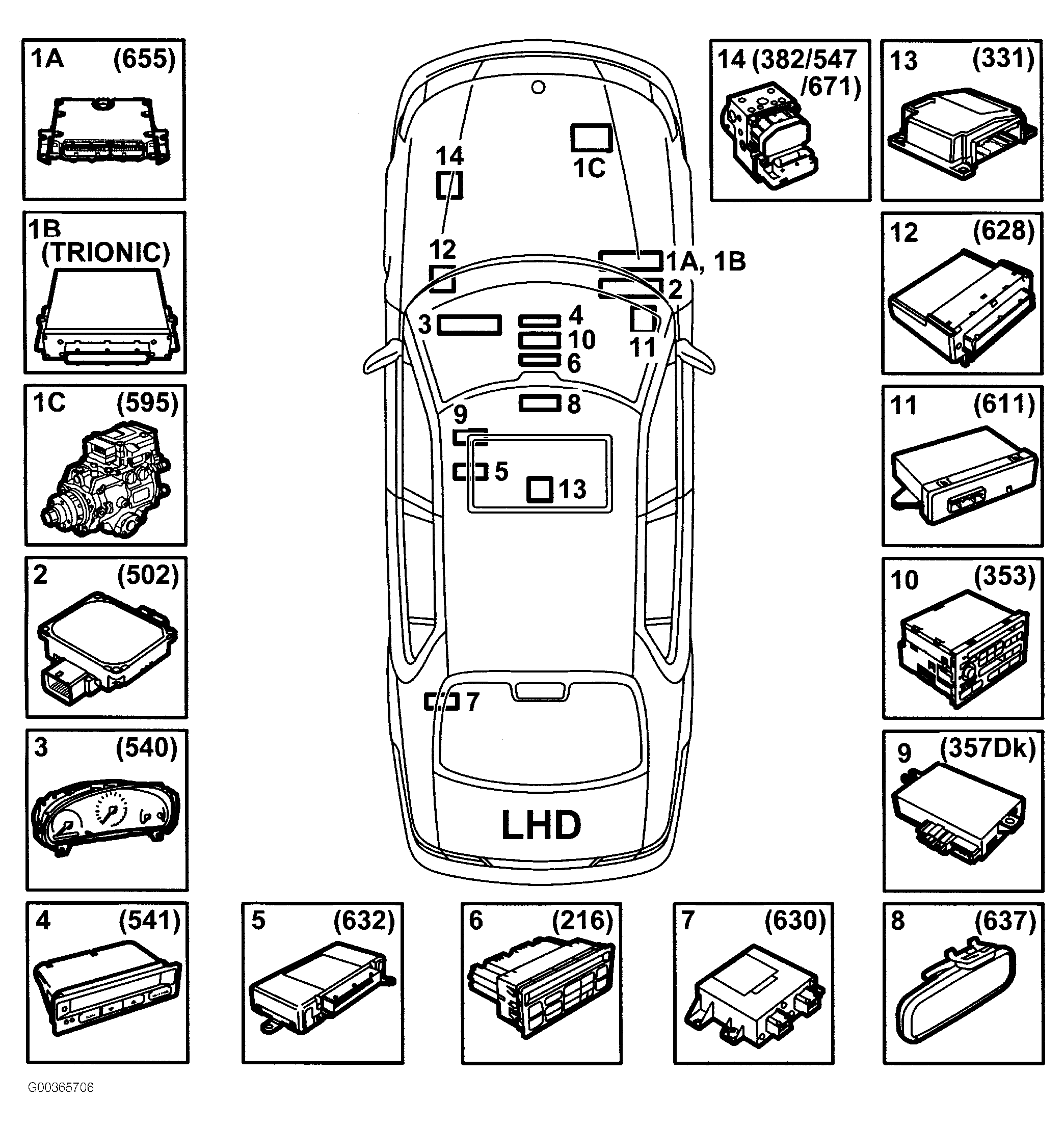

| Component | Location |
|---|---|
| ADM Control Module (8) | Integral with rearview mirror. See Figure . |
| Air Bag (SRS) Control Module (13) | Under center console, behind handbrake. See Figure . |
| DICE Control Module (12) | On main relay box, in dashboard. See Figure . |
| Electrically Adjustable Driver's Seat Control Module (W/Memory) | Under driver's seat cushion. |
| Engine Control Module (1B) | Behind right side of dash. See Figure . |
| ESP Control Module (14) | Integral to hydraulic unit, under the main fuse box in engine compartment. See Figure . |
| Headlight Control Module (Left/Right) | Behind respective headlight. |
| Ignition Discharge Module | On camshaft cover. |
| OnStar Control Module | Under left side of rear package shelf. |
| PMM Control Module (11) | Above glove box. See Figure . |
| PSM Control Module (9) | Under driver's seat cushion. See Figure . |
| SPA Control Module (4 Door) (7) | On left side of luggage compartment, behind seat back. See Figure . |
| SPA Control Module (5 Door) (7) | Under lower front of luggage compartment. See Figure . |
| TCM Control Module (2) | Inside glove box. See Figure . |
| TRIONIC Engine Control Module (1B) | In right rear of engine compartment. See Figure . |
| TWICE Control Module (5) | Under driver's seat. See Figure . |
| Ventilation Fan Control | On driver's side of heating & ventilation unit, near firewall. |
