To remove

  1. Remove the headlamp, see HEADLAMP  .
  2. Unscrew the control module.

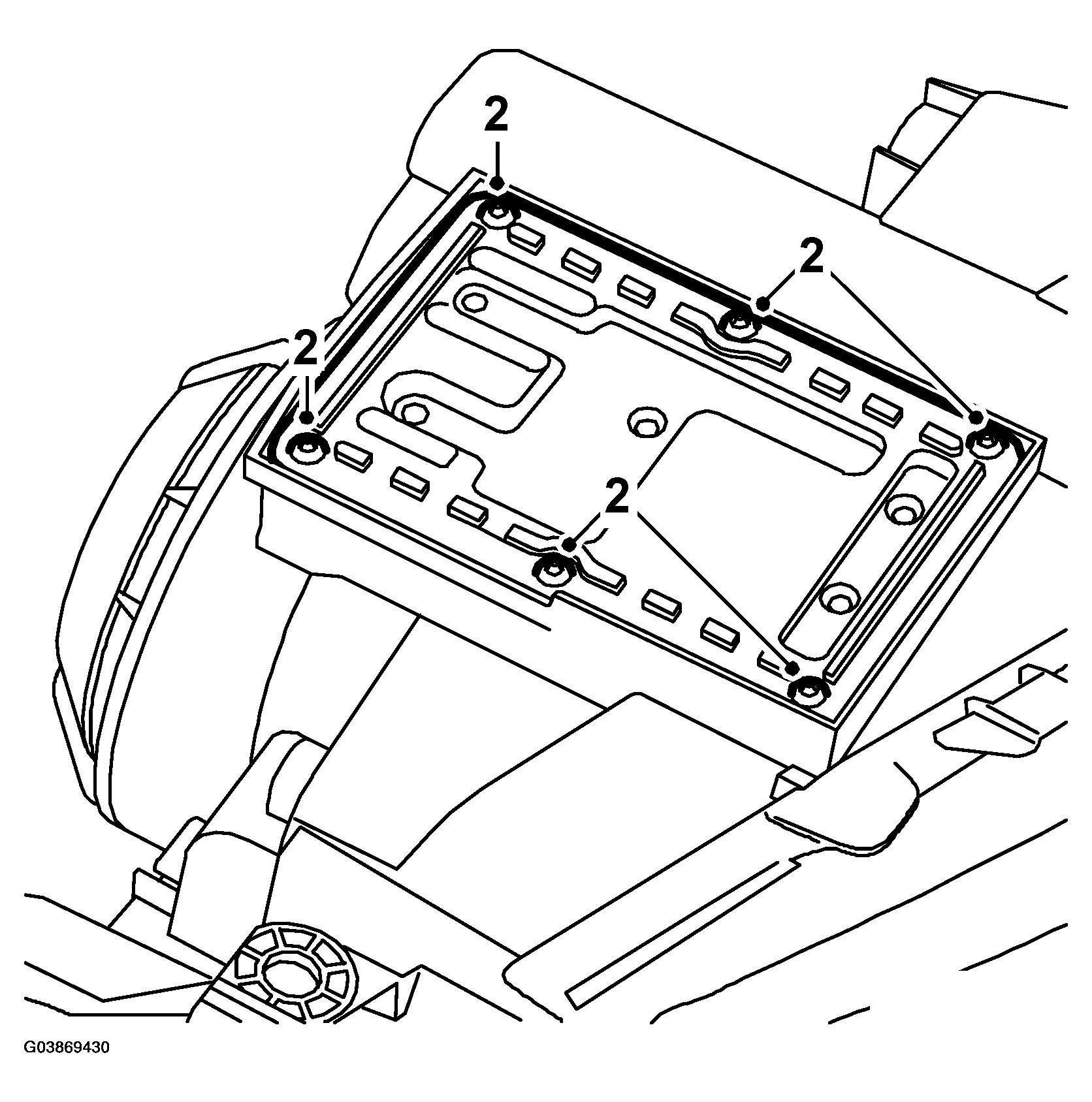

    Fig 1: Illustration For Step 2
    G03869430Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector and lift up the control module.

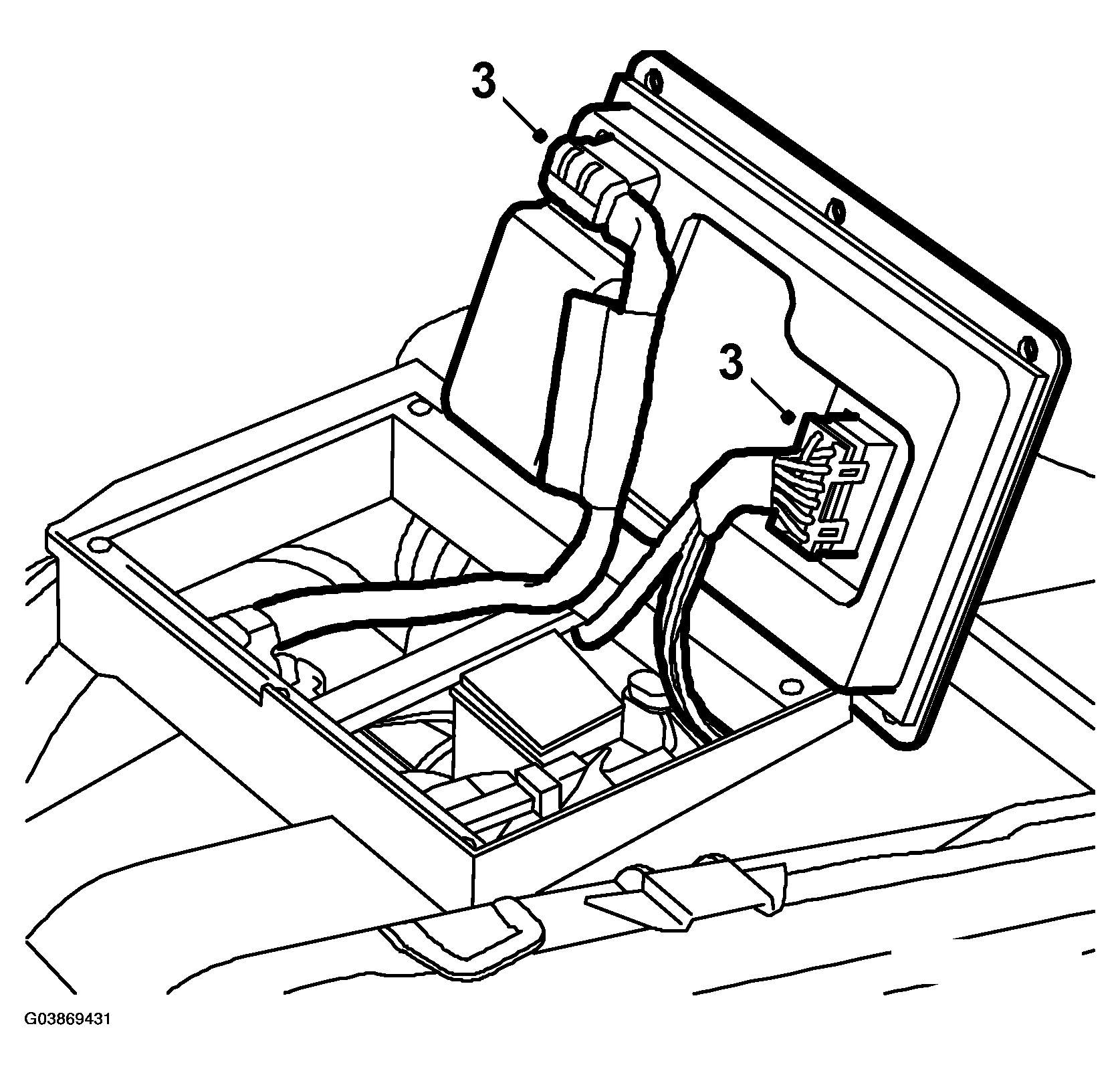

    Fig 2: Illustration For Step 3
    G03869431Courtesy of SAAB-SCANIA OF AMERICA, INC.
