To fit

  1. Fit the sensor to the bracket by screwing in the screws.

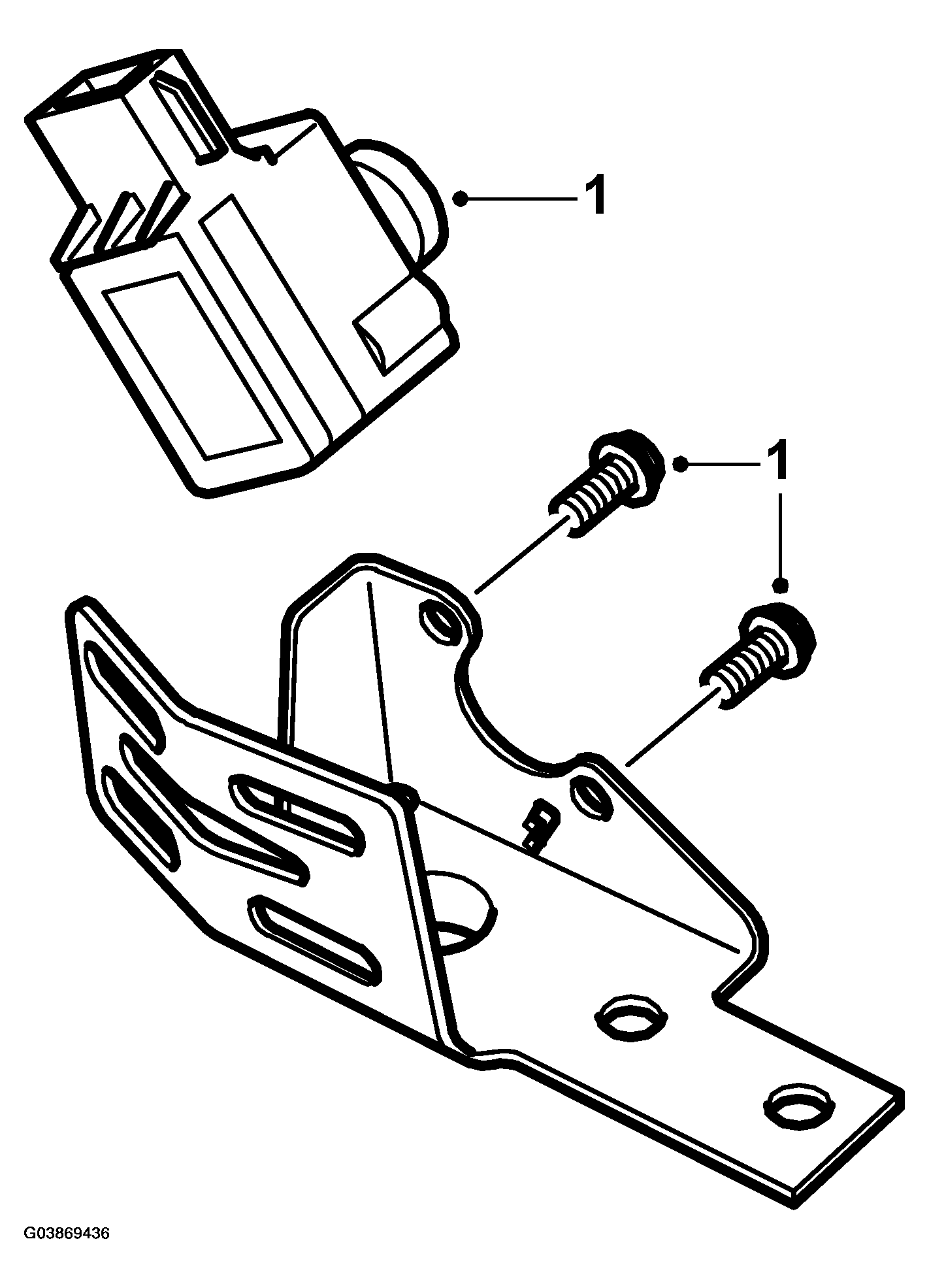

    Fig 1: Illustration For Step 1
    G03869436Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the screws and bracket with level sensor.

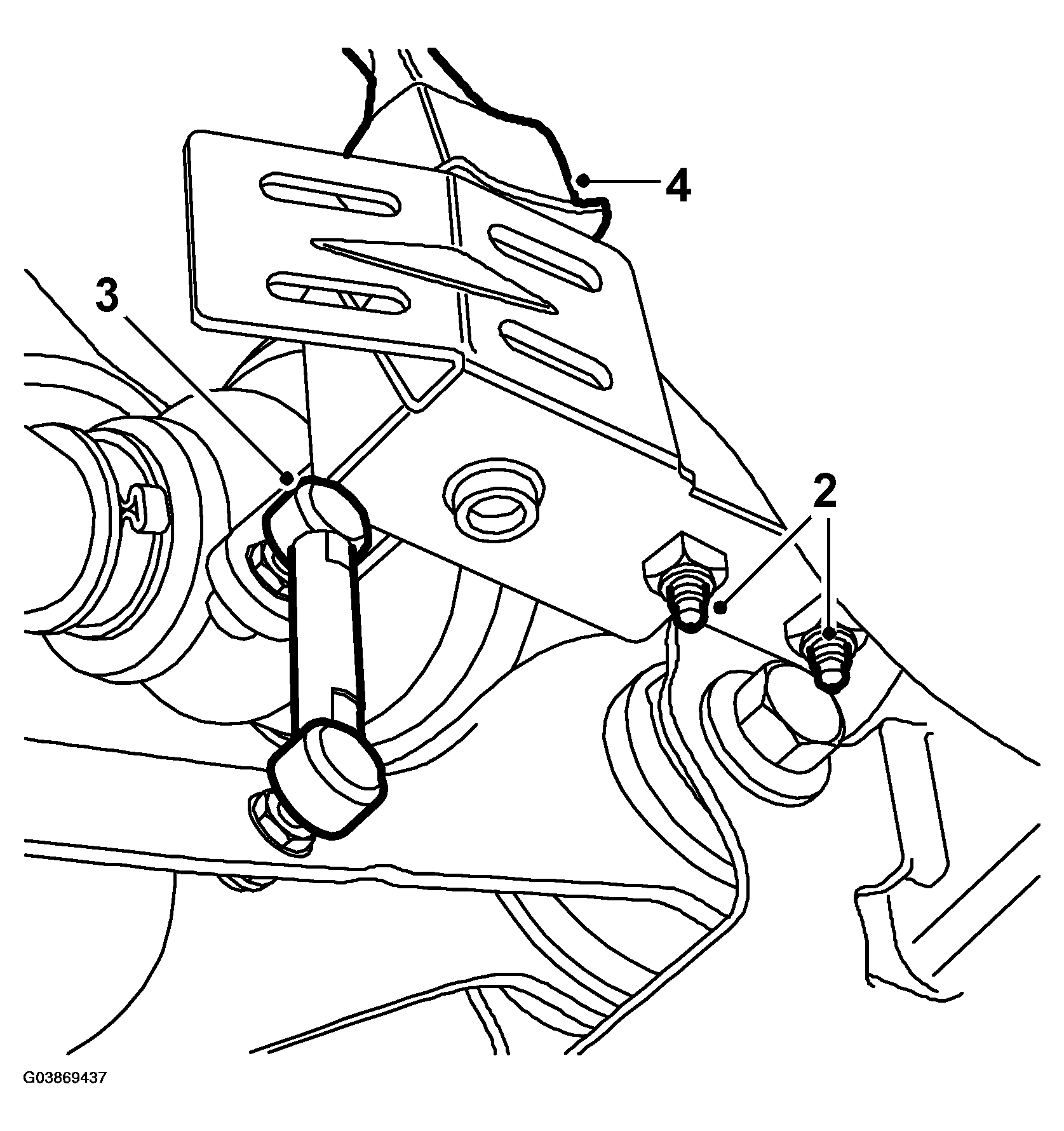

    Fig 2: Illustration For Step 2-4
    G03869437Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the link arm ball joint.
  4. Plug in the connector.
  5. Fit the belt cover.
  6. Calibrate both AHL control modules, see XENON LIGHTING SYSTEM, CALIBRATION  .
