Control Module, PMM (611)

LHD

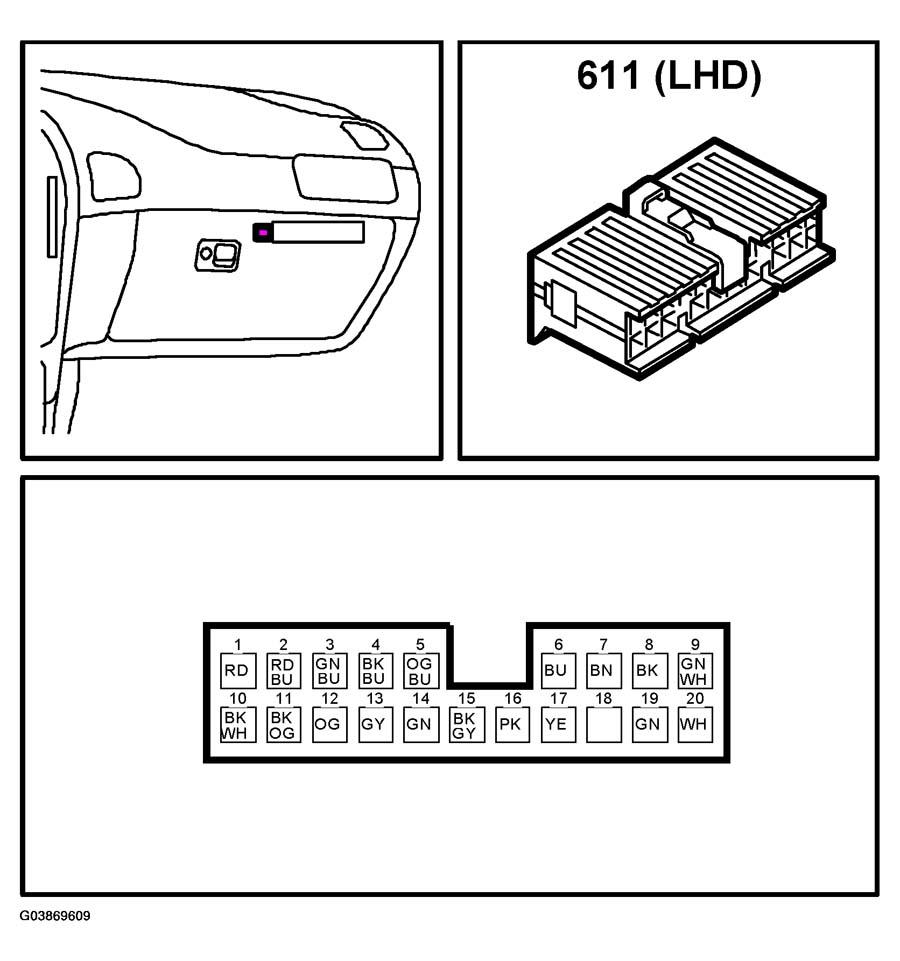

Fig 1: Identifying PMM Control Module Connector And Location - LHD
G03869609Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

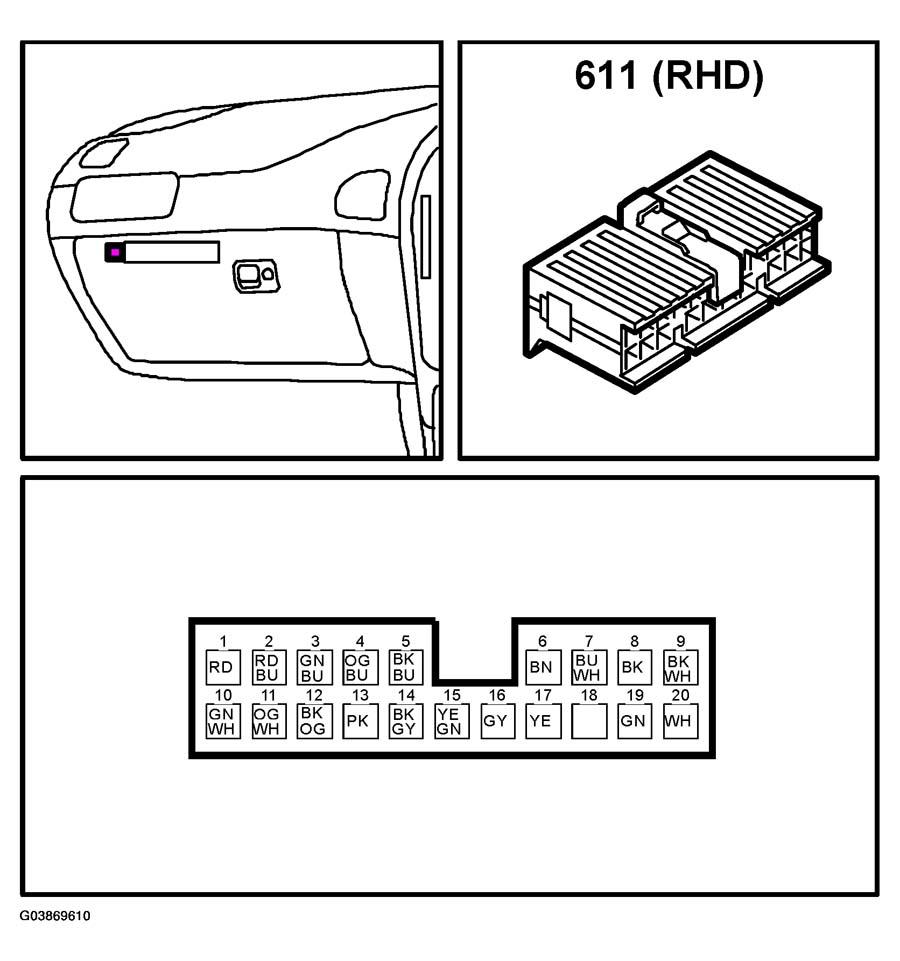

Fig 2: Identifying PMM Control Module Connector And Location - RHD
G03869610Courtesy of SAAB-SCANIA OF AMERICA, INC.
