Grounding Point G33: Notes

Fig 1: Identifying Grounding Point G33 And Location
G03869719Courtesy of SAAB-SCANIA OF AMERICA, INC.

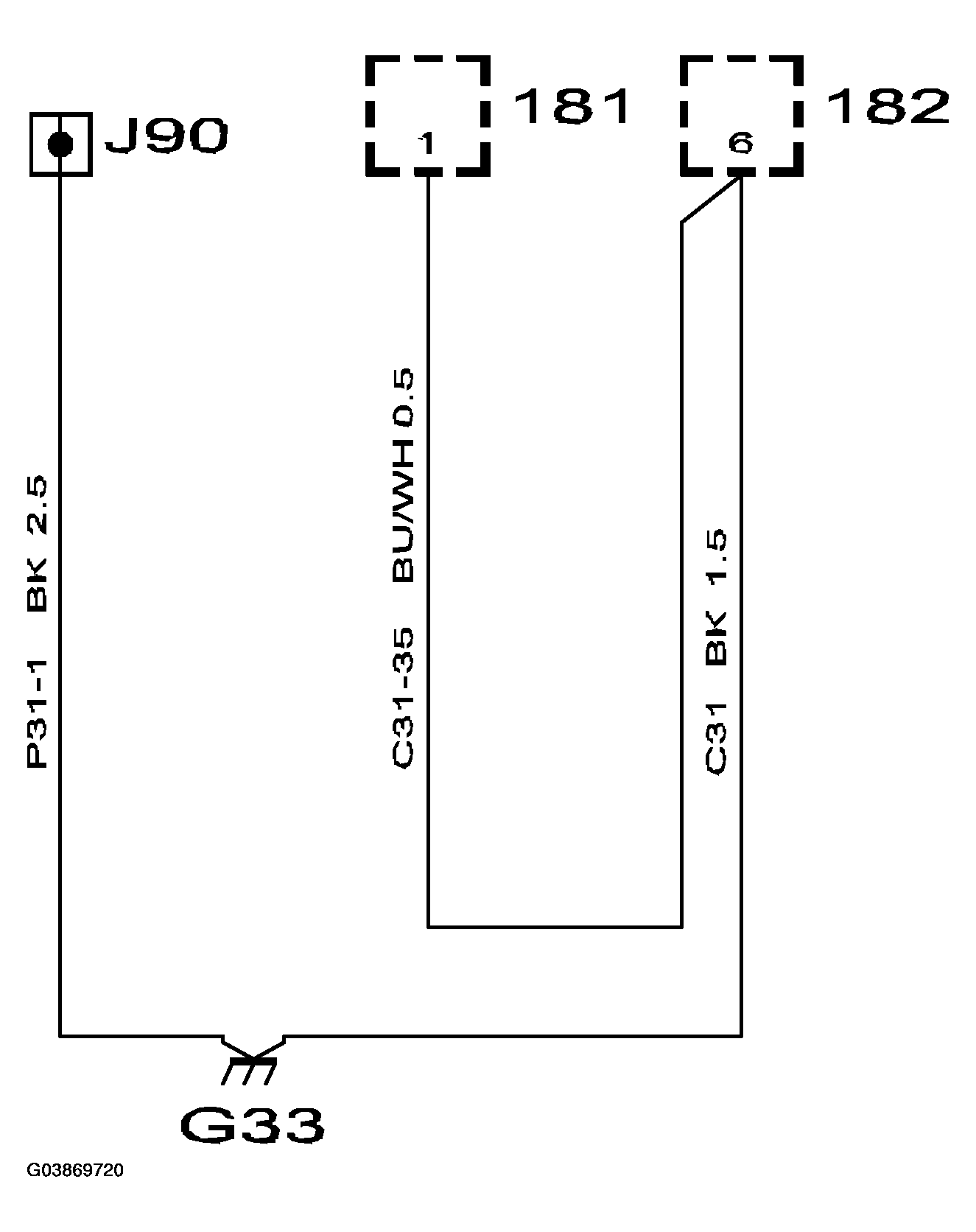

Fig 2: Identifying Crimp J90 Wiring Diagram - Rear Wiring Harness
G03869720Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Below left-hand A-pillar.
