Grounding Point G5: Notes

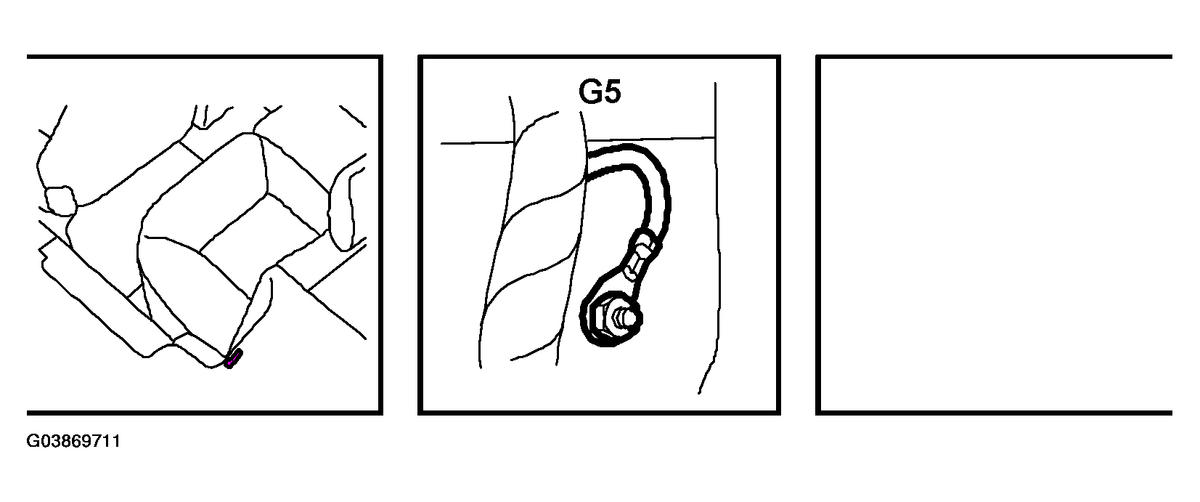

Fig 1: Identifying Grounding Point G5 And Location
G03869711Courtesy of SAAB-SCANIA OF AMERICA, INC.

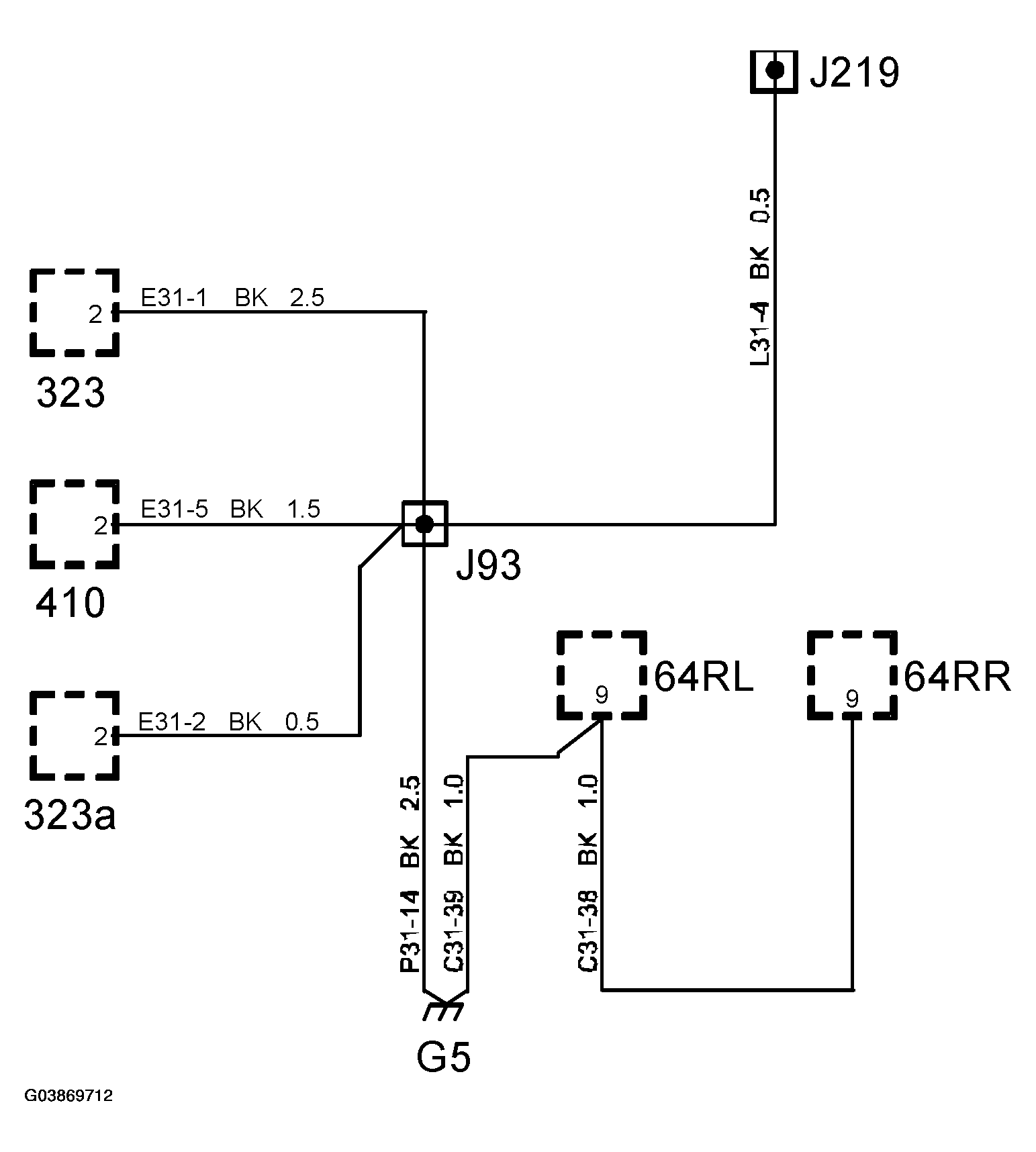

Fig 2: Identifying Crimp J219 Wiring Diagram - Rear Wiring Harness
G03869712Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Under left-hand corner of rear seat.
