Grounding Point, G31: Notes

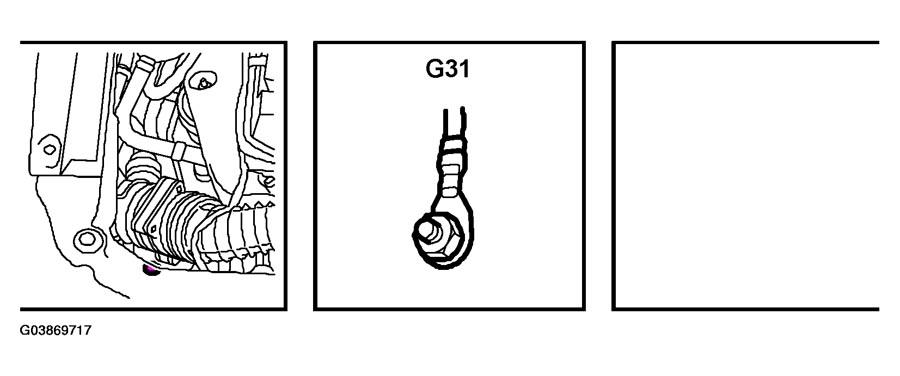

Fig 1: Identifying Grounding Point G31 And Location
G03869717Courtesy of SAAB-SCANIA OF AMERICA, INC.

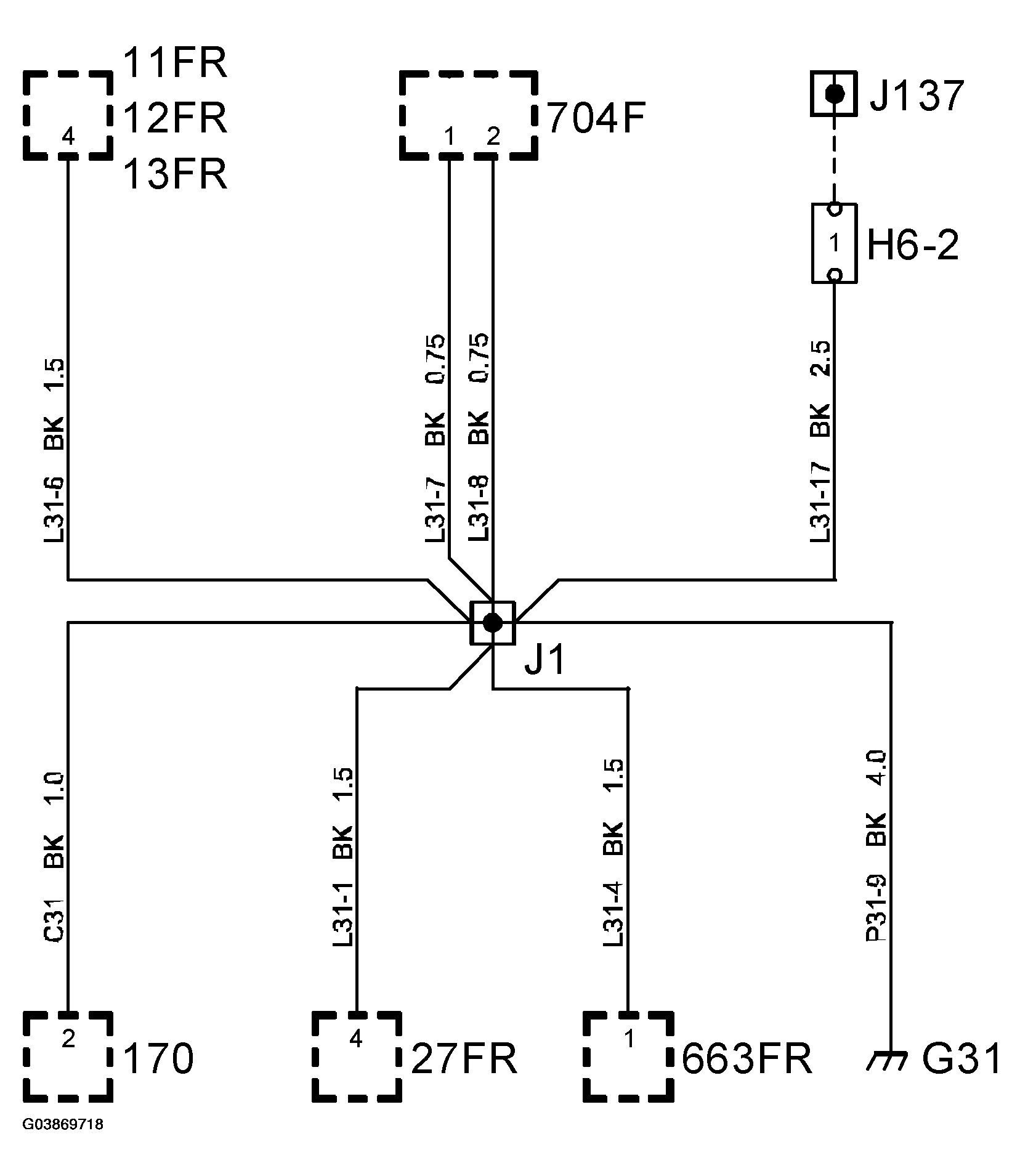

Fig 2: Identifying Crimp J137 Wiring Diagram - Front Bumper Wiring
G03869718Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the RH structural member behind the headlamp.
