System Overview, Interior Lighting 5D

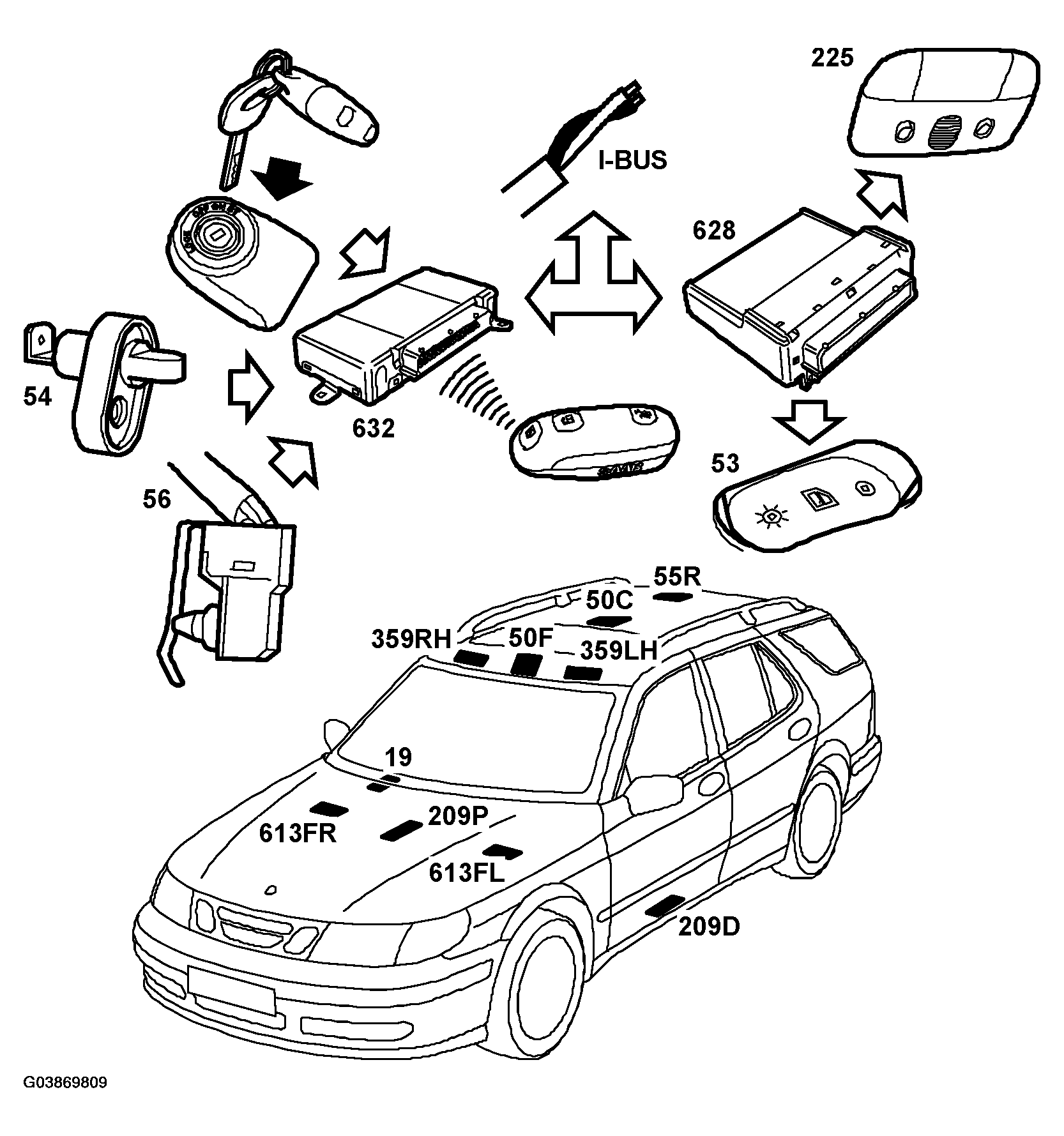

Fig 1: Identifying Interior Lighting 5D System Overview

G03869809

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Door switch (54)
Switch, luggage compartment lighting (56)
Control module, TWICE (632)
Control module DICE (628)
Switch, interior lighting (53)
SID control module (541)
Glove box light (19)
Luggage compartment lighting (55R)
Roof lamp (50C, 50F)
Vanity mirror lamp (359)
Courtesy lights (209)
Reading light (225)
Floor lighting (613)
