Fuel Level Sensor

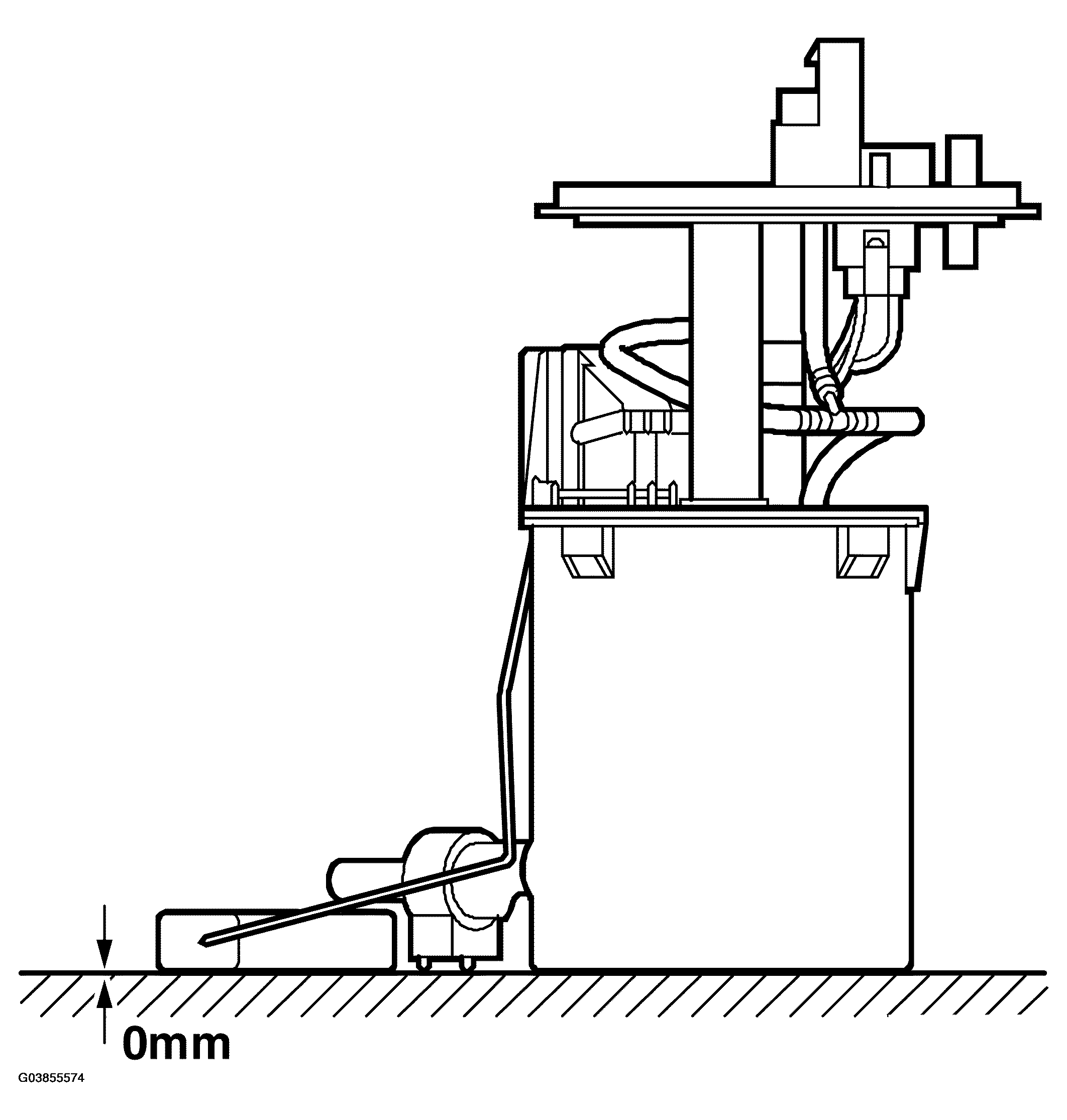

Fig 1: Identifying Fuel Level Sensor
G03855574Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL LEVEL SENSOR SPECIFICATION CHART

Resistance, empty tank Ohms 50+/-1.5
Resistance, full tank Ohms 425+/-6.5
