Changing control module, TCM: Fitting

WARNING: This page is about a different variant/trim than selected.

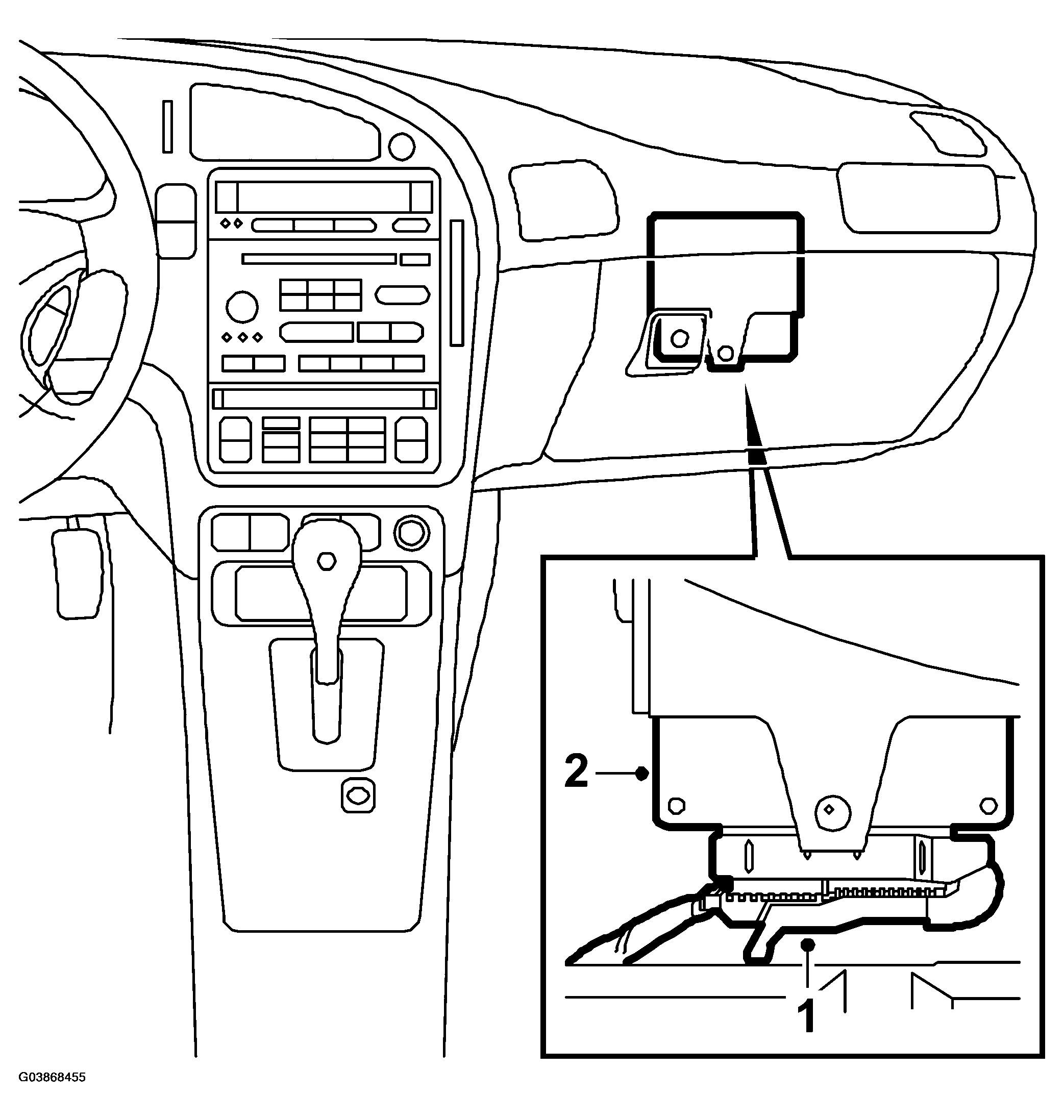

Fig 1: Illustration For Steps 1-2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Plug the connector into the control module.
Press the control module home so that the catches engage with it.
Refit the lower dashboard section by the passenger seat, see DASHBOARD .
If a new control module has been fitted, perform SERVICE PROGRAMMING (SPS) OF TCM .
If a new control module has been fitted it must be adapted, see ADAPTATION, RESETTING
