Navigation System Component Views

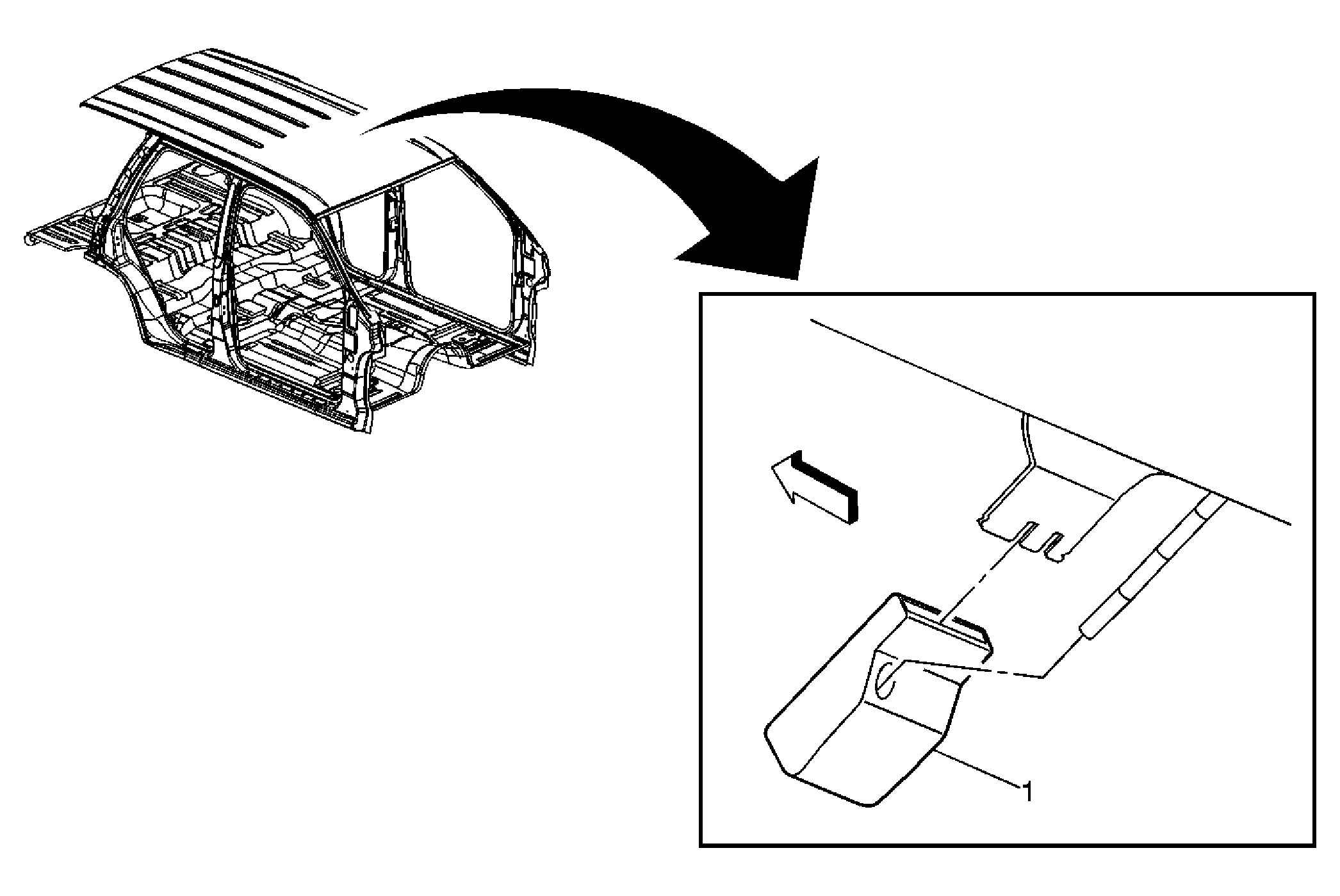

Fig 1: Global Positioning System (GPS) Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Global Positioning System (GPS) Antenna

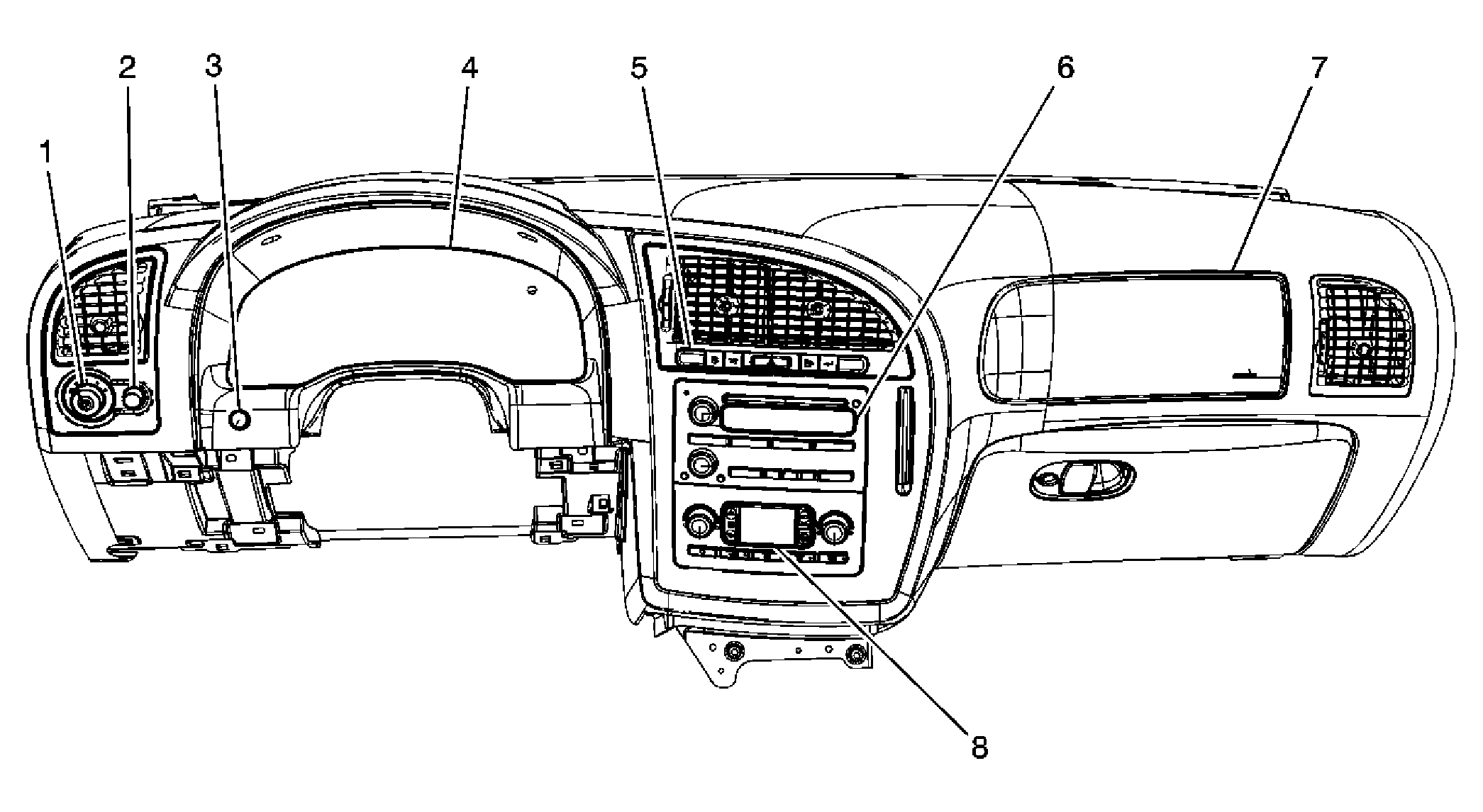

Fig 2: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch (CD6)
2	I/P Dimmer Switch
3	Interior Lamp Defeat Switch
4	Instrument Panel Cluster (IPC)
5	Driver Information Center (DIC) Switch
6	Radio
7	Inflatable Restraint I/P Module
8	HVAC Control Module
