Door Control Module Schematics

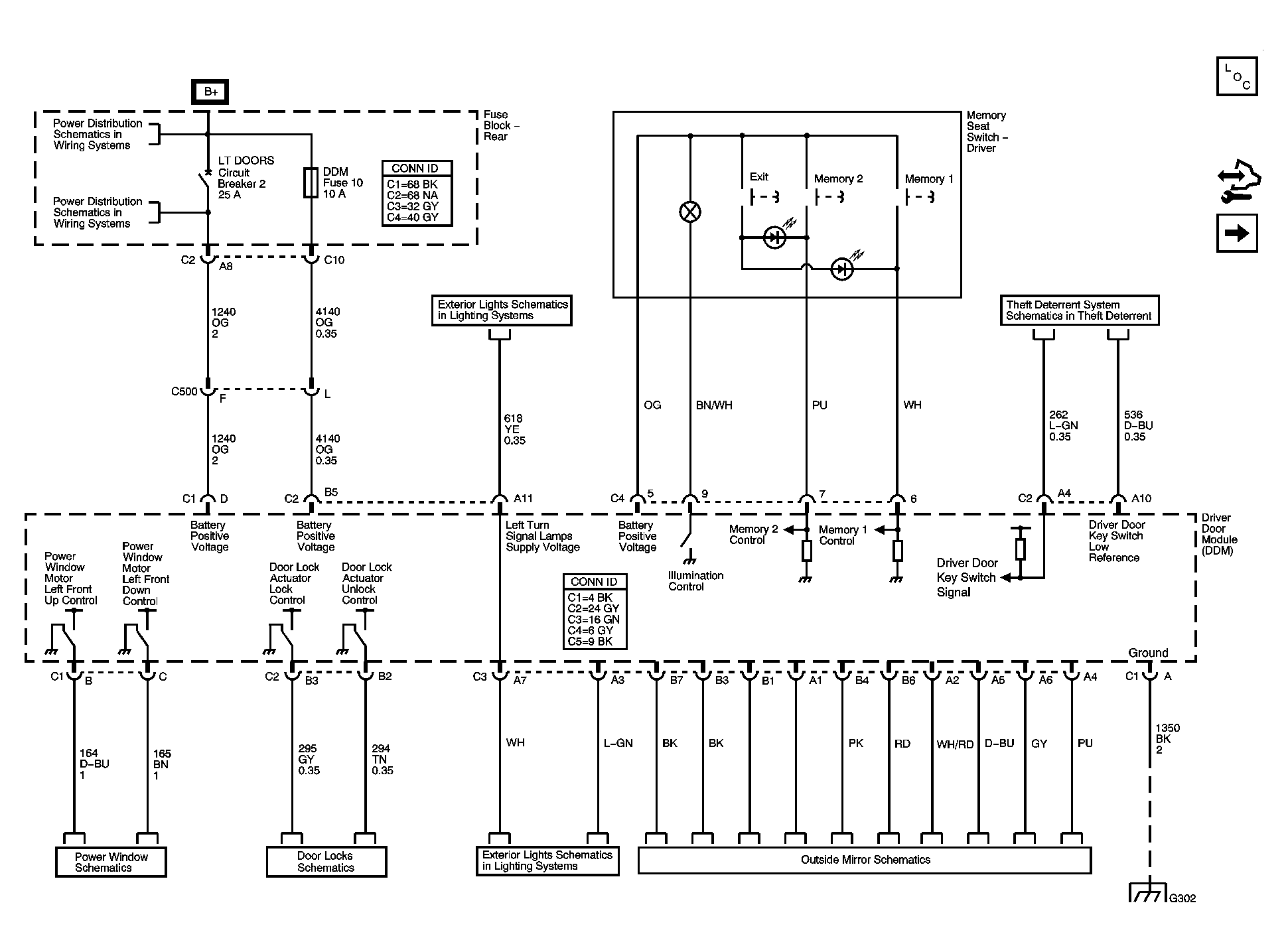

Fig 1: Power, Ground & Subsystem References Schematic

GM1533261

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data & Subsystem References Schematic

GM1533262

Courtesy of GENERAL MOTORS CORP.

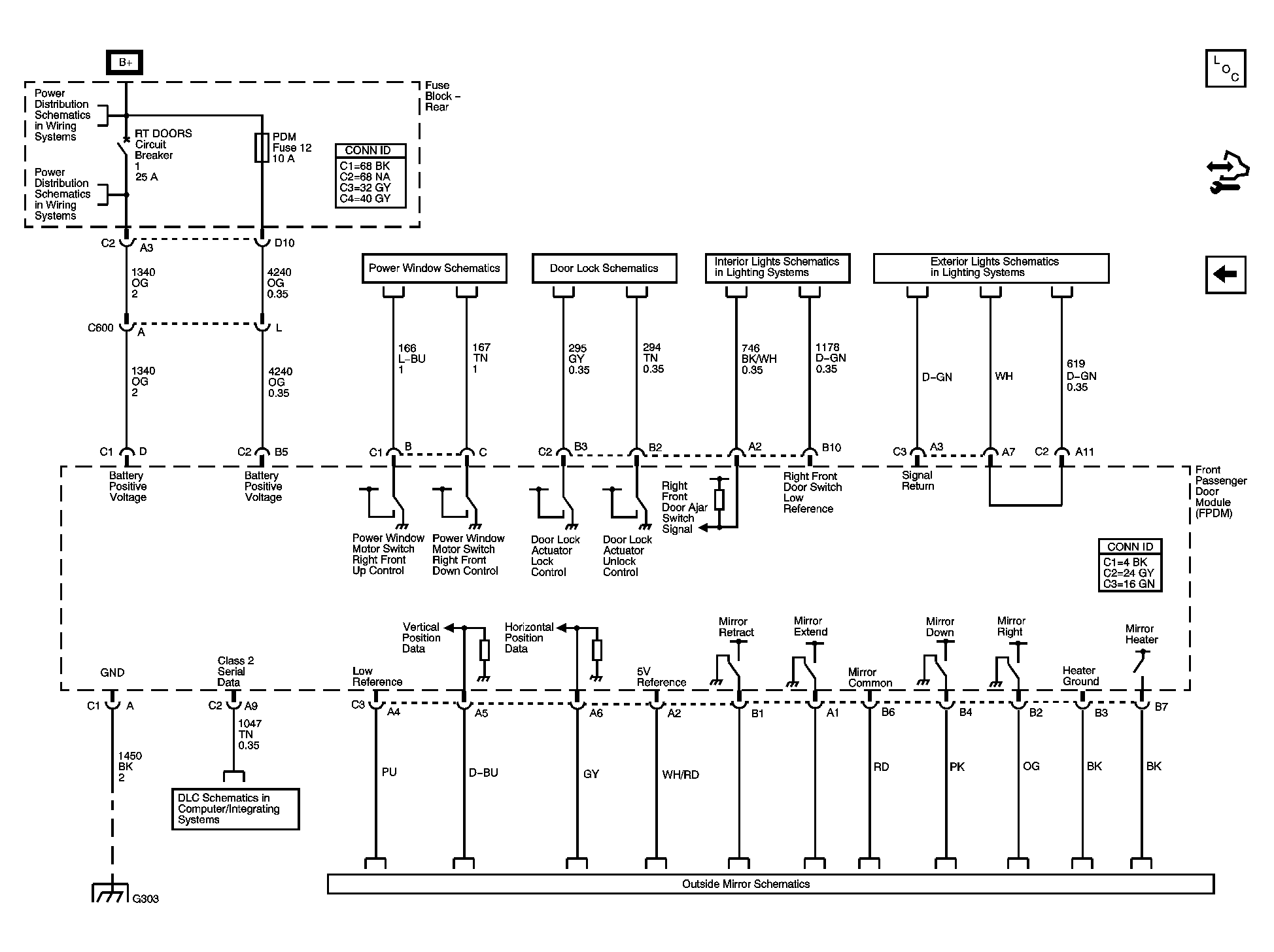

Fig 3: Front Passenger Door Schematic

GM1533263

Courtesy of GENERAL MOTORS CORP.
