Front Fender Liner: Service and Repair

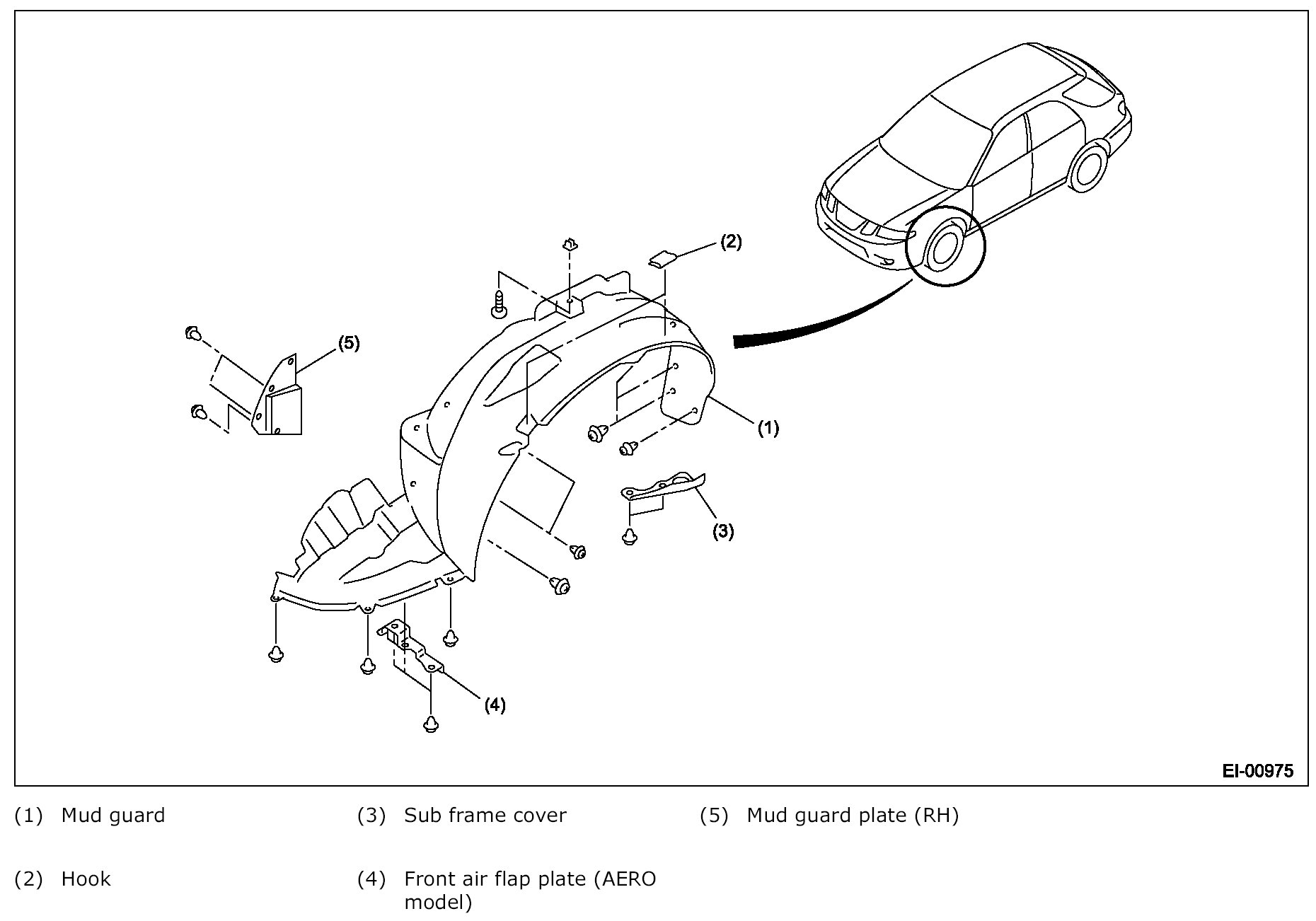

Mud Guard:

REMOVAL

Lift-up the vehicle.

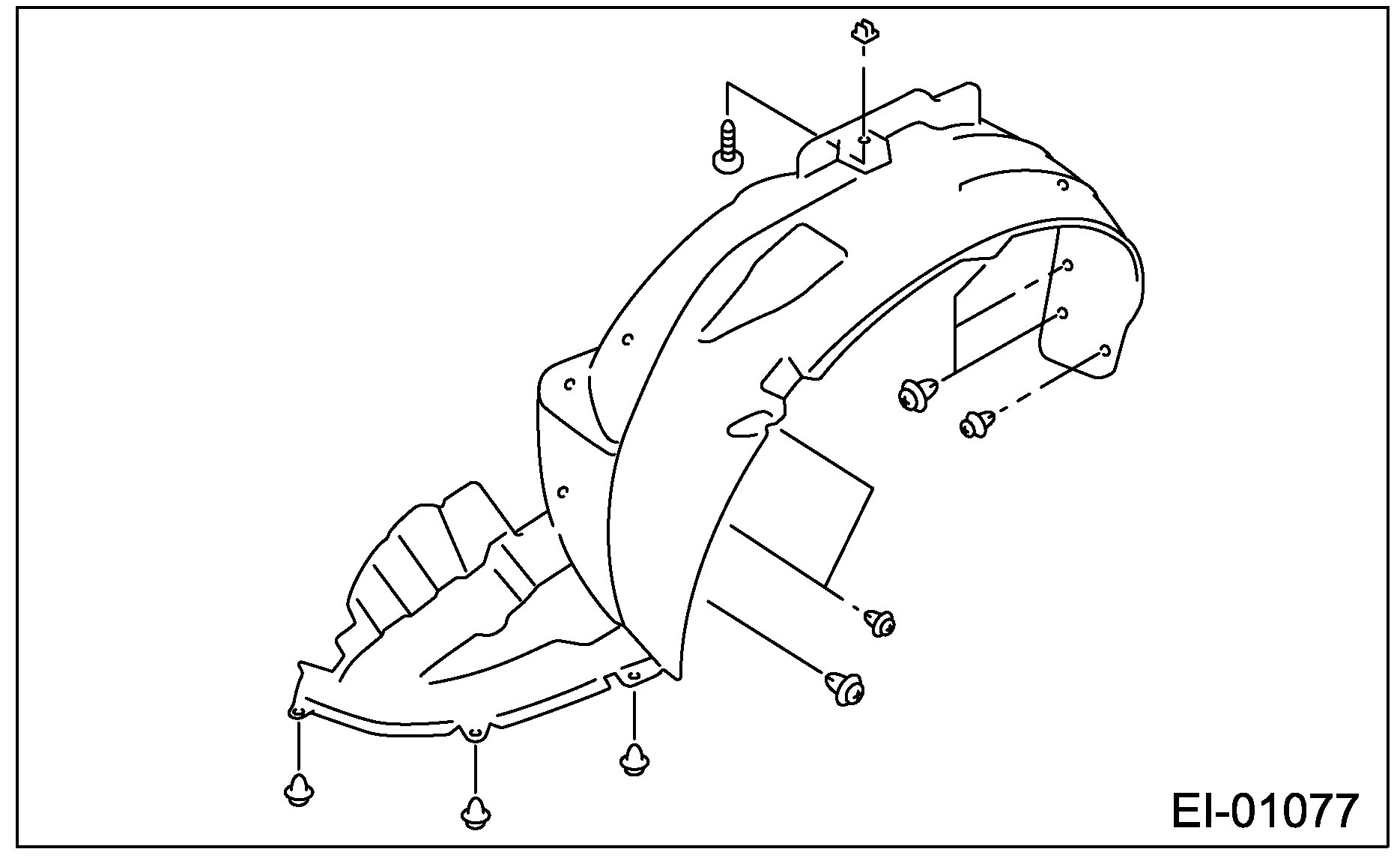

Remove the screws and clips to remove mud guard.







INSTALLATION

Insert the hook into body, and tighten it with screw and clip.

Tightening torque: 14 Nm (1.42 kgf-m, 10.3 ft-lb)
