Power Door Systems Component Views

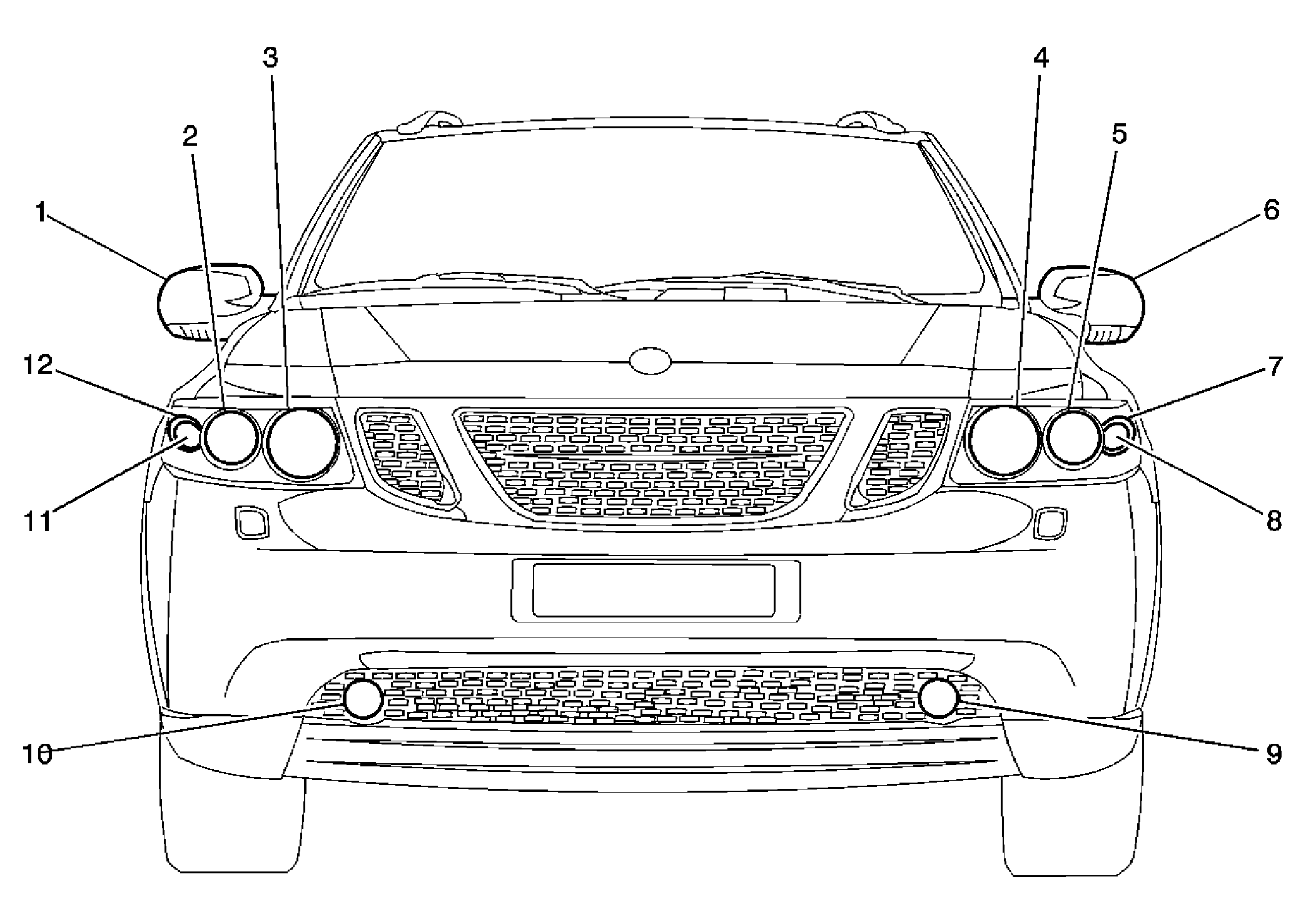

Fig 1: Component Locations - Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Headlamp - High Beam - Right
3	Headlamp - Low Beam - Right
4	Headlamp - Low Beam - Left
5	Headlamp - High Beam - Left
6	Outside Rearview Mirror - Driver
7	Marker Lamp - LF
8	Park/Turn Signal Lamp - LF
9	Fog Lamp - LF
10	Fog Lamp - RF
11	Park/Turn Signal Lamp - RF
12	Marker Lamp - RF

Fig 2: Identifying Components In Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver C3
2	Left Front Door Harness
3	Window Motor Connector - Driver
4	Window Motor - Driver
5	Door Latch Assembly - Driver C2
6	Door Latch Assembly - Driver
7	Door Latch Assembly - Driver C1

Fig 3: Identifying Components In Driver Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Components In Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor Connector - Front Passenger
2	Right Front Door Harness
3	Door Latch Assembly - Passenger C1
4	Door Latch Assembly - Passenger
5	Door Latch Assembly - Passenger C2
6	Window Motor - Front Passenger

Fig 5: Identifying Components In Front Passenger Door Module (FPDM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Passenger
2	Door Lock switch - Passenger
3	Heated Seat Switch - Passenger

Fig 6: Identifying Components In LR Door

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Components In Window Switch - LR

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Components In RR Door

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Components In Window Switch - RR

Courtesy of GENERAL MOTORS CORP.
