Grounding point G33P: Notes

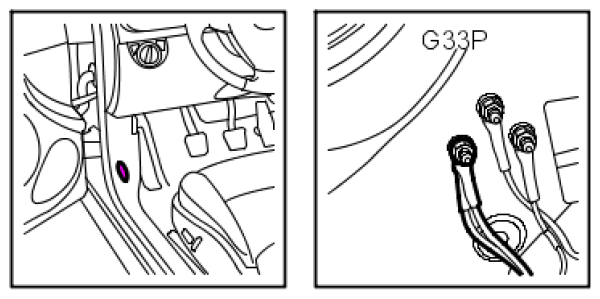

Fig 1: Identifying Grounding Point G33P
G05171324Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  By the floor below the left A-pillar (black tape)
