Radiator Fan System (Cars With A/C)

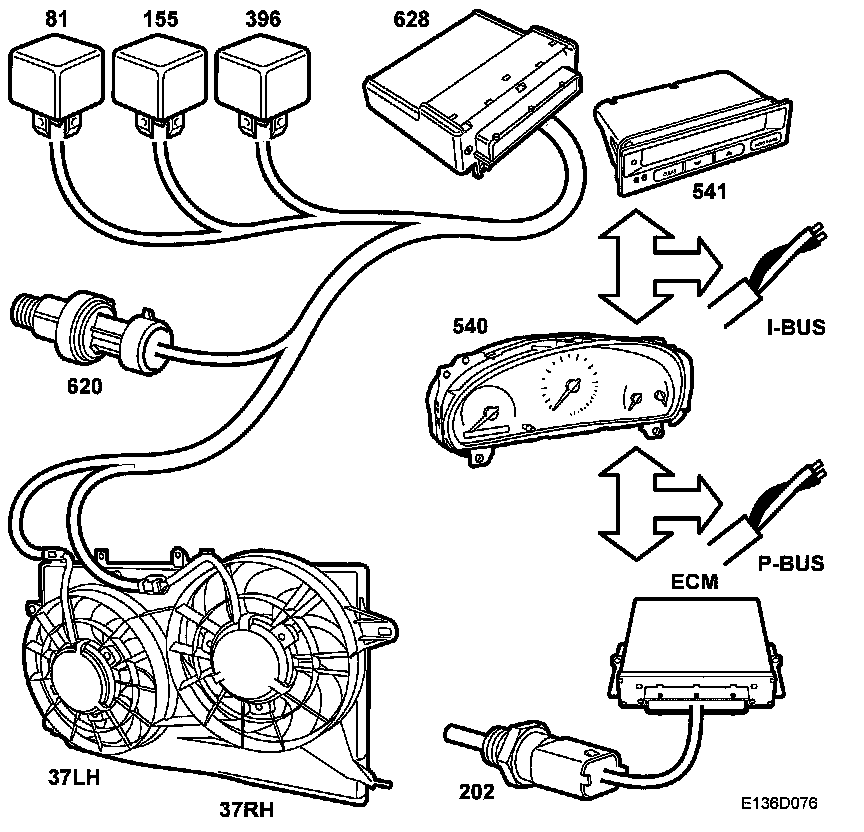

System Overview, Radiator Fan System (Cars With A/C)







^ Control module, DICE (628)
^ Relay, 2-speed radiator fan, low speed (155)
^ Relay, 2-speed radiator fan, high-speed (81)
^ Relay, high speed, RH radiator fan (396)
^ Motor, radiator fans (37LH, 37RH)
^ Engine management system (430, 589, 595, 600, 608, 655)
^ Main instrument display (540)
^ Engine coolant temperature sensor, engine management system (202)
^ Pressure sensor, A/C (620)
^ SID (541)
