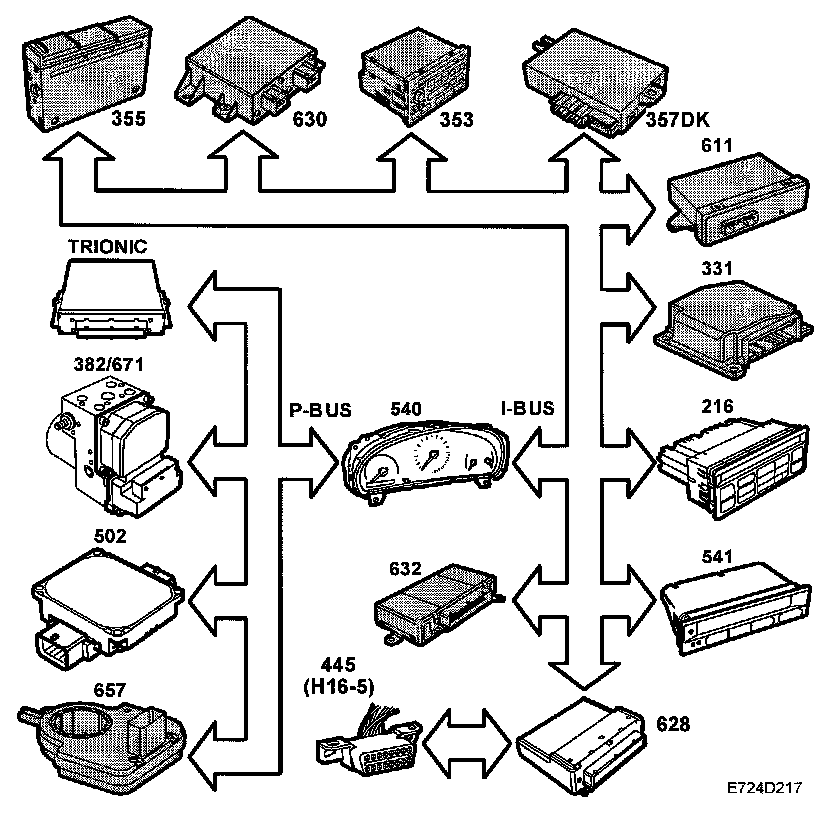

Control Module Bus Outputs

Control Module Bus Outputs







^ Engine torque, used by TCM (502)
^ Accelerator pedal position, used by TCM (502)
^ Kickdown, used by TCM (502)
^ Engine speed, used by TCM (502), ACC (216) and MIU (540)
^ Engine coolant temperature, used by ACC (216), MIU (540) and DICE (628)
^ Engine running, used by ACC (216)
^ Turbo gauge reading, used by MIU (540)
^ CHECK ENGINE, used by MIU (540)
^ SHIFT UP, used by MIU (540)
^ CRUISE lamp, used by MIU (540)
^ Fuel consumed since start, used by MIU (540)
^ Diagnostics, used by DICE (628)/diagnostic tool
^ Pedal position, used by TC/ABS (382) / ESP (671)
^ Engine torque, used by TC/ABS (382) / ESP (671)
^ Engine speed, used by TC/ABS (382) / ESP (671)

More detailed information on control module bus outputs can be found in the Bus Communication.
