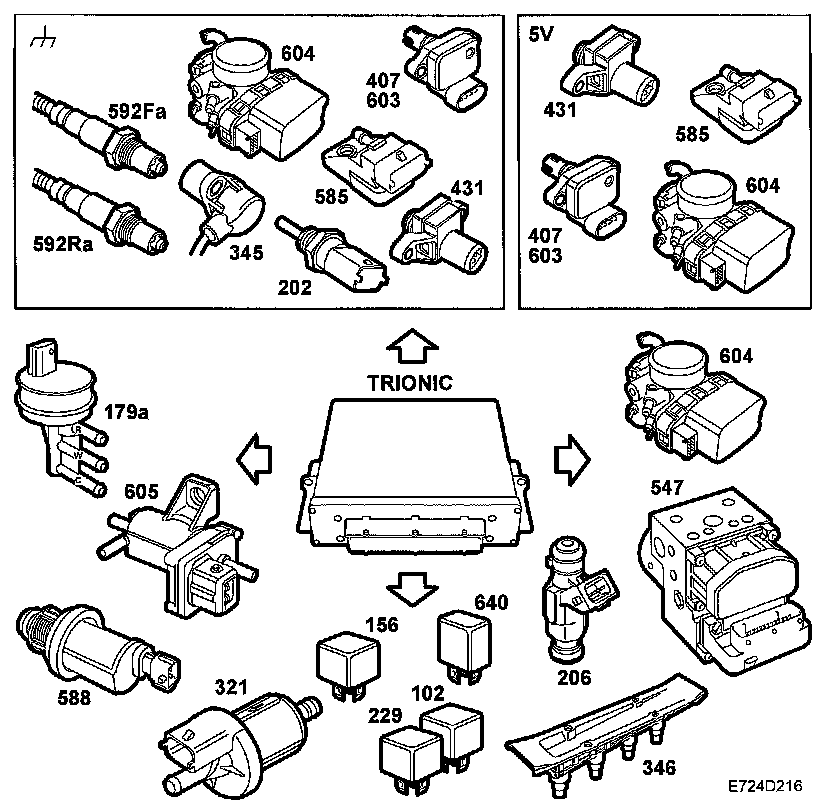

Control Module Outputs

Control Module Outputs







^ Sensor ground, reference ground
^ 5 V supply to sensor
^ Main relay and fuel pump relay
^ A/C relay (156)
^ Throttle motor
^ Relay, limp-home solenoid (640)
^ Charge air control valve (179a)
^ Control valve, bypass (605)
^ EVAP canister purge valve (321)
^ EVAP canister shut-off valve (588)
^ Injectors (206)
^ Ignition discharge module (346)
