Anti-Theft Alarm - Wagon

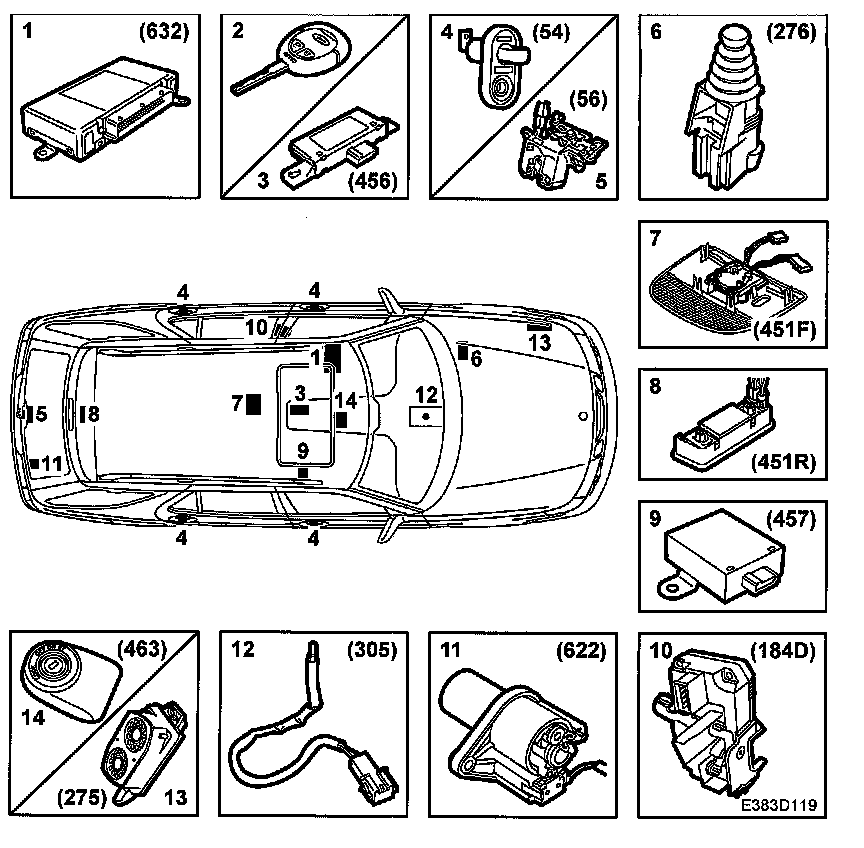

Main Components, Anti-theft Alarm (5D)







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control (456)
4. Door switches (54D, P, RL, RR)
5. Switch, luggage compartment lighting (56)
6. Bonnet switch, anti-theft alarm (276)
7. Glass breakage sensor, front (451F)
8. Glass breakage sensor, rear (451R)
9. Tilt sensor (457)
10. Key switch in driver's door (184D)
11. Microswitch, luggage compartment lock (622)
12. LED, anti-theft alarm (305)
13. Siren, anti-theft alarm (275)
14. Antenna unit, immobiliser (463)
