Ignition Control Module: Service and Repair

Ignition Discharge Module

IMPORTANT: Before replacing the ignition discharge module, carry out Extended ignition discharge module diagnose for Trionic 7.

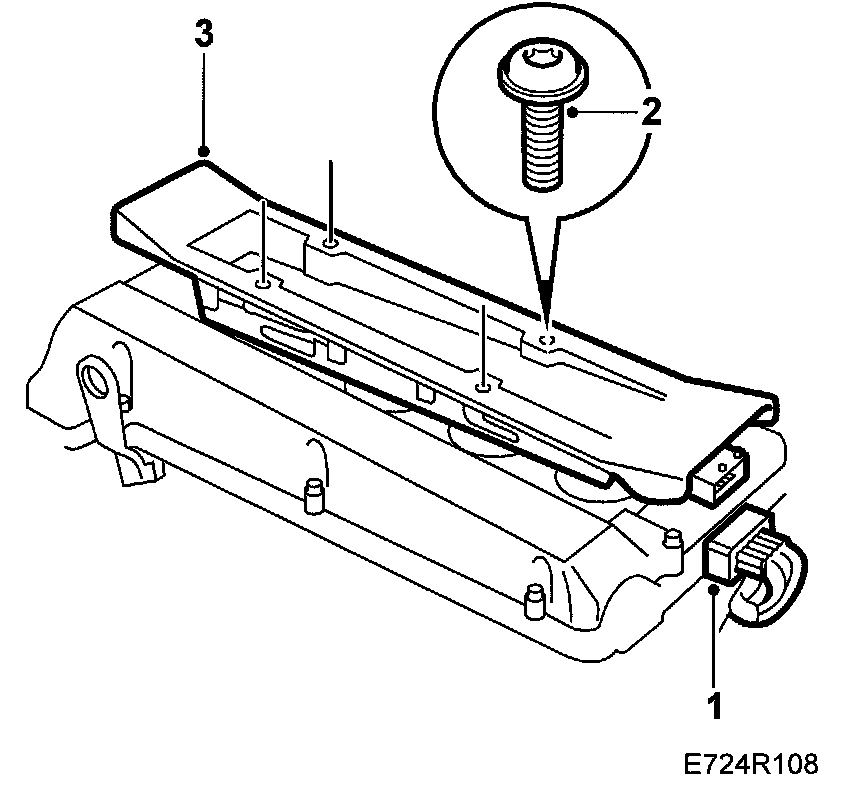

To remove







1. Unplug the 10-pin ignition discharge module connector.
2. Remove the 4 screws.
3. Lift up the module.

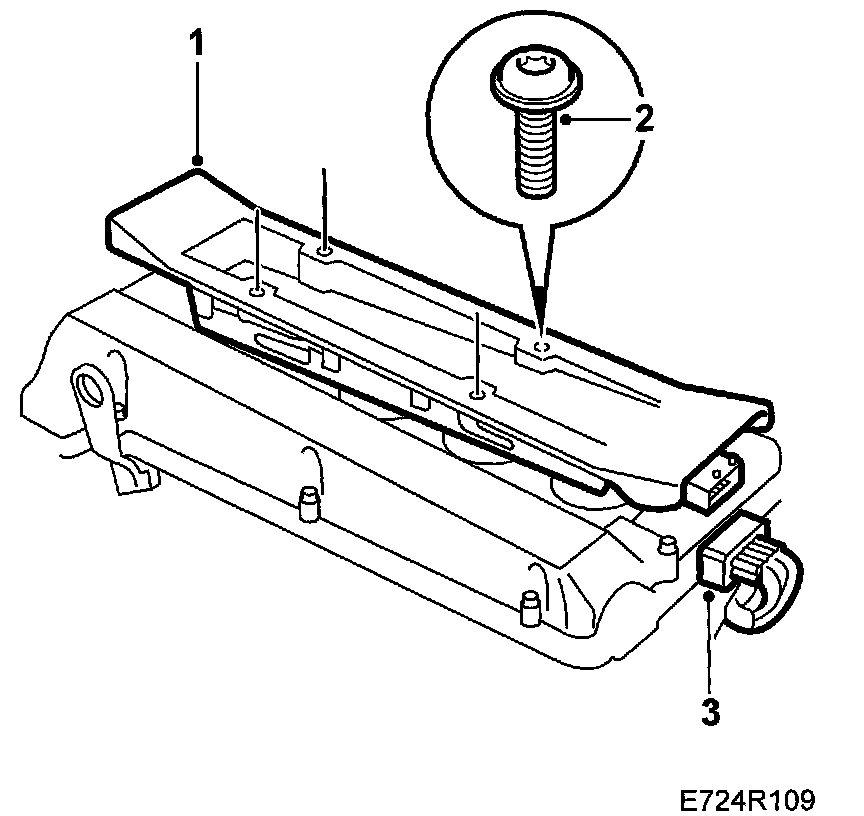

To fit







1. Apply Krytox (part no. 30 19 312) to the rubber seals and fit the ignition discharge module.
2. Fit the 4 screws.
Tightening torque 11 Nm (8.1 lbf ft)
3. Spray the 10-pin ignition discharge module connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
