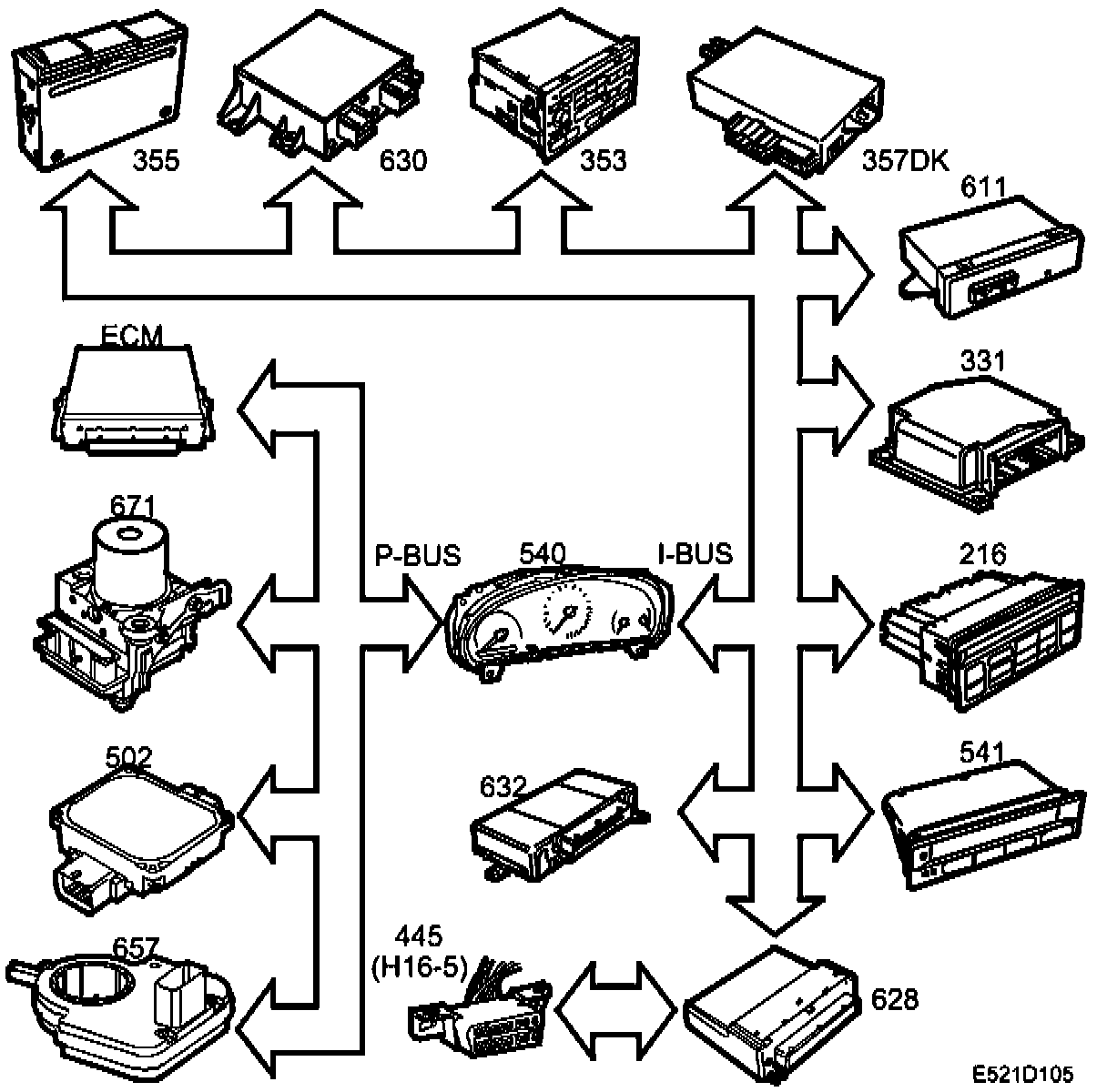

Control Module Inputs, Bus

Control Module Inputs, Bus
^ Engine speed (ECM)
^ Engine torque (ECM)
^ Pedal position (ECM)
^ Current gear ratio
On automatic transmissions, the value from TCM is given
For manual gearboxes, the value is calculated by the ECM
^ Steering wheel angle sensor (657)

See also Bus and diagnostics communication, Control module connections.
