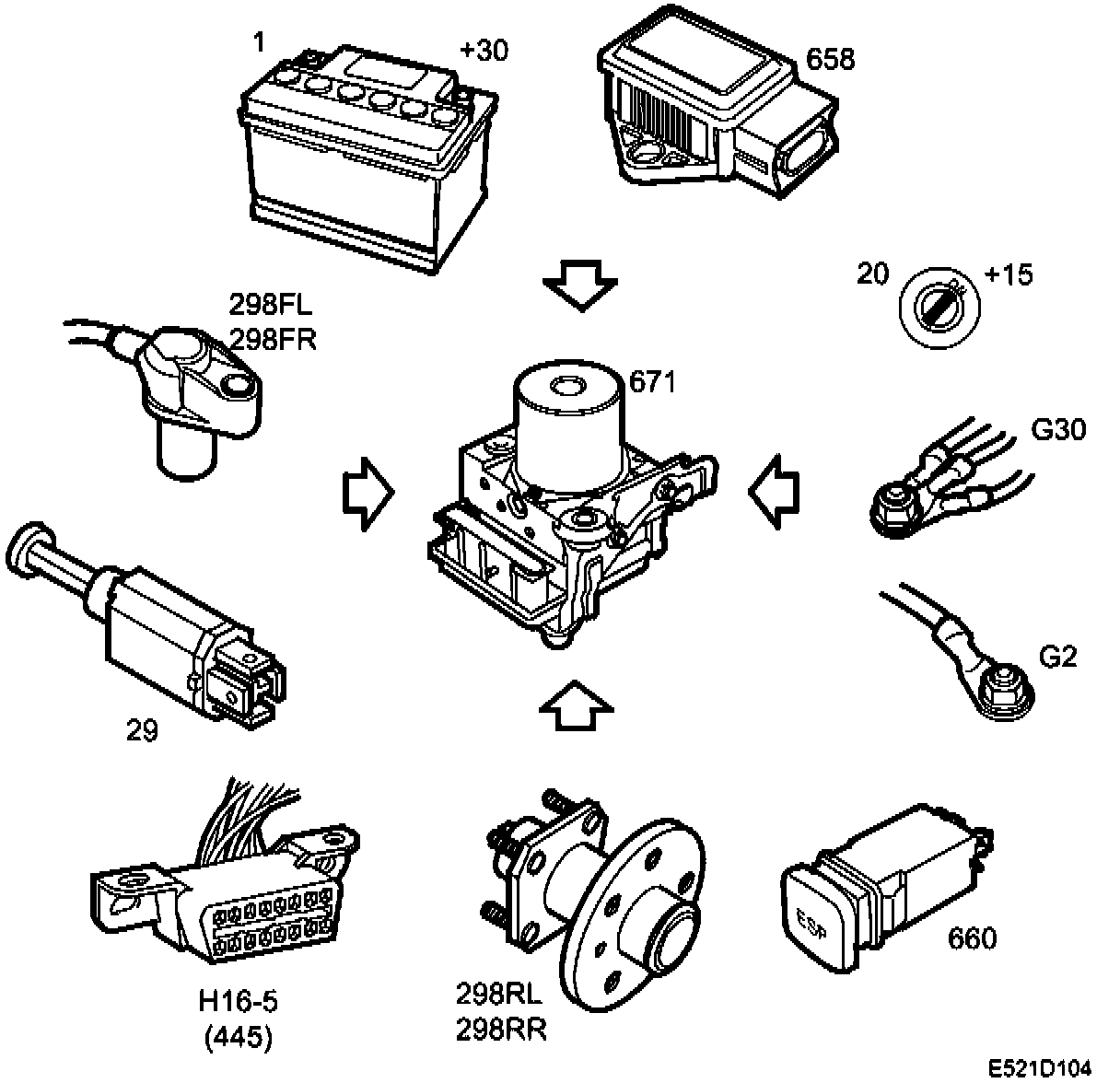

Control Module Inputs

Control Module Inputs
^ Power supply +30 (1)
^ Power supply +15 (2)
^ Ground (G30, G2)
^ Speed sensor, front wheel
^ Speed sensor, rear wheel
^ Brake Light Switch
^ Diagnostics communication
^ ESP ON/OFF switch
^ Steering wheel angle sensor (657)
^ Yaw rate sensor (658)
