Connector H16-7

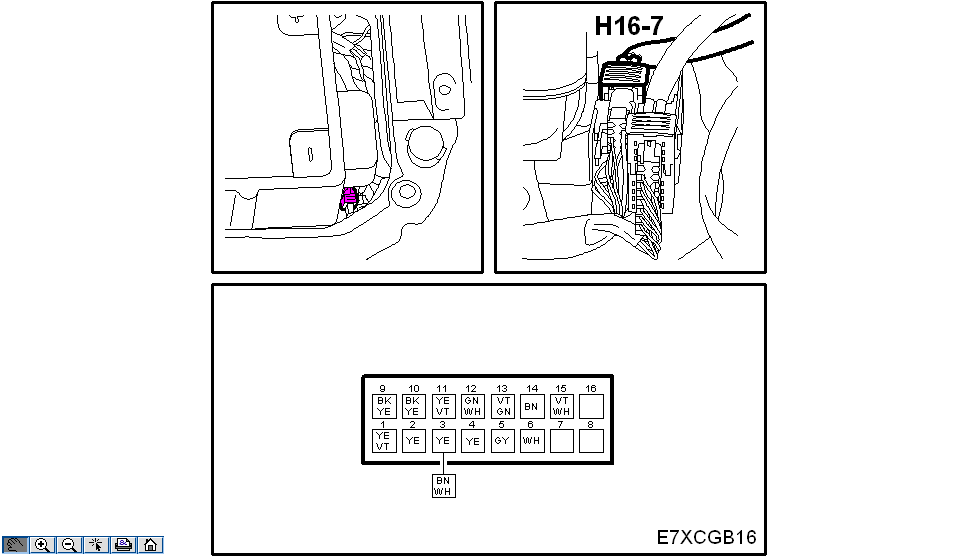

Fig 1: Identifying Connector H16-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
