To remove

  1. Turn the steering wheel and undo the two screws.

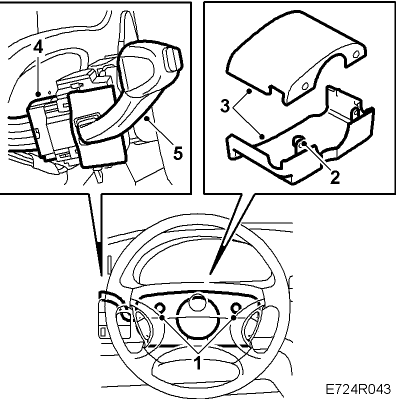

    Fig 1: Illustration For Step 2-5
    G05035107Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the lower screw.
  3. Remove the covers. Pay attention to the catch on the covers (applies when fitting also).
  4. Unplug the connector.
  5. Remove the switch.
