Manifold Pressure/Vacuum Sensor: Diagrams



Component Connector End Views

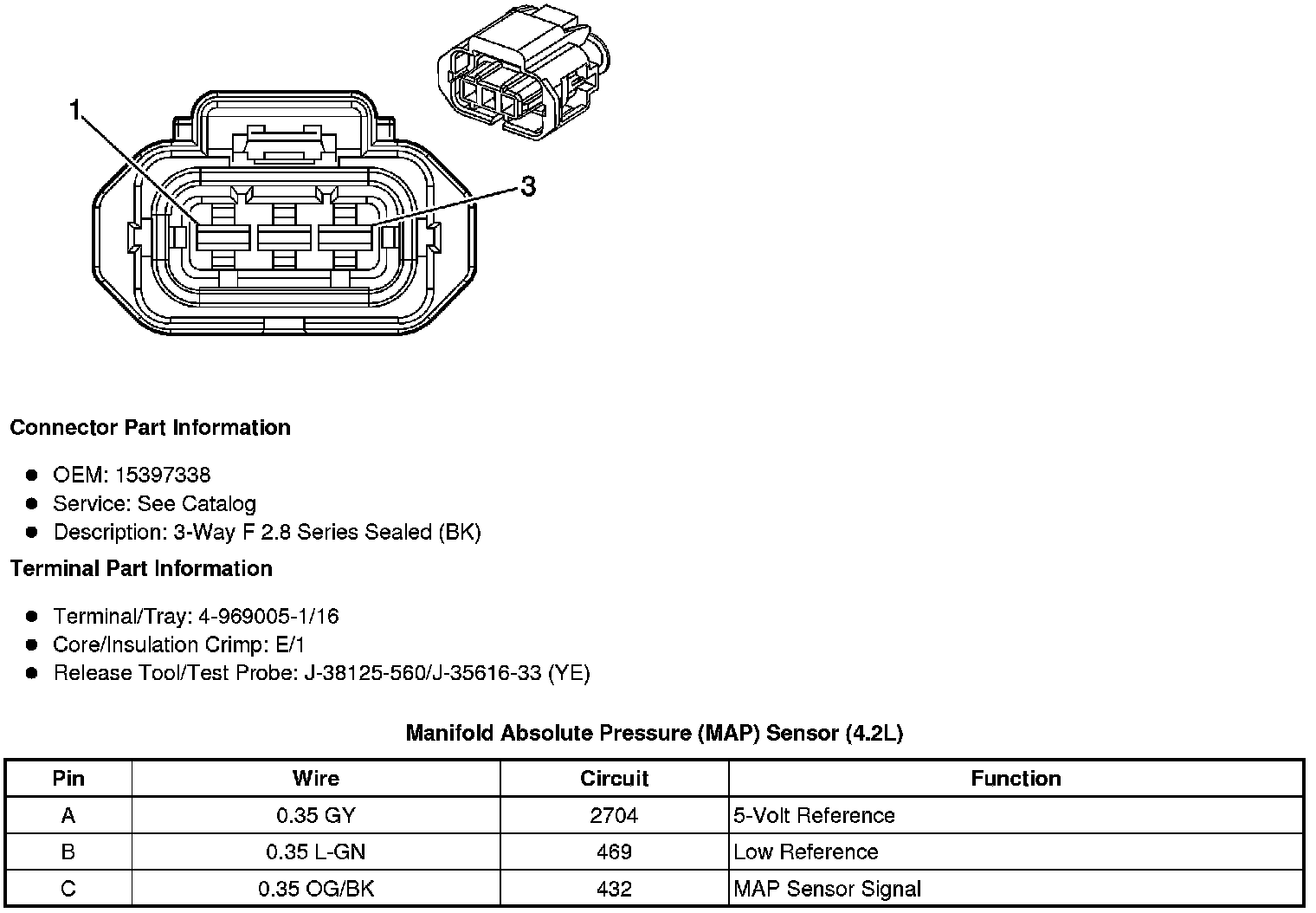

Manifold Absolute Pressure (MAP) Sensor (4.2L)





Manifold Absolute Pressure (MAP) Sensor (5.3L)
