Transmission Position Sensor/Switch: Description and Operation

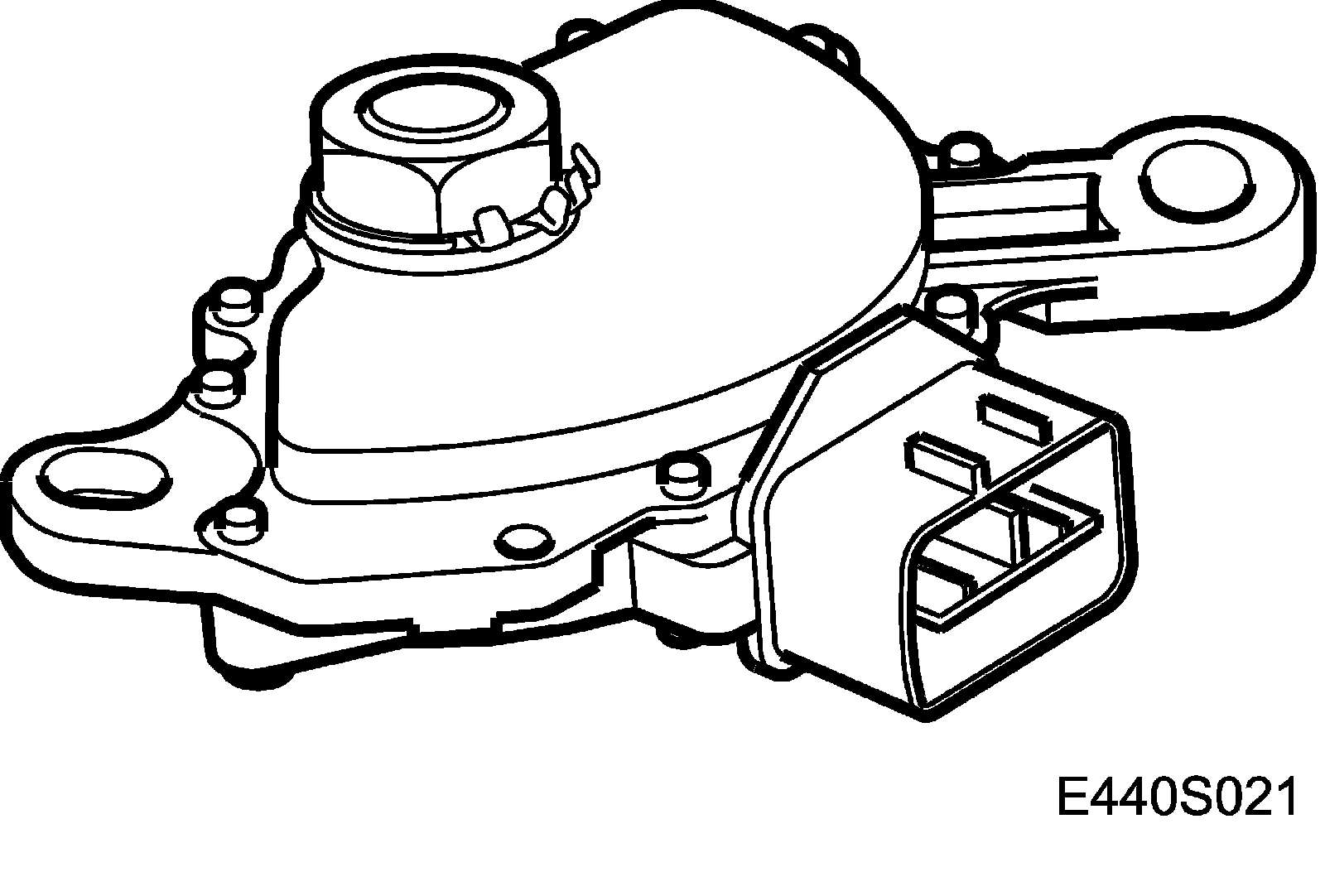

Gear selector position sensor








Location On the transmission casing

Fitting Adjustment required for proper operation

Type Slip contacts

Power supply (+15 circuit) IG contact

Function

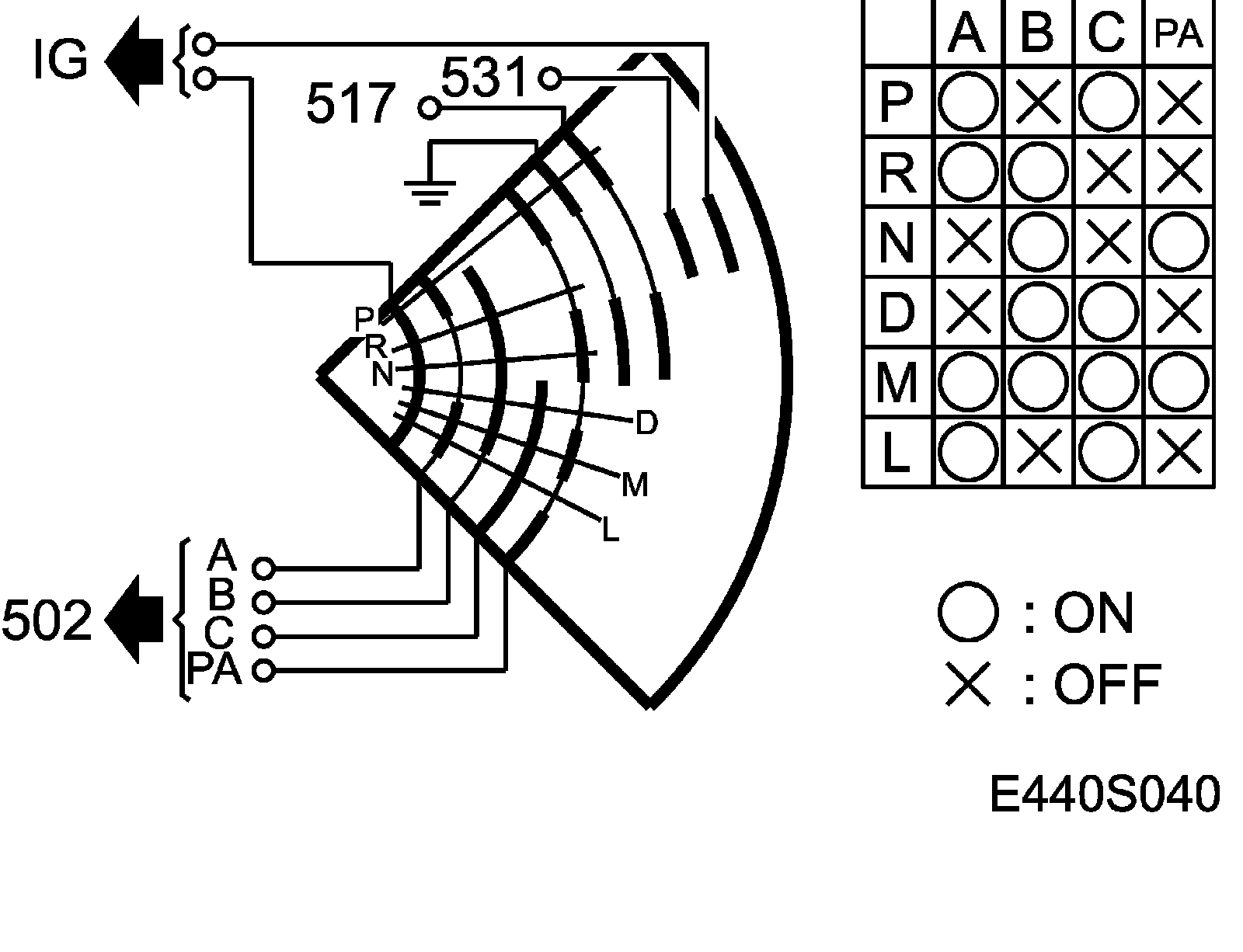

Selector lever position A, B, C and PA contacts

Starter motor interlock Contacts ST, M

Reversing lights Contacts E, D

Resistance

Open contact OL

Closed contact <5 Ohm
