Transmission Control Module (TCM), (Part 1/2)



Transmission Control Module (TCM), (Part 1/2)

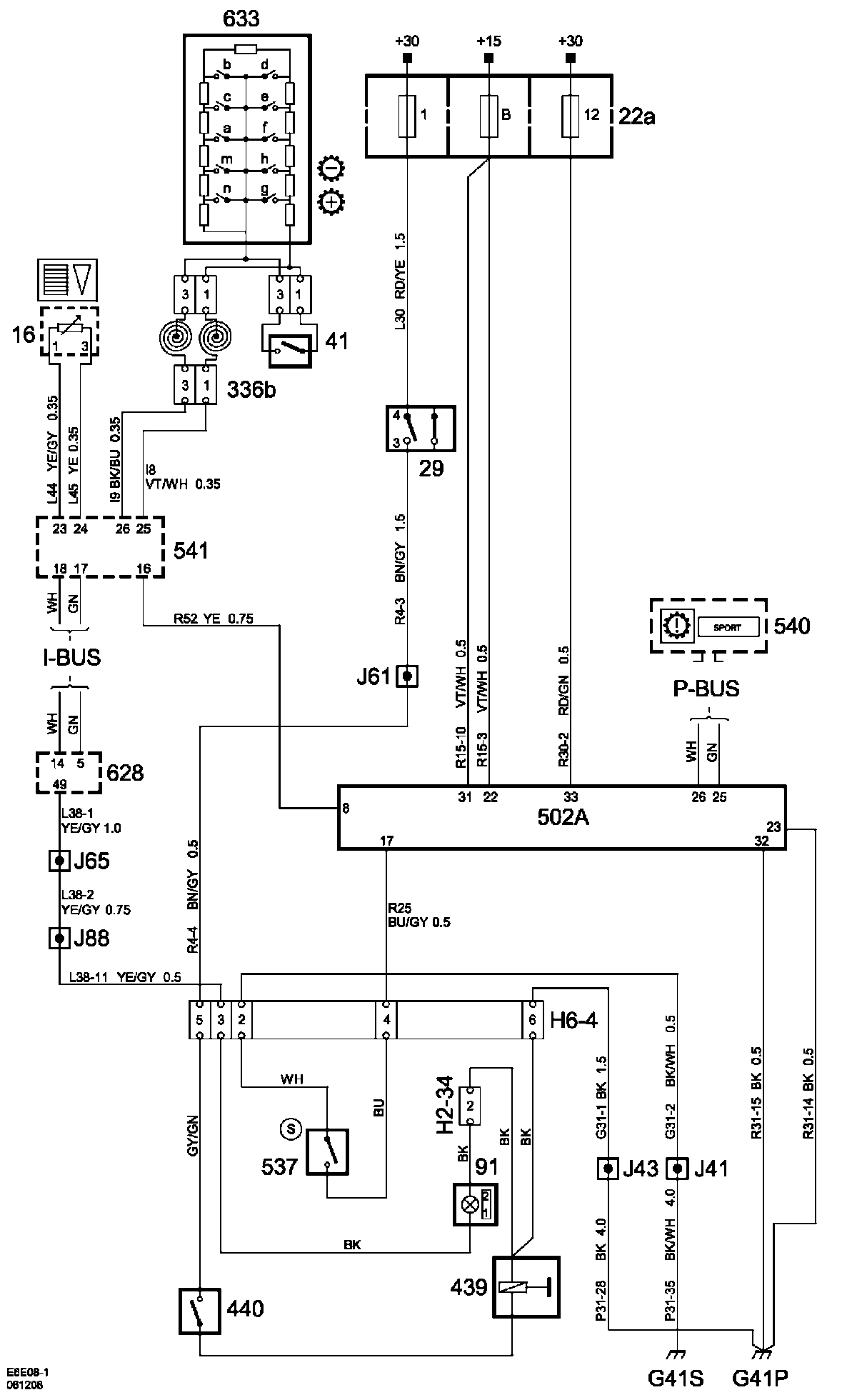

Transmission Control Module (TCM), (Part 1/2):






List of components

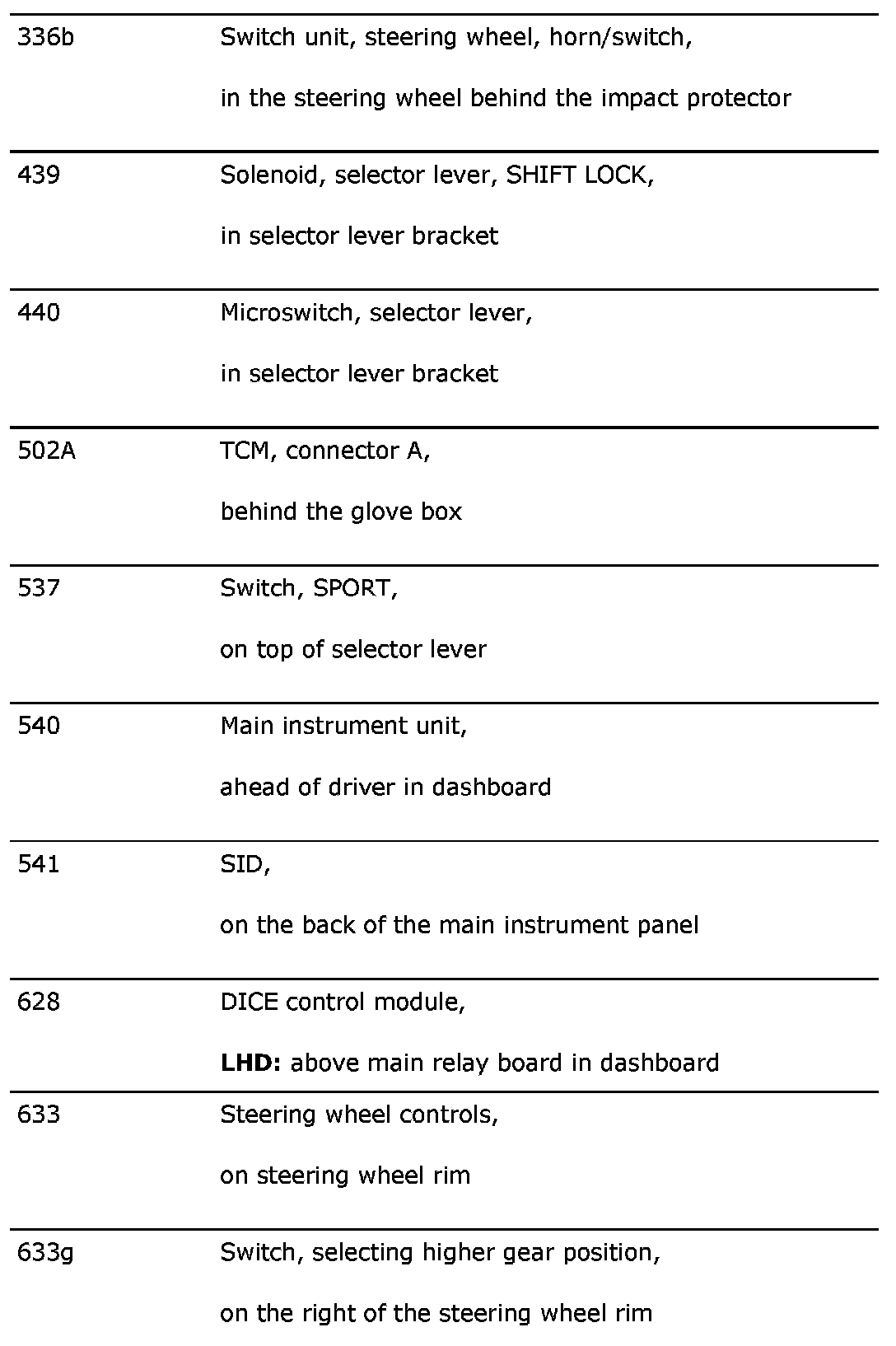

List Of Components (Part 1):




List Of Components (Part 2):

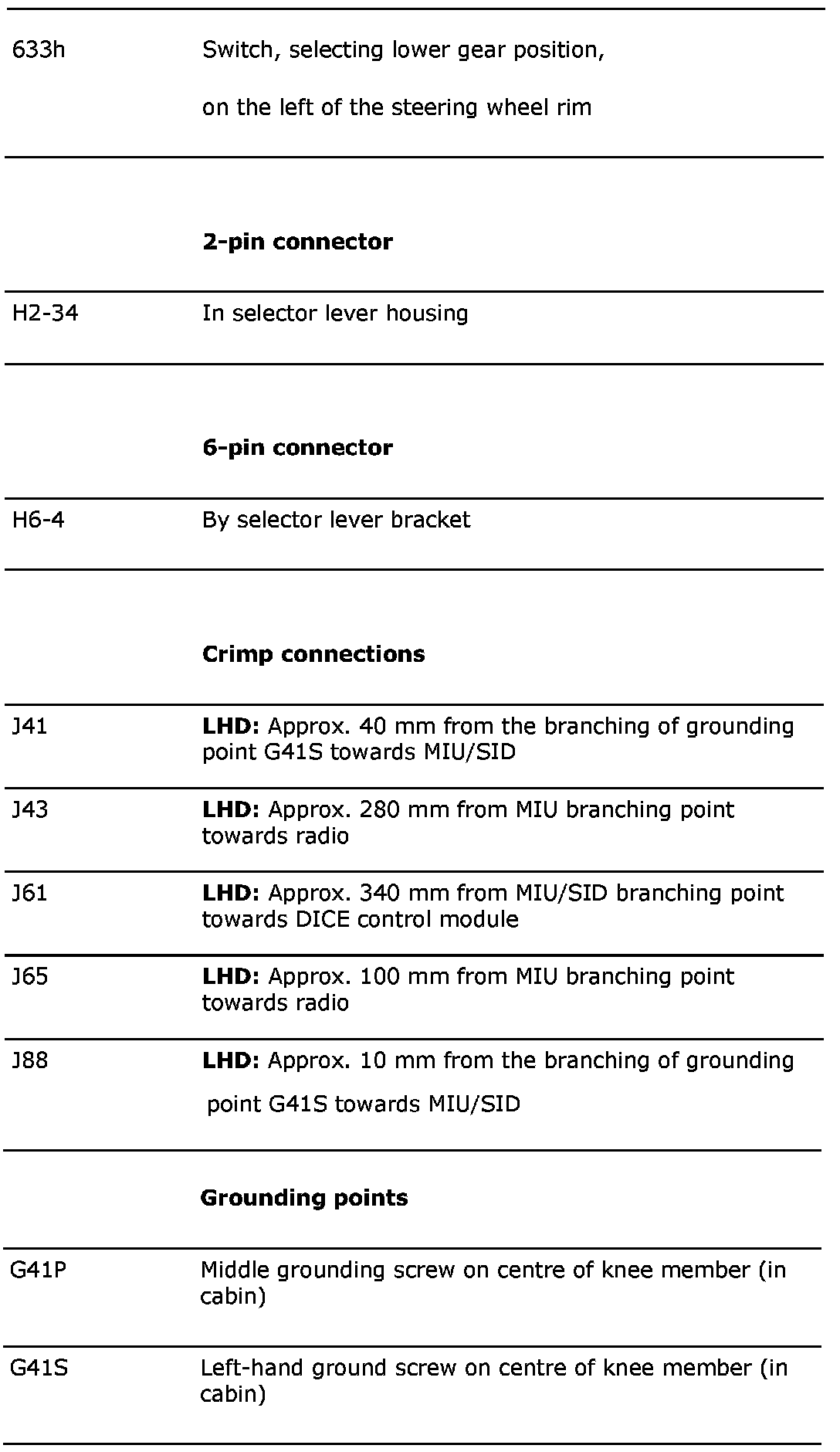

List Of Components (Part 3):
