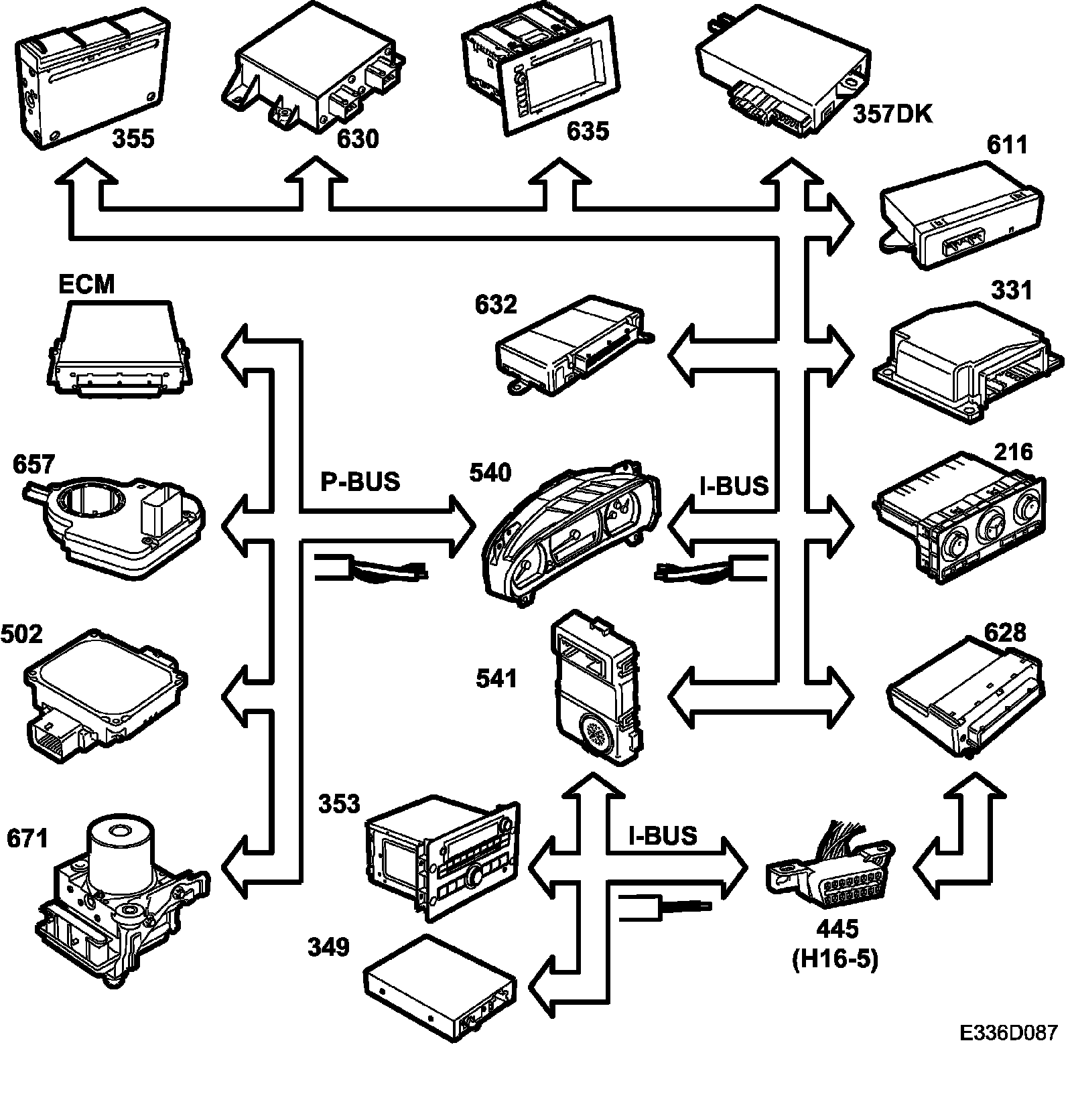

Control Module Bus Outputs

Control module bus outputs





^ Maximum permissible torque (used by the engine control system)
^ Gear selector position (used by the engine control system and MIU) (430/600, 540)
^ Message addressed to SID (541), HIGH TRANSMISSION FLUID TEMP. (used by SID)
^ CHECK GEARBOX lamp (used by MIU) (540)
^ SPORT (used by the engine control system and MIU) (430/600, 540
^ Selected gear 1 - 5 when gear changing manually, (used by MIU)
