Control Module Inputs

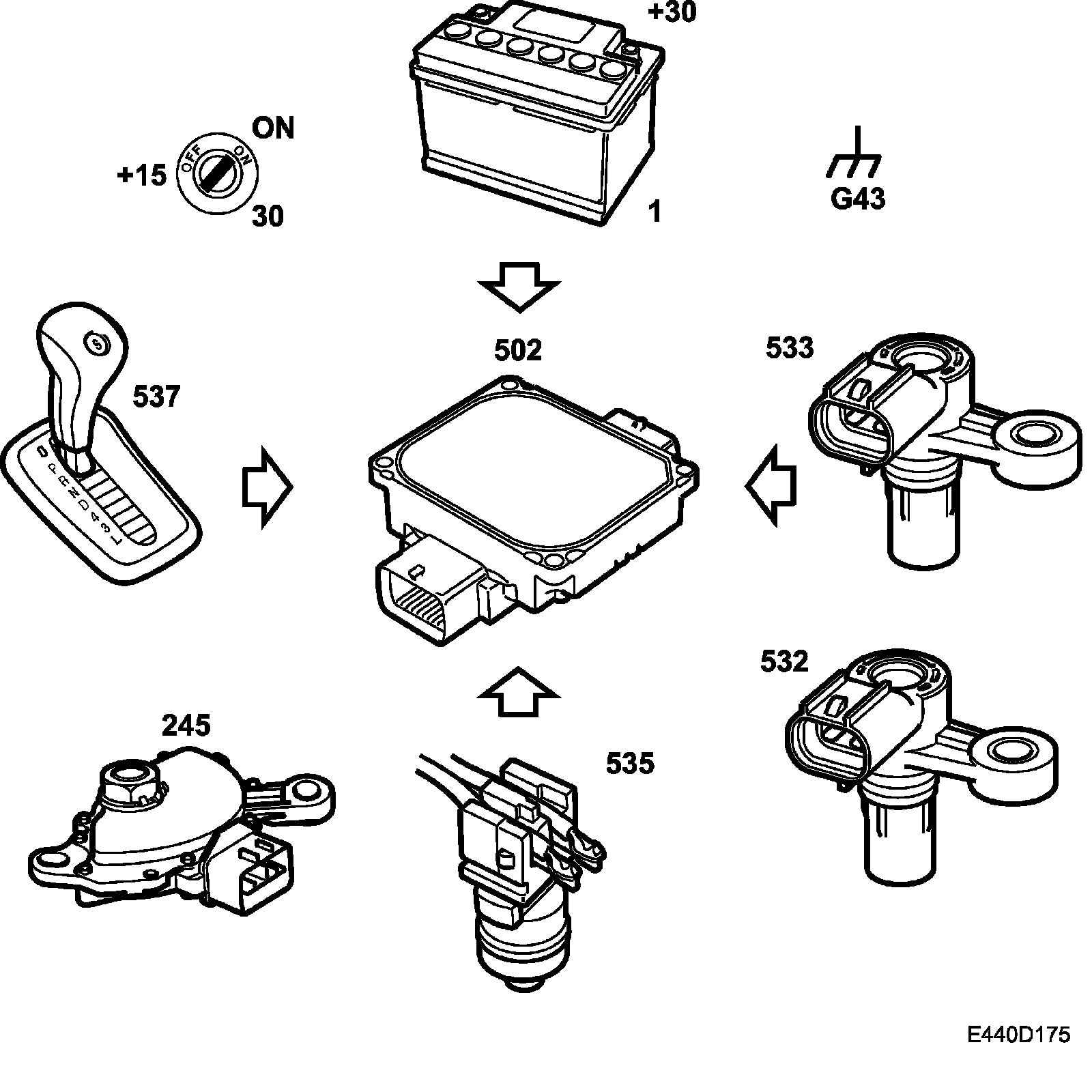

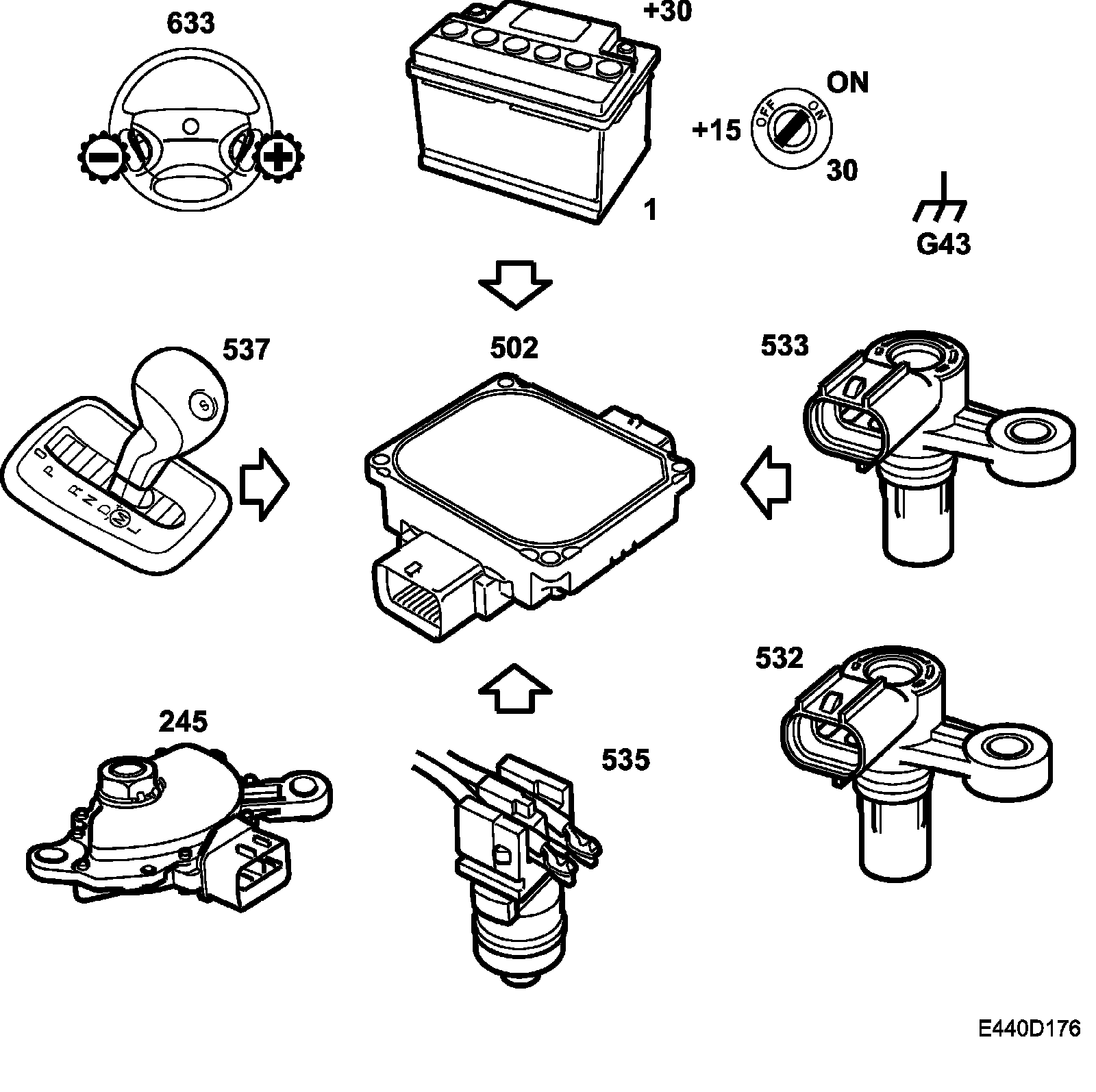

Control module inputs








^ Battery voltage +30 (A33)
^ Battery voltage +15 (A31)
^ Ground (G43), see ->.
^ Speed sensor, input shaft (532)
^ Speed sensor, output shaft (533)
^ Temperature sensor, transmission fluid (535)
^ Gear selector position sensor (245)
^ Switch, SPORT (537)
^ Switch, up and down gear changing, pin 8 (A)
