Engine Controls Schematics

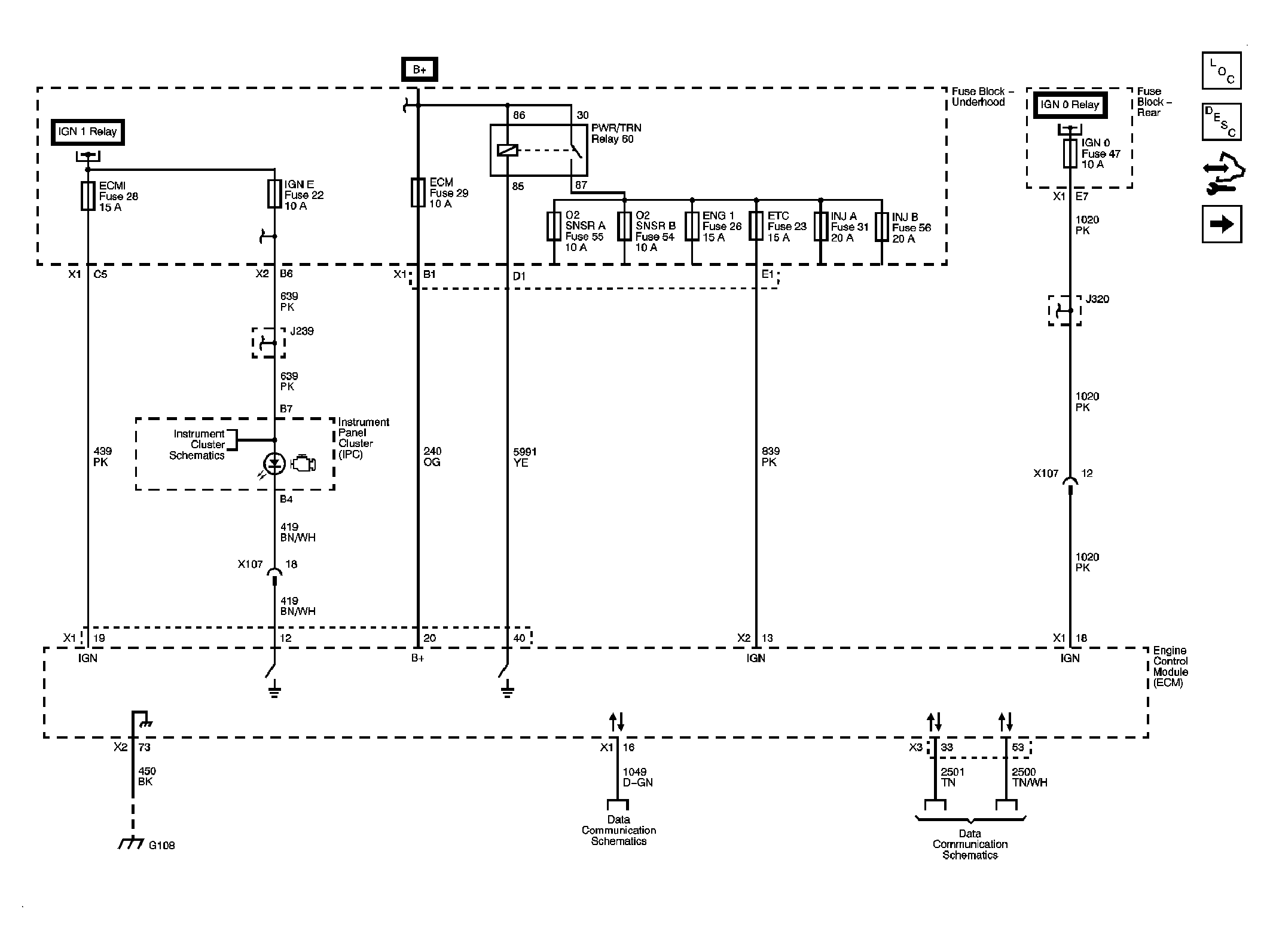

Fig 1: Module Power, Grounds, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

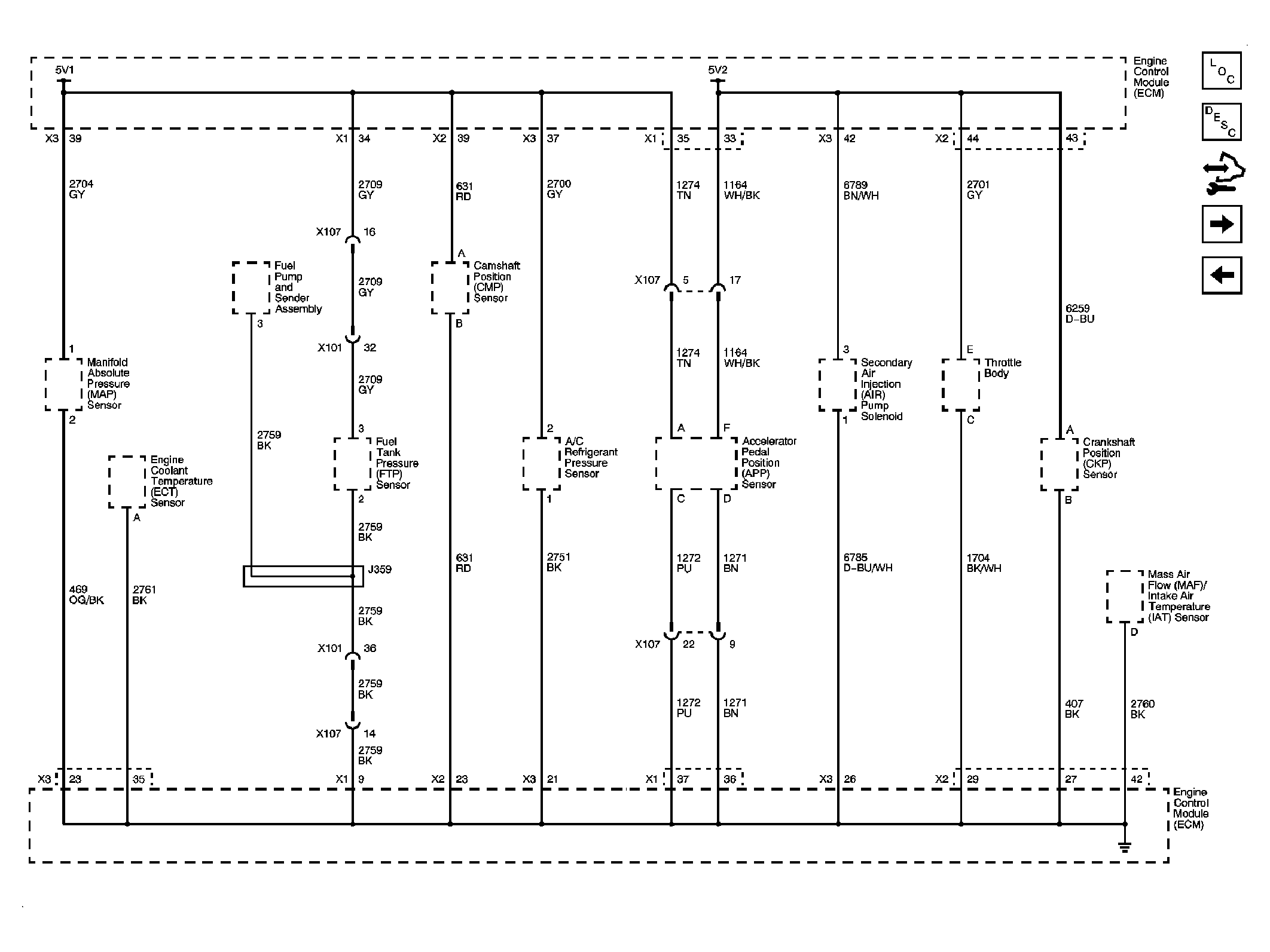

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - MAF, Pressure and Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - Electronic Throttle Actuator Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition Coils 1, 3 and 5 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition Coils 2, 4 and 6 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

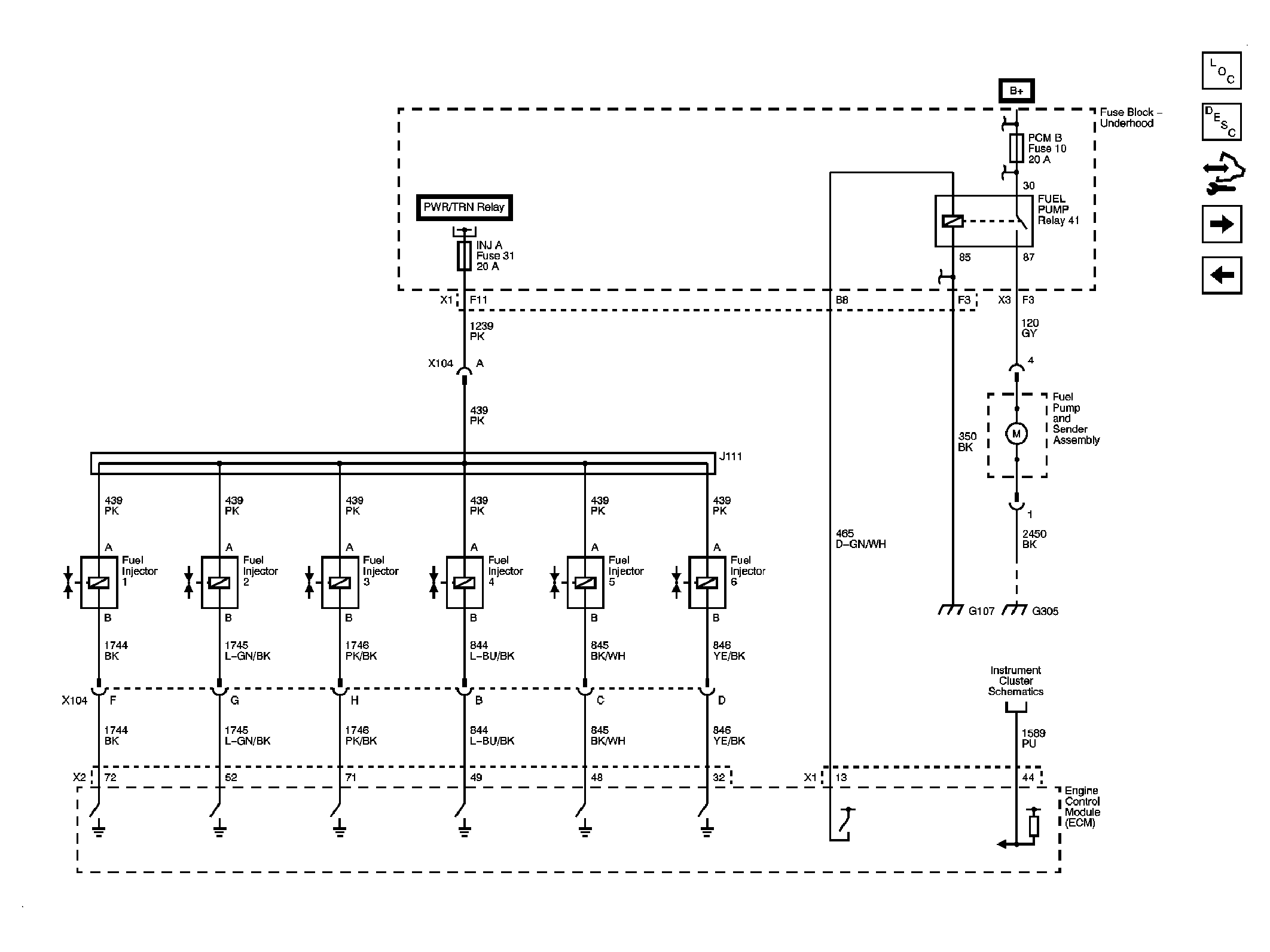

Fig 9: Fuel Controls - Fuel Pump and Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

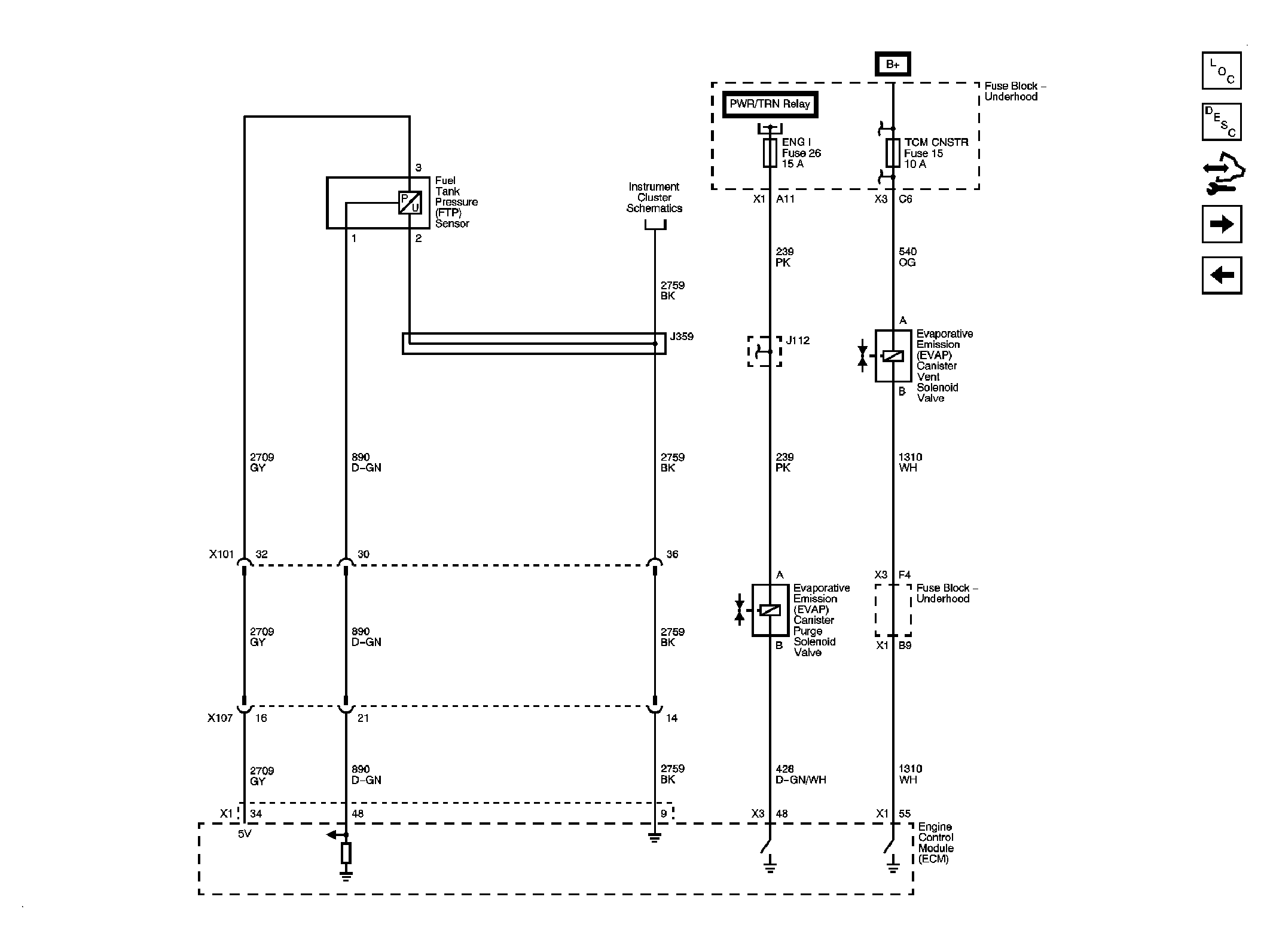

Fig 10: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

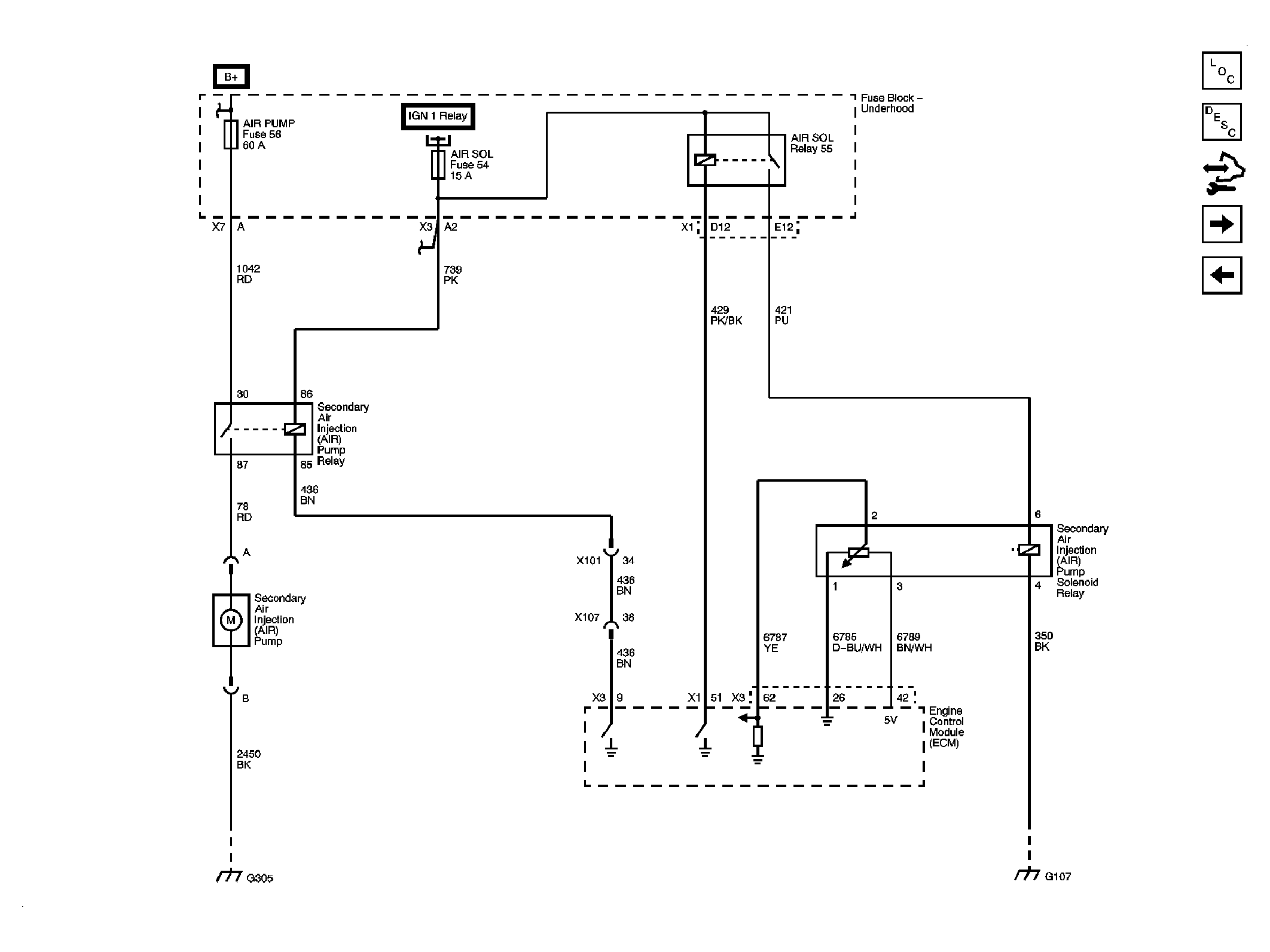

Fig 11: Device Controls - K18 Schematic

Courtesy of GENERAL MOTORS CORP.

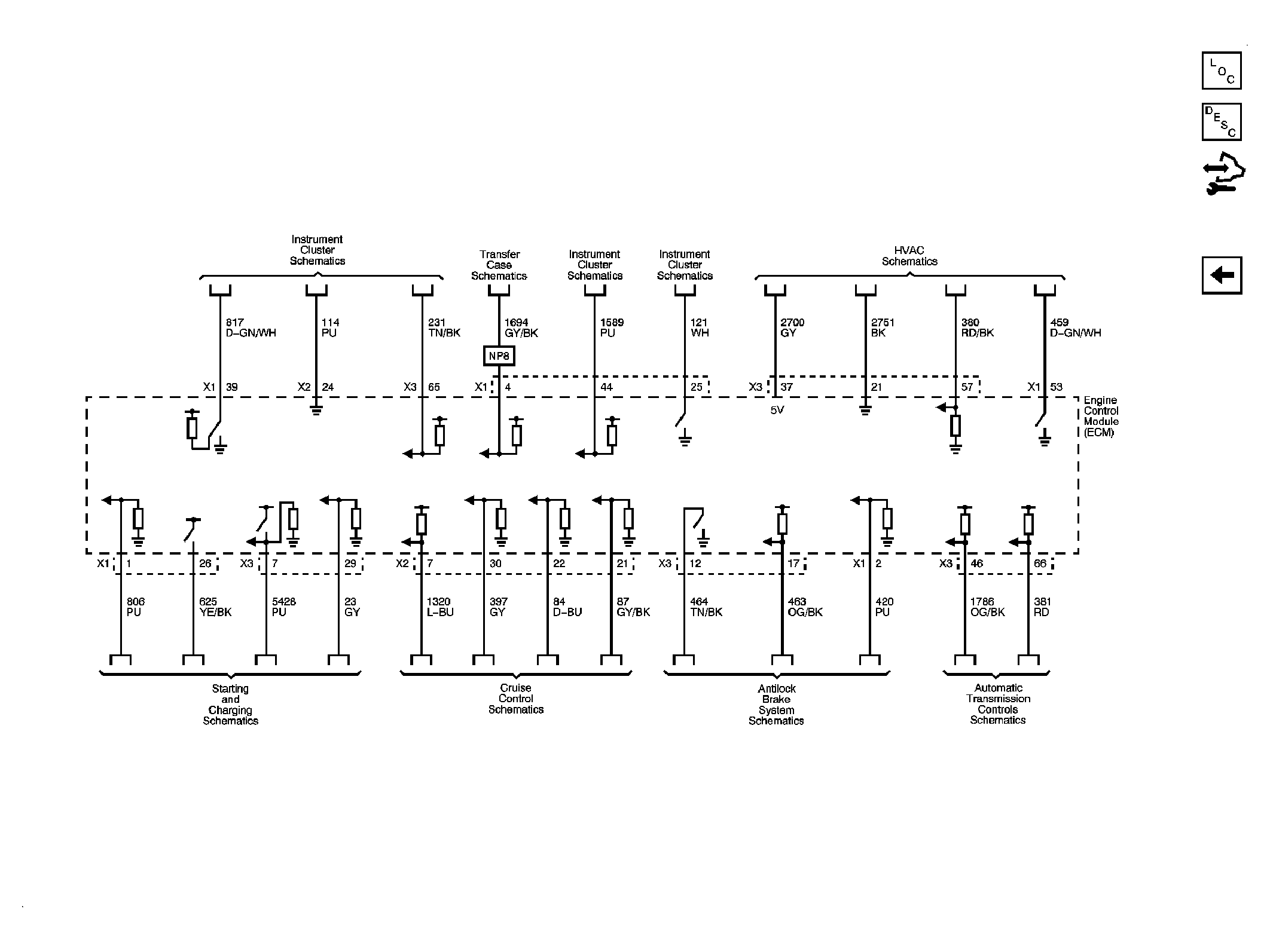

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
