Installation Procedure

    Fig 1: Removing/Installing Shift Lock Actuator
    GM1199544Courtesy of GENERAL MOTORS CORP.
  1. In DRIVE position, depress the shift lock actuator button and realign into the shiftier lever.
  2. Push lever to NEUTRAL.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the top screw through the lever slot and tighten to 1.65 N.m (15 lb in).
  4. Shift lever to LOW.
  5. Install the screw at the rear of the shiftier assembly and tighten to 1.65 N.m (15 lb in).
    6. Fig 2: Disconnecting/Reconnecting Shift Lock Actuator Electrical Connector
    GM1341666Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connector (3).

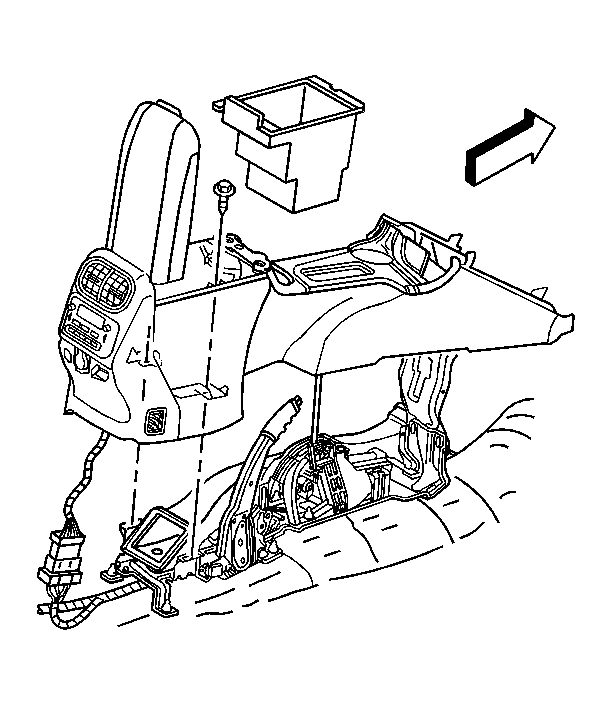

    7. Fig 3: Removing/Installing Center Console Assembly
    GM1234306Courtesy of GENERAL MOTORS CORP.
  7. Verify the shift lock actuator functions properly.
  8. Install the console. Refer to Console Replacement .
