Seat Position Sensor




Component Connector End Views

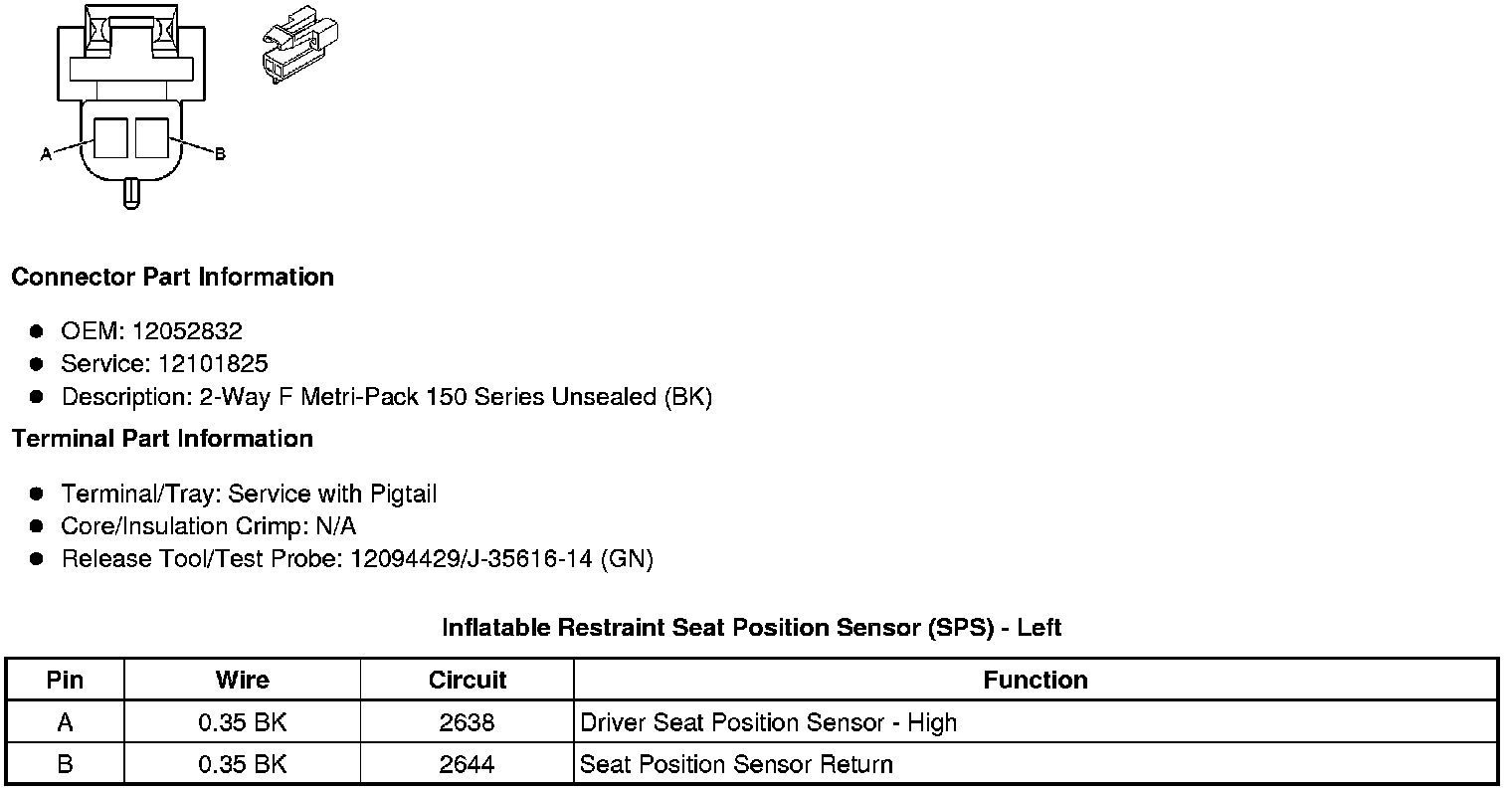

Inflatable Restraint Seat Position Sensor (SPS) - Left

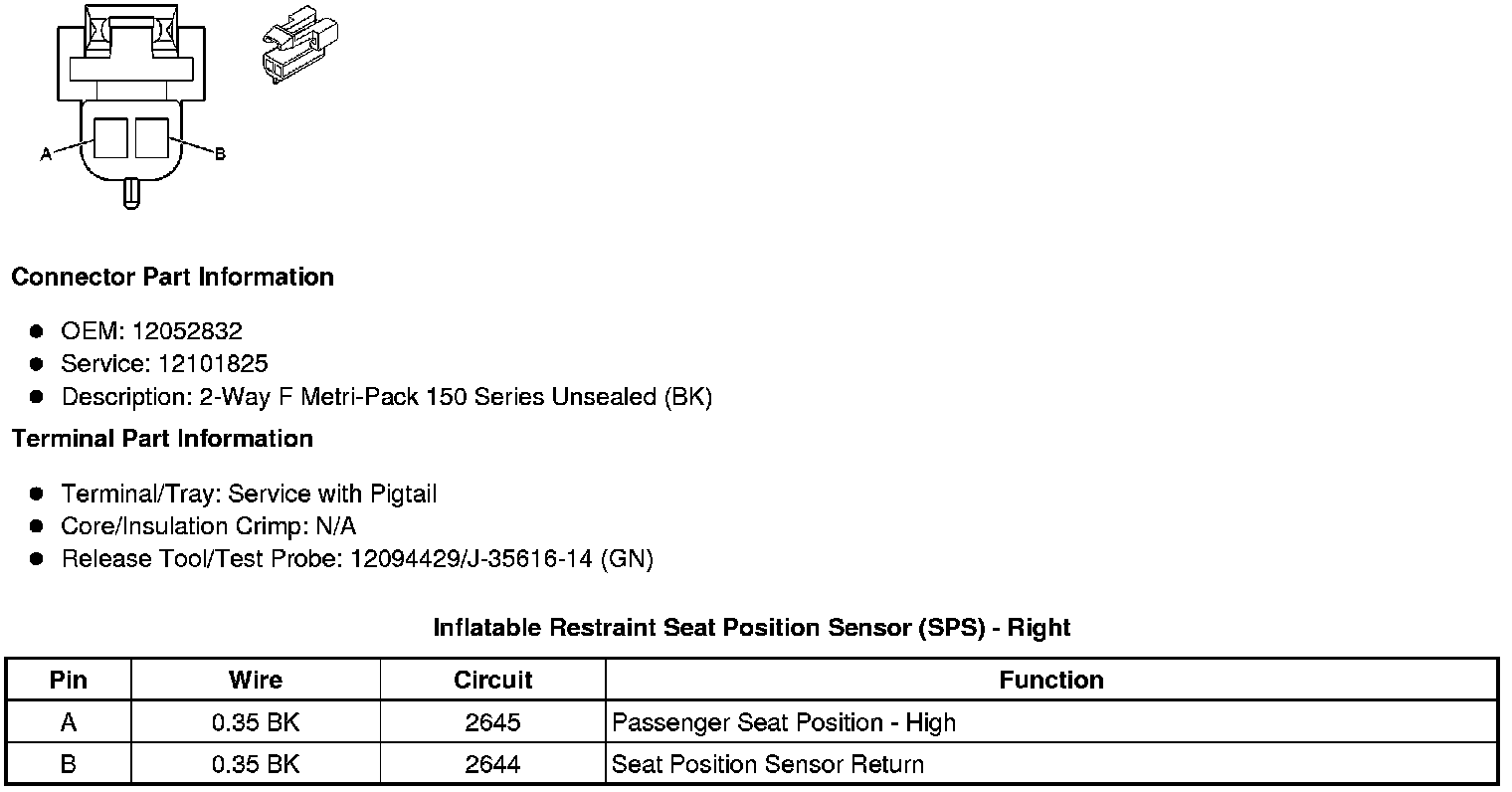

Inflatable Restraint Seat Position Sensor (SPS) - Right
