Body Control Systems




Body Control System Schematics

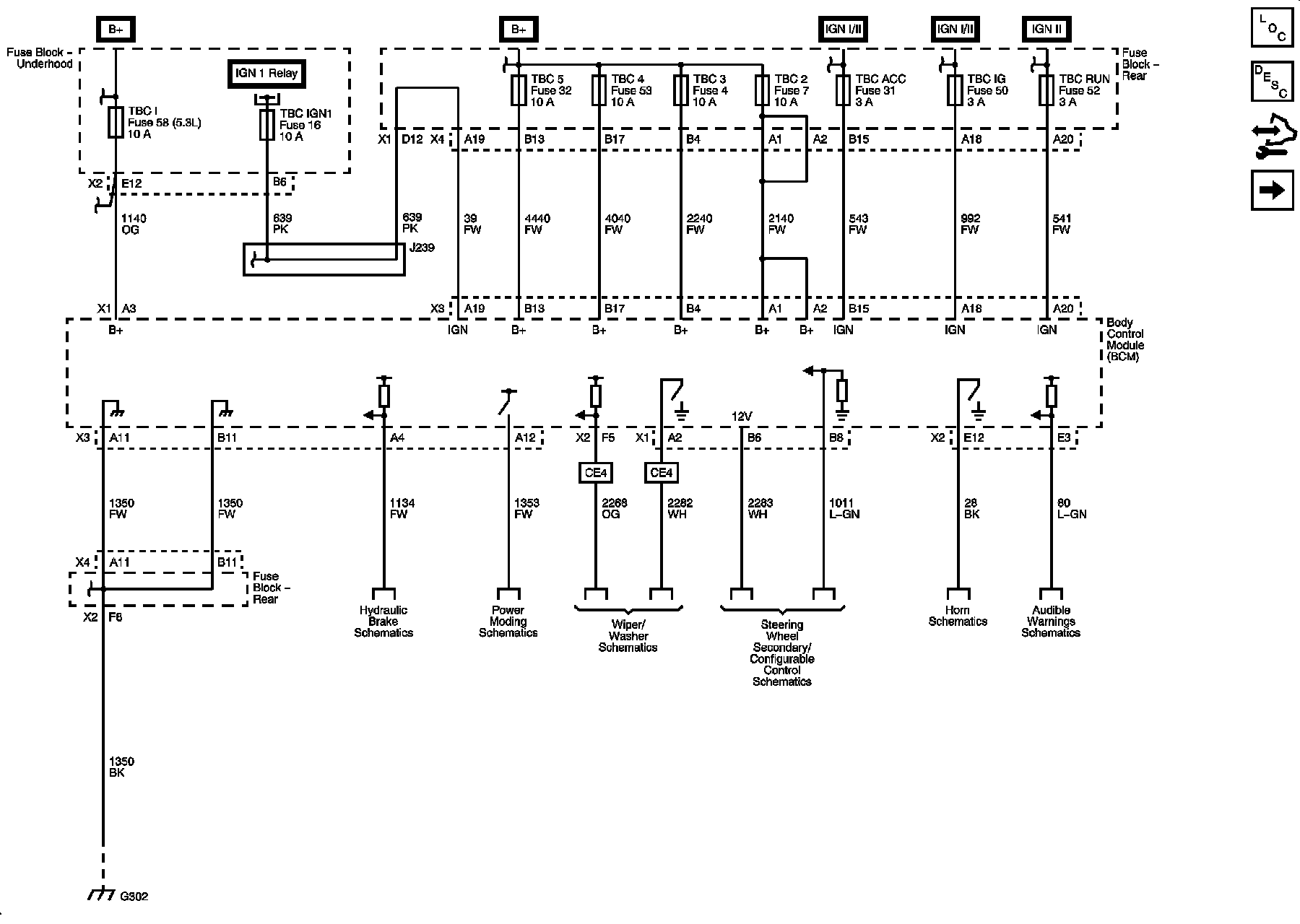

BCM Module Power, Ground, and Controlled/Monitored Subsystem References - 1 of 4





BCM Controlled/Monitored Subsystem References - 2 of 4





BCM Controlled/Monitored Subsystem References - 3 of 4





BCM Controlled/Monitored Subsystem References - 4 of 4
