Rear Fuse Block

Electrical Center Identification Views

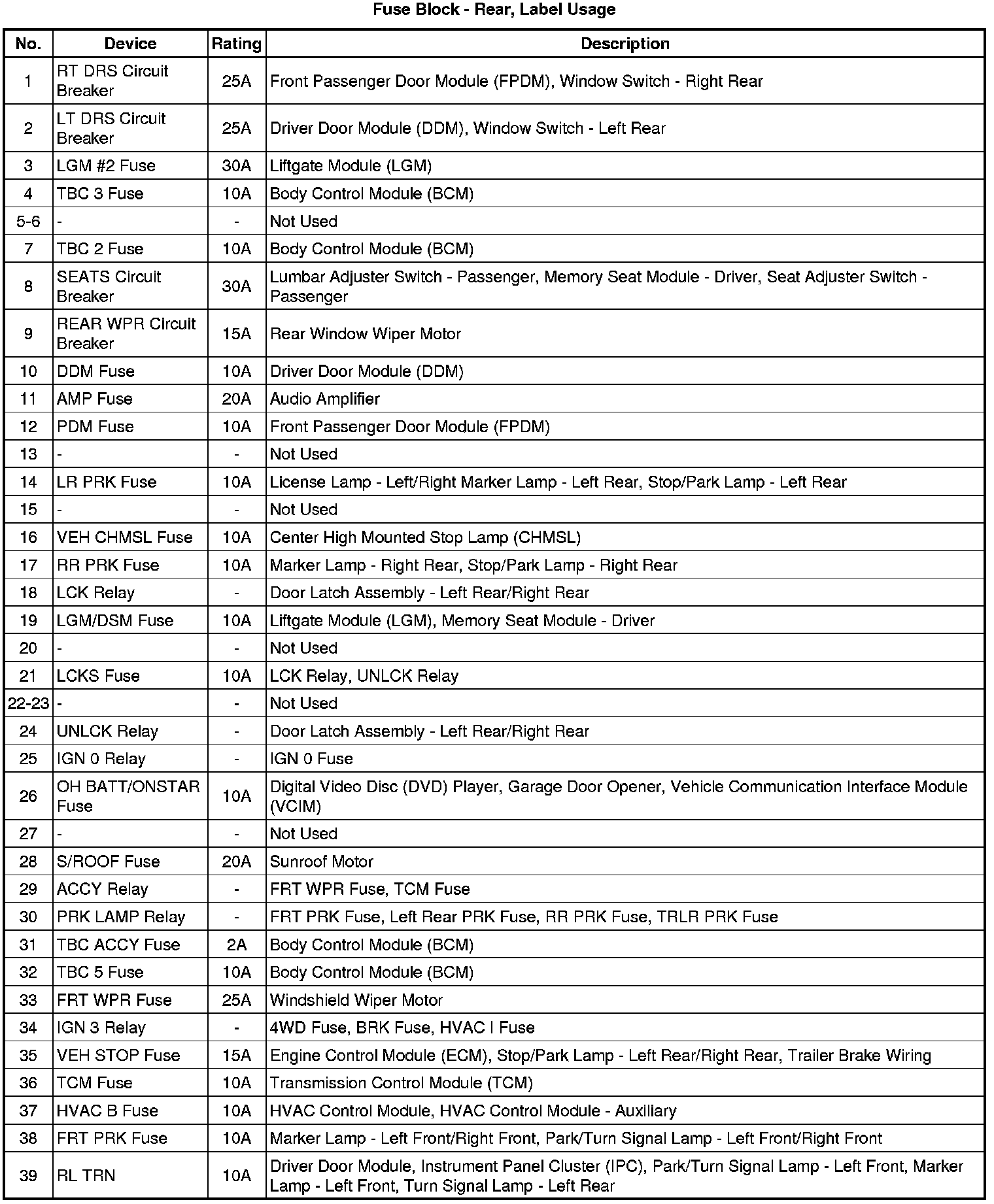

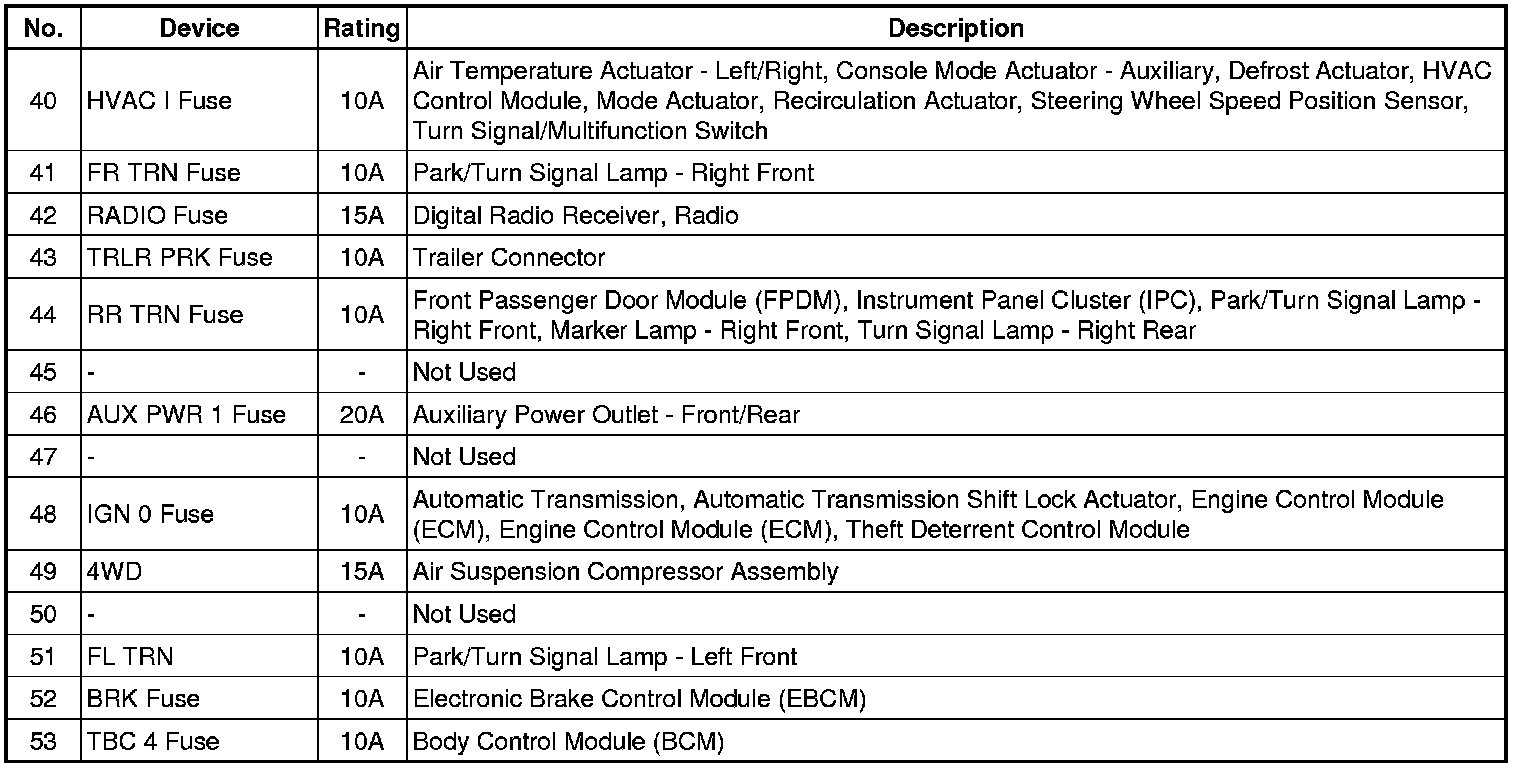

Fuse Block - Rear, Label

Fuse Block - Rear, Top View

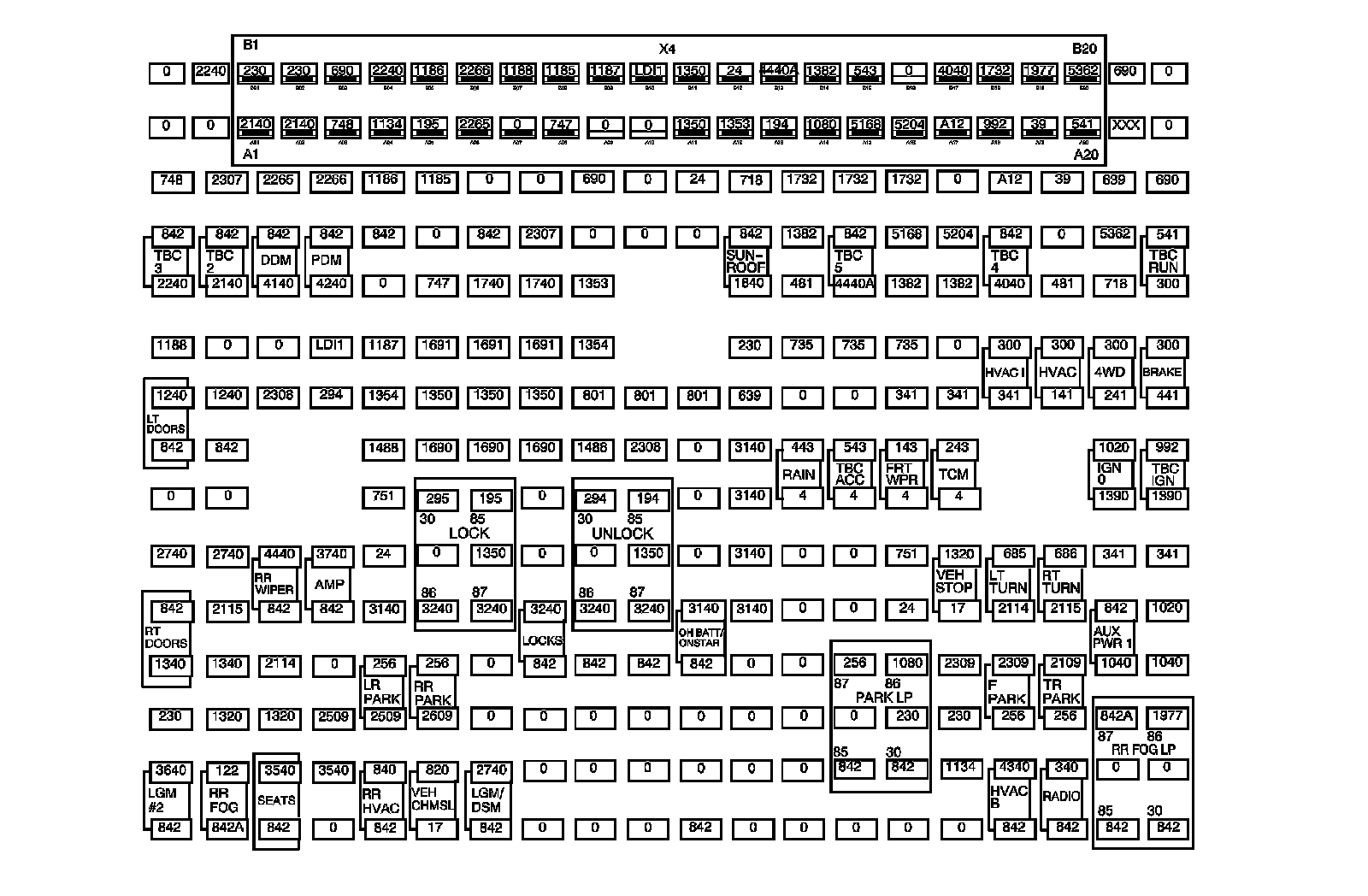

Fuse Block - Rear, Bottom View

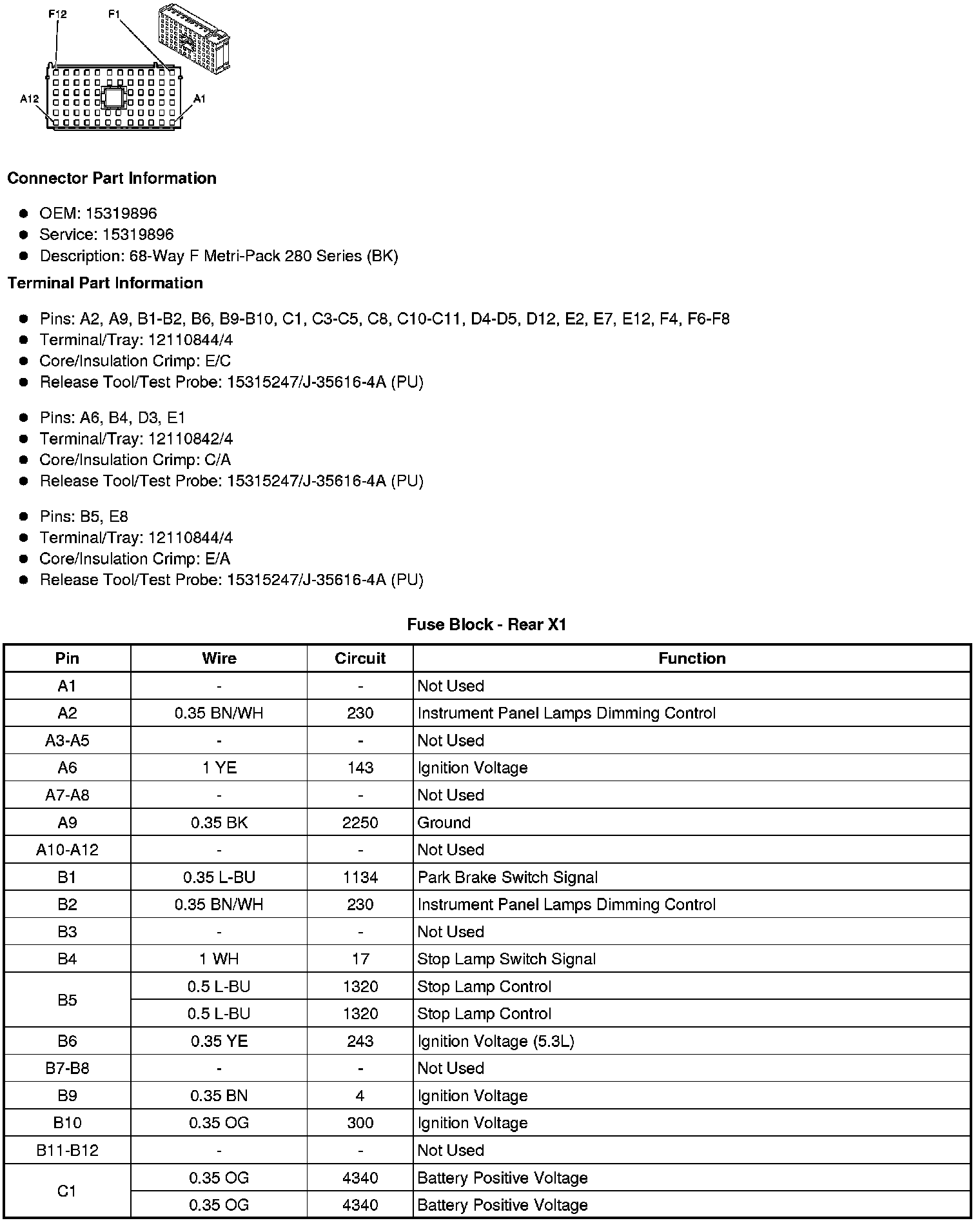

Fuse Block - Rear X1

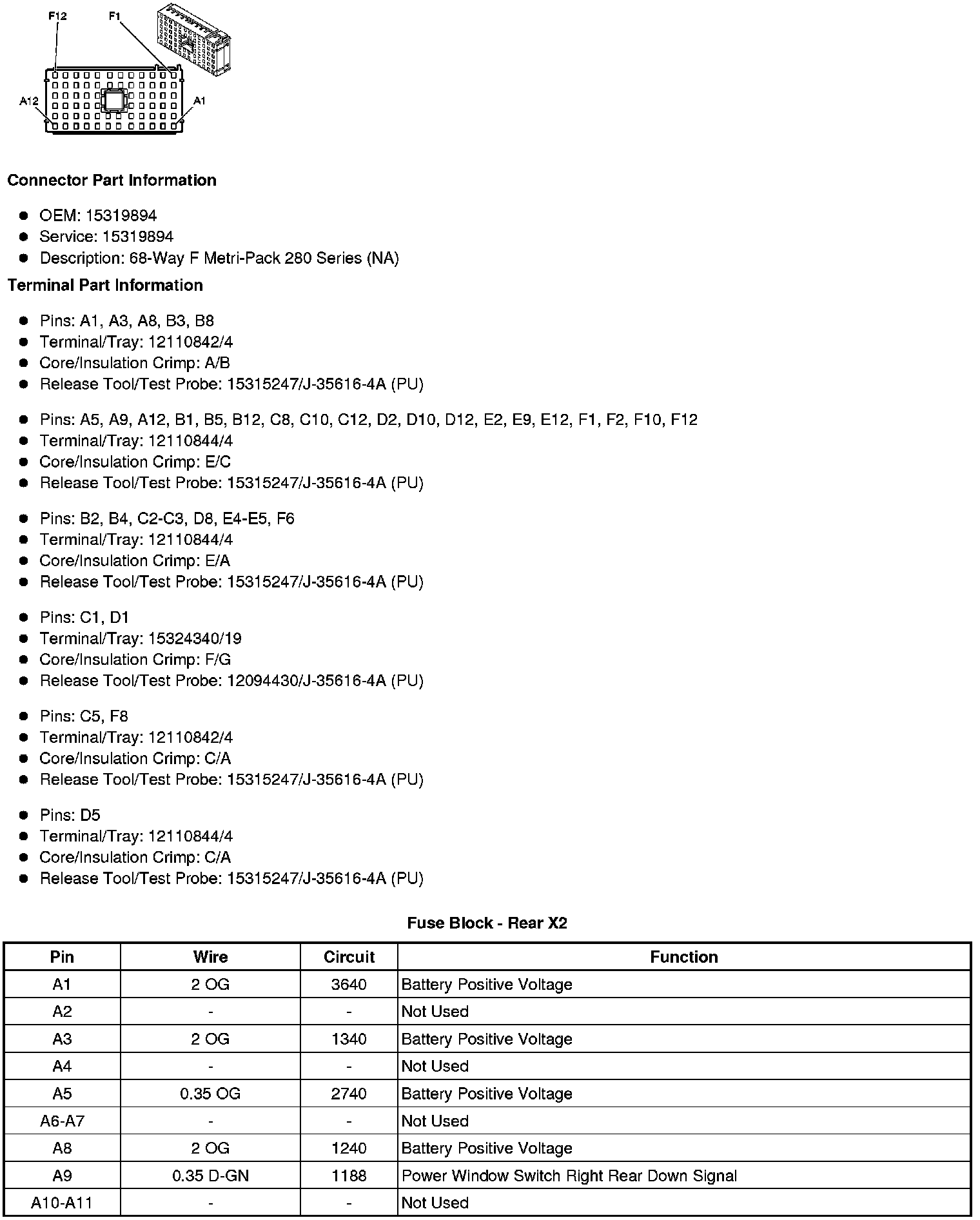

Fuse Block - Rear X2

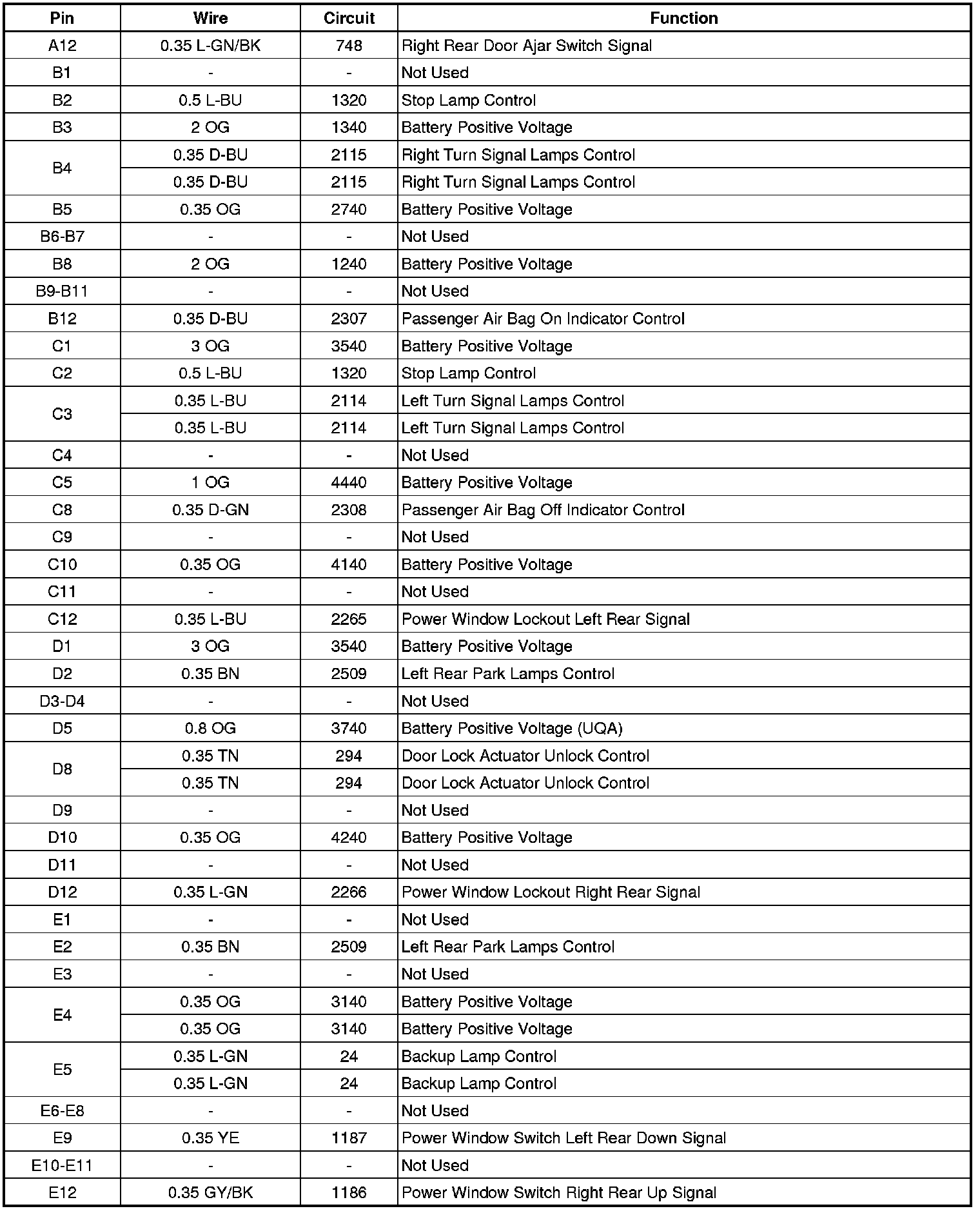

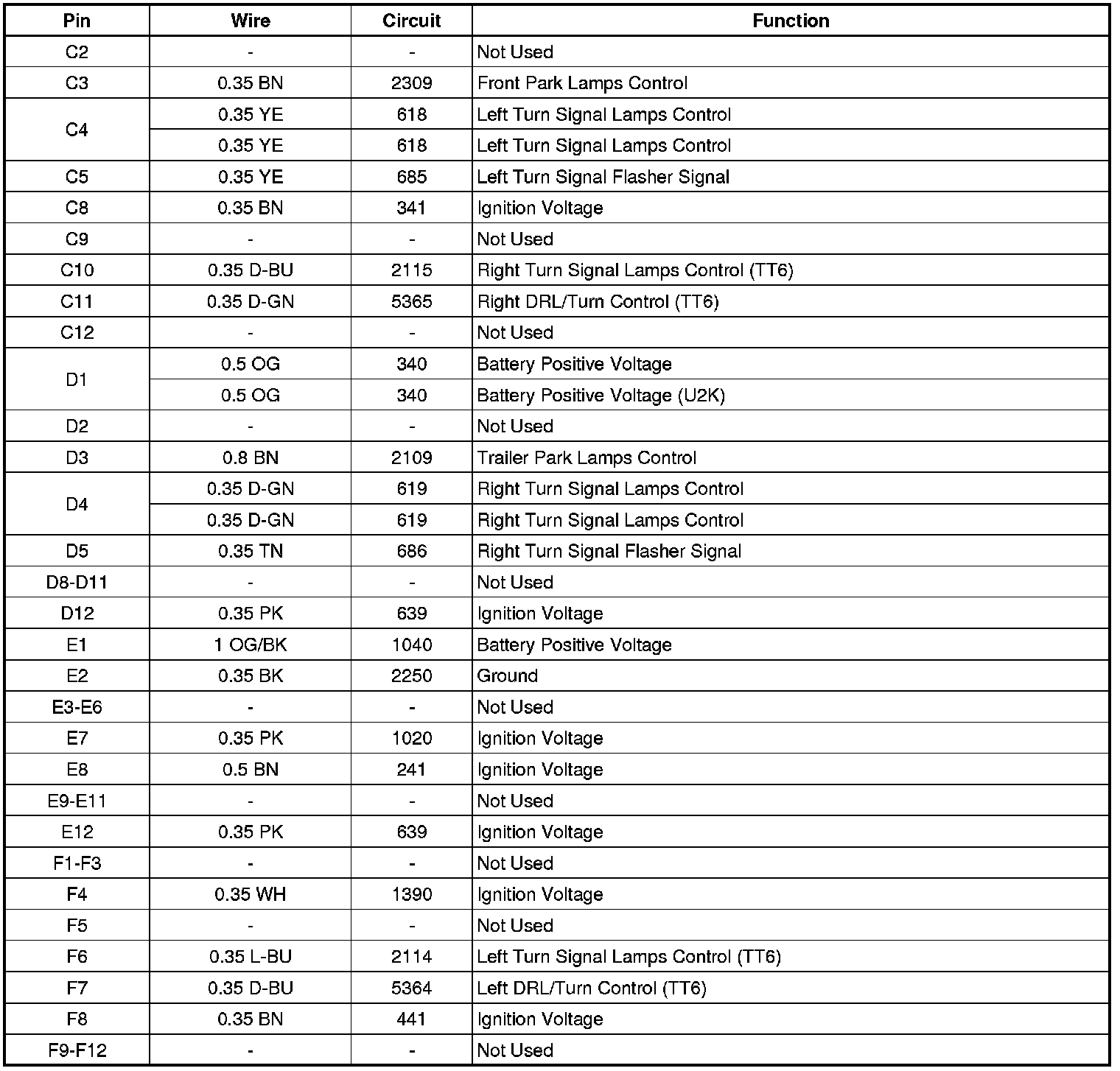

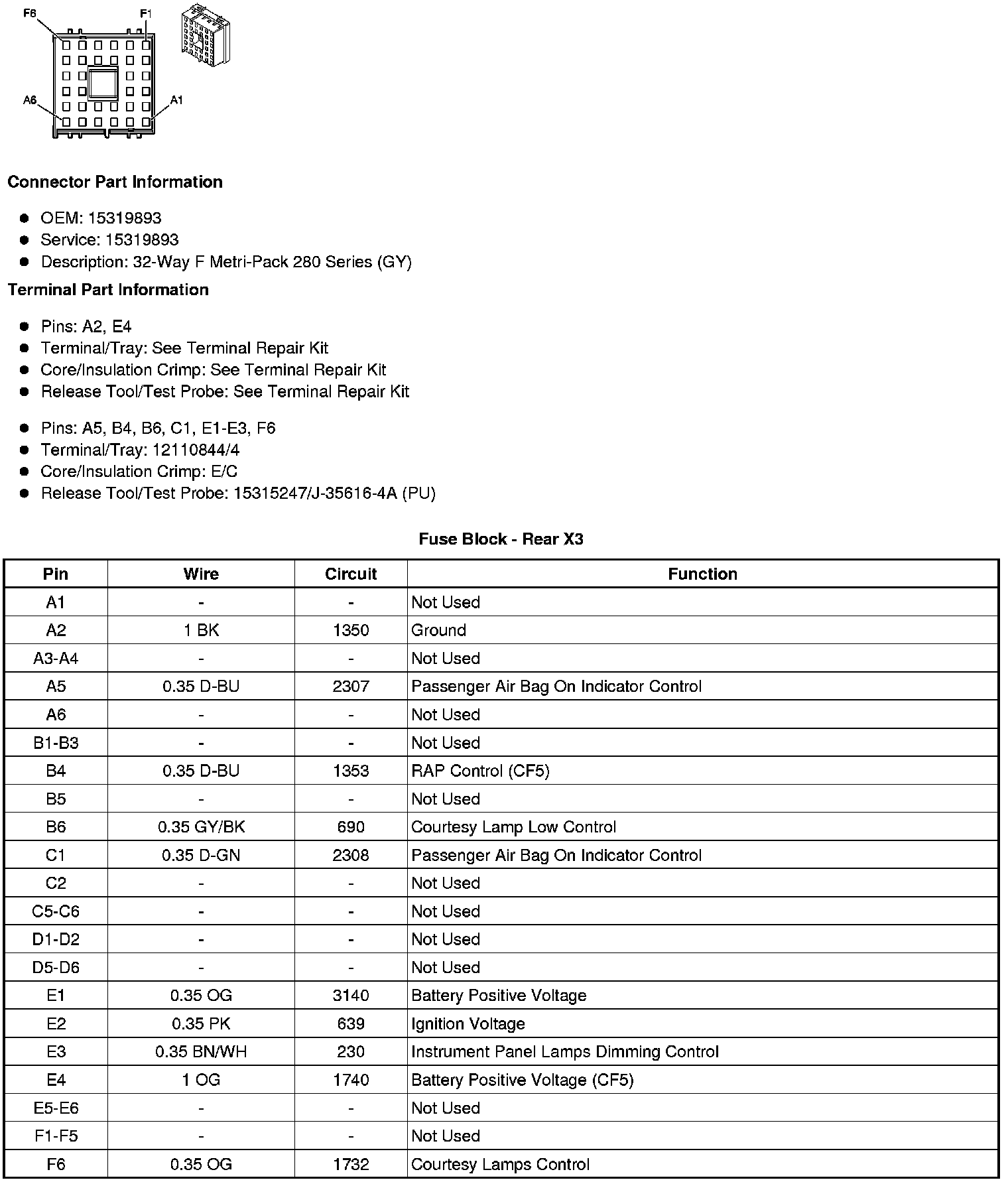

Fuse Block - Rear X3

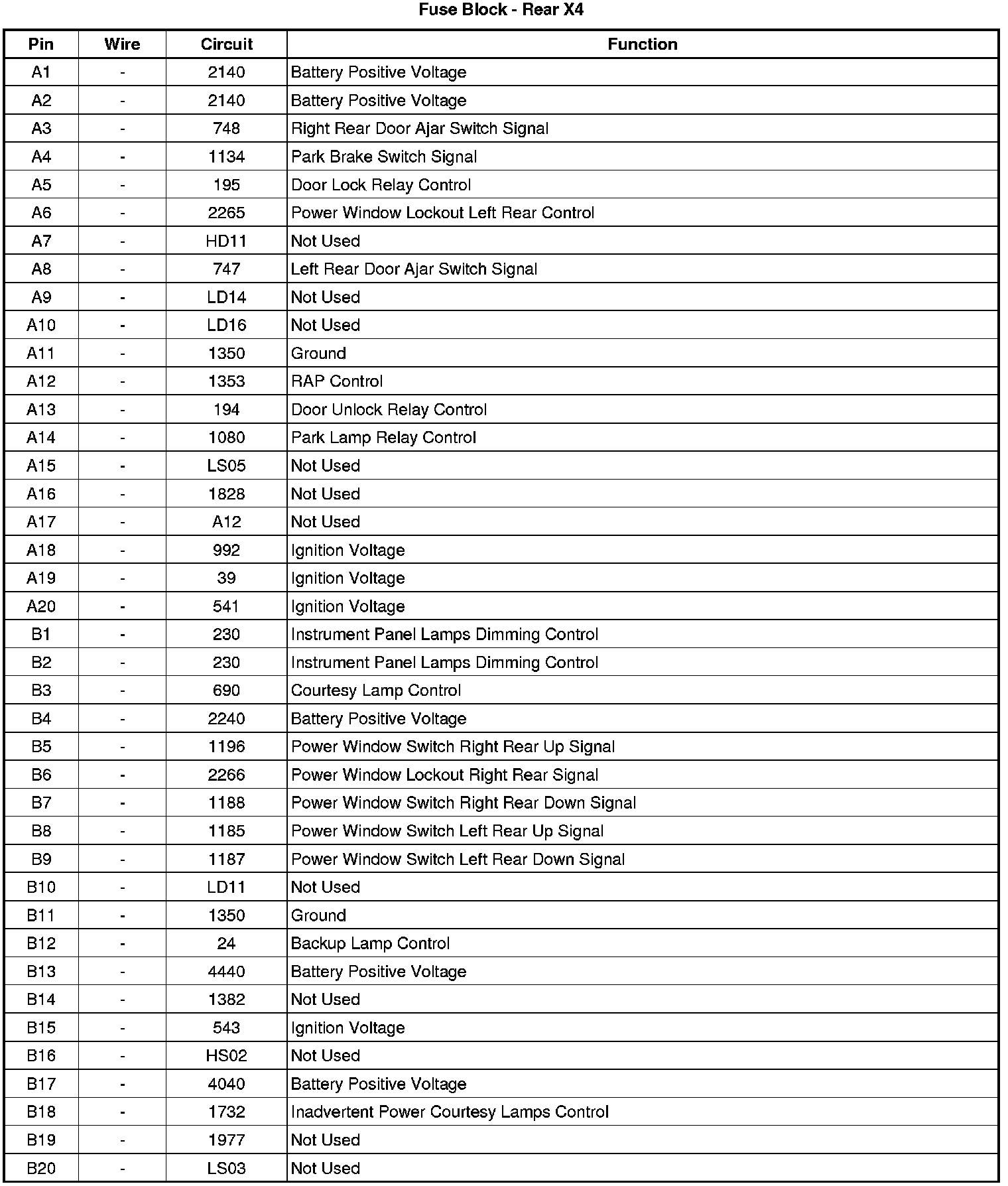

Fuse Block - Rear X4
